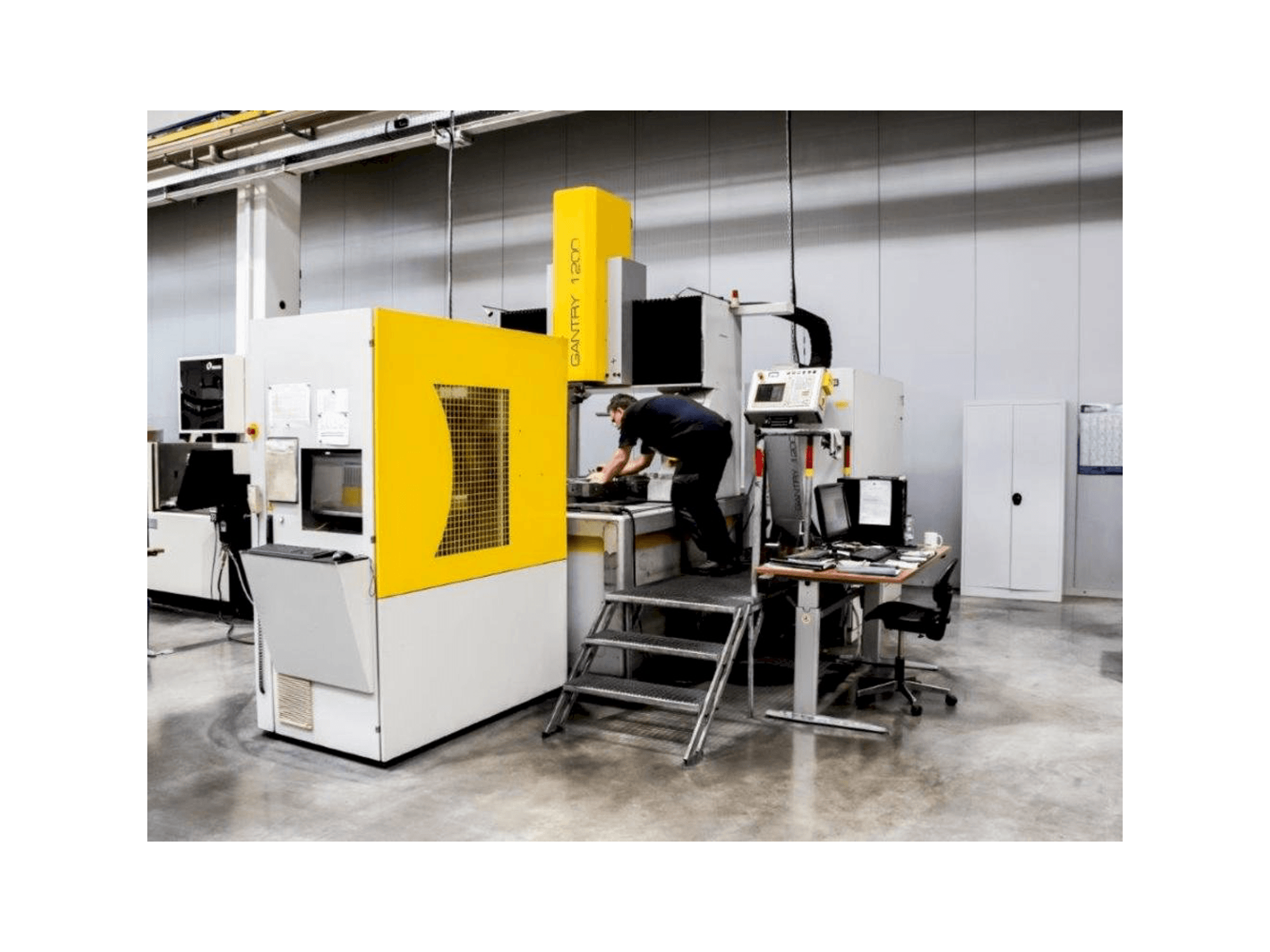

Front view of OPS-INGERSOLL Gantry 1200  machine

OPS INGERSOLL - Gantry 1200DE-EDM-OPS-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This OPS Ingersoll Gantry 1200 erosion machine was built in the year 2006 in Germany. It is equipped with a Mitsubishi - 64 bit CNC control unit and has 4 axis. The machine has a gantry elevation by 250 mm.

Overview

  • brand: OPS INGERSOLL
  • year: 2006
  • MODEL: Gantry 1200
  • application type: EDM
  • Location: Germany
  • machine type: Die-Sinking EDM Machine
  • availability: Sold
  • control unit brand: MITSUBISHI

Technical Information - OPS INGERSOLL Gantry 1200

General Data

  • Measurements width: 2950 mm
  • Measurements depth: 3900 mm
  • Measurements height: 3430 mm
  • Machine weight: 12000 kg

Control Unit

  • Model: 64 bit CNC
  • Brand: MITSUBISHI

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 1510 mm
  • Z-AXIS Movement: 650 mm

Table

  • Outer length: 1640 mm
  • Outer width: 1140 mm
  • Table load: 7500 kg

    Additional Equipment

    • - IMC3 automation 60-fold electrode changer
    • - Accessories: CO2 fire extinguishing system

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Generator output: 70 amps - multi pulse
        • - Traverse paths (x, y, z): 1000 x 1500 x 650 mm (875 x 1350 x 650 mm)
        • - Gantry elevation by 250 mm
        • - Electrode changer: imc-3 60-fold
        • - Work bowl (w x d x h): 1770 x 1270 x 680 mm
        • - Workpiece clamping table (w x d): 1640 x 1140 mm
        • - 60-position changer.
        • - Digital display: 0,001 mm
        • - Changer total load: 150 kg
        • - Atc
      • Qualitative Machine Benefits:
        • - Max. Top load: 400 kg

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
