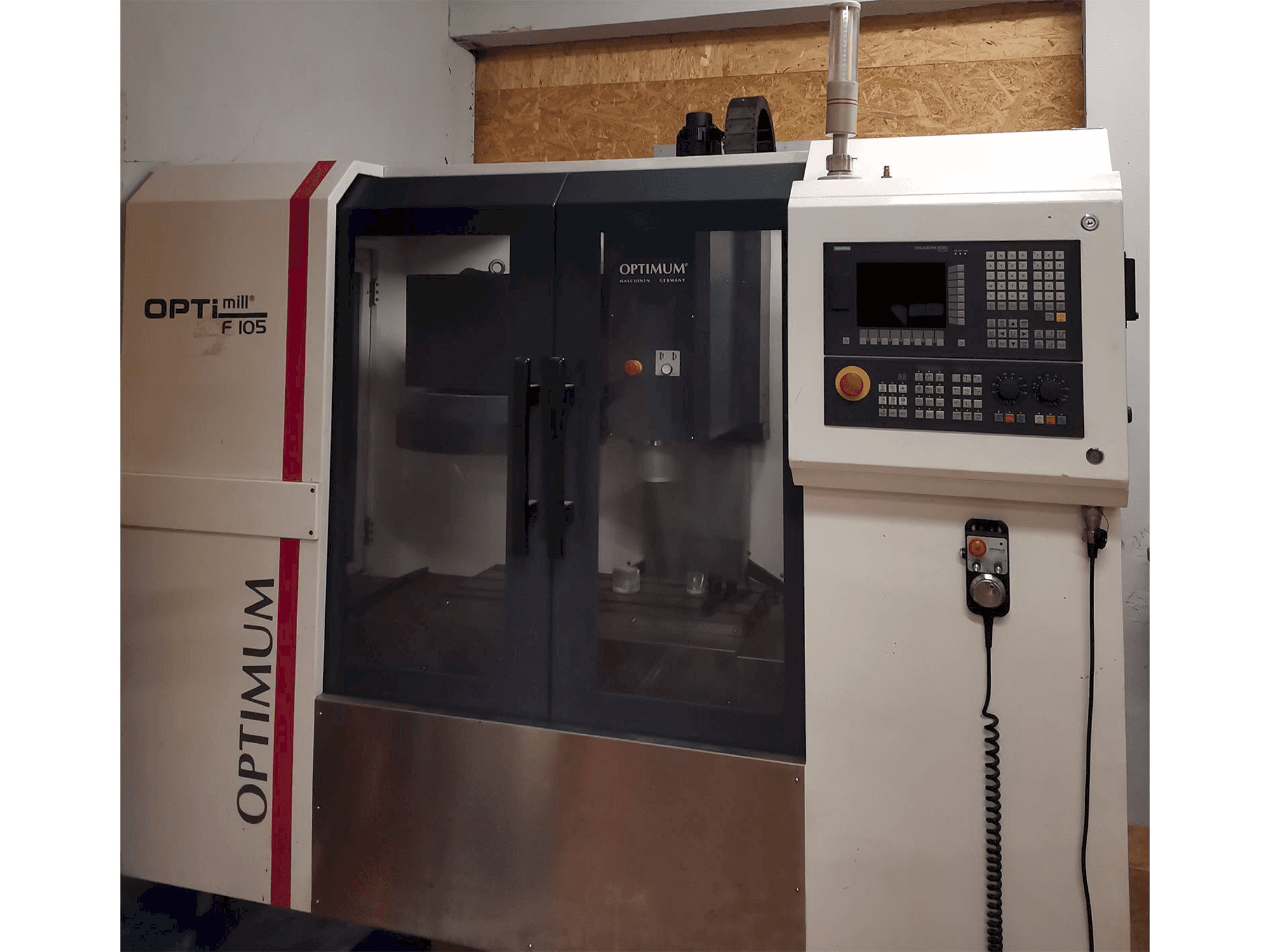

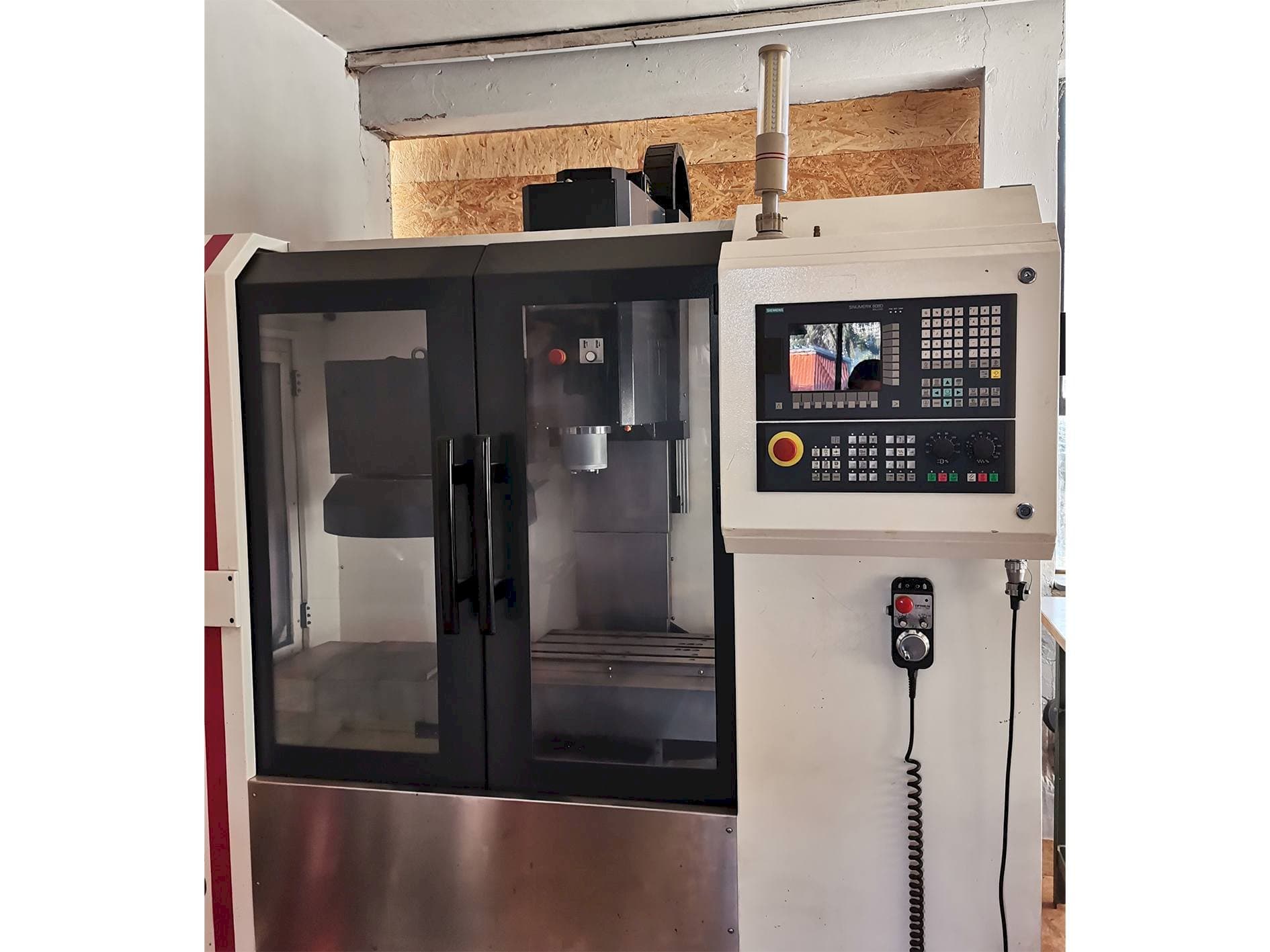

Optimum F105 Milling machine

This Optimum F105 Milling machine was manufactured in 2014 in Germany. This 3 axis machine works with a spindle speed between 10 - 8000 rpm. It is in very good condition.

Overview

brand: Optimum
year: 2014
MODEL: F105
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Optimum F105

Dimensions

Table Length: 800 mm
Table Load: 300 kg
Table Width: 320 mm

Movement

Number of Axes: 3
X-axis Travel: 400 mm
Y-axis Travel: 225 mm
Z-axis Travel: 375 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Speed: 8000 RPM
Taper Size: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits

Power spindle drive s1 operation 5,5 kw
Power spindle drive s6-30 % operation 7,8 kw
Torque s1 operation 35 nm
Torque s6-30 % operation 50 nm
Cooling lubricant pump power 650 w
Tank capacity 120 liters
Connection min. 0,6 (6 bar)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
