➤ Used Optimum L410 For Sale | gindumac.com

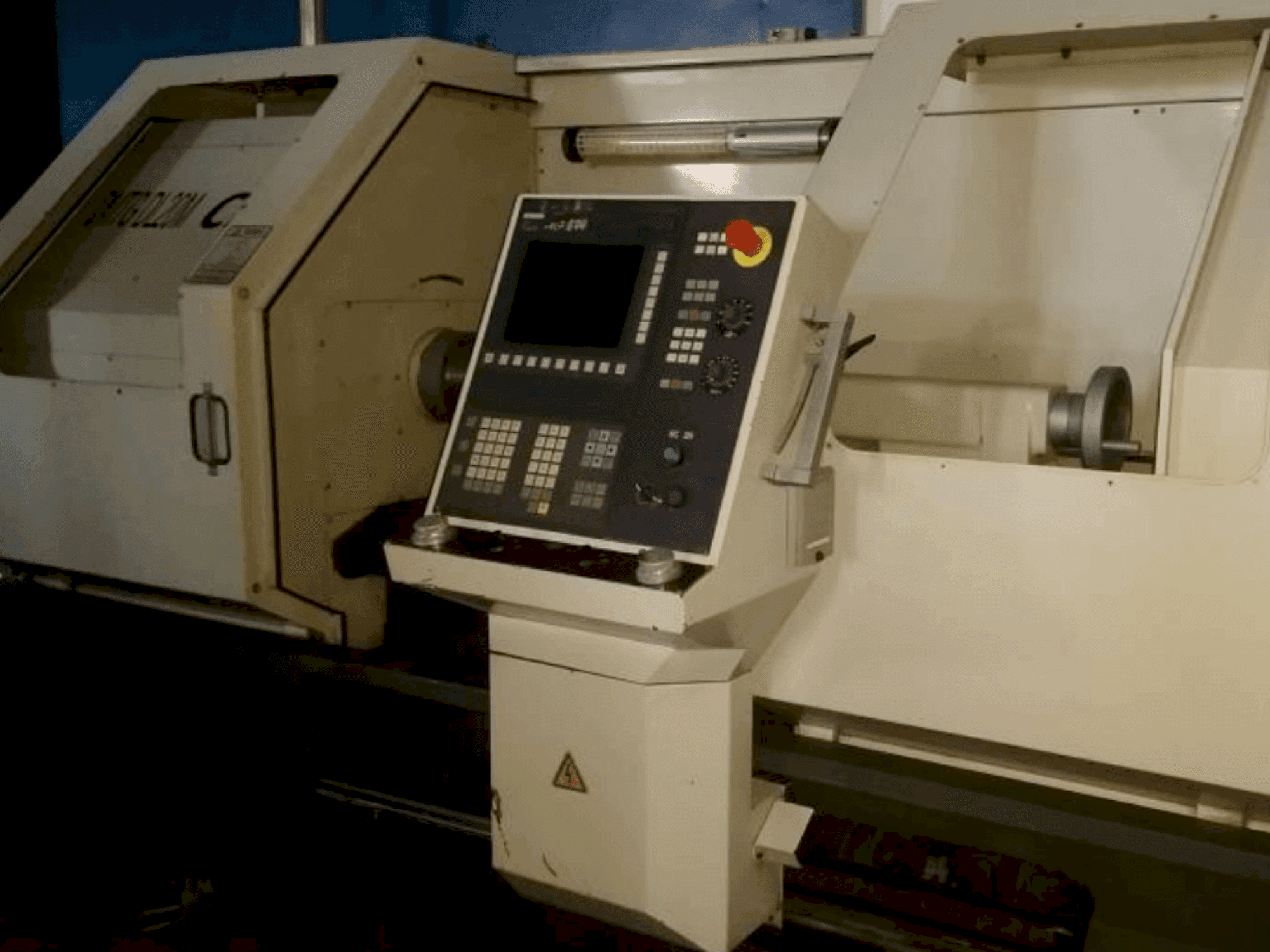

This Optimum L410 was manufactured in 2012. A robust horizontal turning machine featuring a high-performance Siemens main spindle motor and Siemens servo motors for precise control. It includes a 6-tool electric turret and a hydraulic chuck, enhancing operational efficiency. The machine offers a spindle speed up to 4,000 rpm and a rapid traverse rate on the X/Z-axis of 12,000 mm/min. Ideal for detailed and extensive turning tasks. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: Optimum
year: 2012
MODEL: L410
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Siemens

Technical Information - Optimum L410

General Data

Machine weight: 2500 kg

Control Unit

Brand: Siemens

Main drive

Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 9/12 kW
Spindle bore: 58 mm
Tool taper: MK 6

Movement

X-AXIS Feed Force: 8000 mm/min
X-AXIS Rapid traverse: 12000 mm/min
Z-AXIS Movement: 900 mm
Z-AXIS Feed Force: 8000 mm/min
Z-AXIS Rapid traverse: 12000 mm/min

Workpiece

Workpiece drm over bed: Ø 410 mm
Workpiece drm over support: Ø 202 mm

Additional Equipment

- Siemens servo motors
- High-performance Siemens main spindle motor (9/12 kW)
- Two electronic handwheels
- Easily maintainable linear guides
- HIWIN ball screws
- Central lubrication
- Electronically controlled 6-tool turret
- Hydraulic chuck / Conventional chuck

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece length: 1000 mm
- - Easy operation and overview
- - Minimized setup time with electronic handwheels
- - Easy to maintain
- - Total power requirement: 18. 5 kw 400 v ~50 hz
- - Spindle connection: camlock asa a 2 - 6”
- - Tailstock taper: mk 5
- - Tailstock quill travel: 160 mm
- - Spindle quill diameter: 75 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
