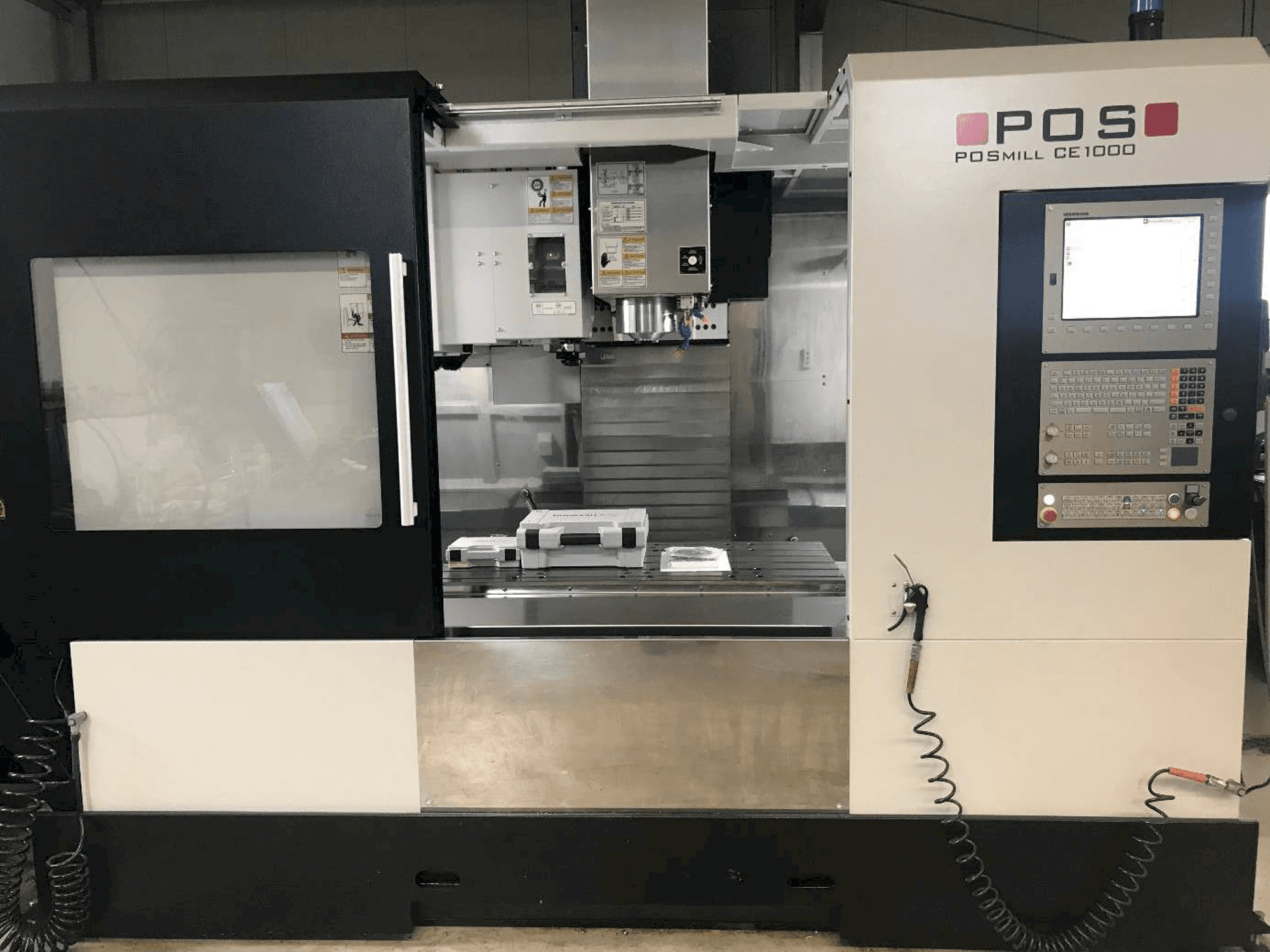

Front view of POSmill CE 1000  machine

POSmill - CE 1000DE-MIL-POS-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This POSmill CE 1000 Milling machine was manufactured in the year 2021 and has around 400 spindle hours. It is equipped with a HEIDENHAIN TNC640 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: POSmill
  • year: 2021
  • MODEL: CE 1000
  • production hours: 400
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - POSmill CE 1000

Control Unit

  • Model: TNC640
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 10000 1/MIN
  • Tool taper: ISO 40 for IKZ
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1060 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 600 mm

Table

  • Outer length: 1200 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - System 20 bar with belt filter
      • - Air through spindle
      • - Large chip conveyor to the left (hinged belt)
      • - Glass scales incl. Sealing air from heidenhain
      • - Tool measuring system hexagon wireless
      • - Workpiece measuring system hexagon optical
      • - Incl. Accessories such as vice and sk40 holders.
      • - Active control cabinet cooler air
      • - Network connection
      • - Usb connection-
    • Qualitative Machine Benefits:
      • - Absolutely well-maintained
      • - As new condition.
      • - Spindle cooler controlled
      • - Side windows left and right with hinges
      • - Pump for coolant at the head by m-functions
      • - Pump for chip wash-off device by m-functions
      • - Chip wash-off device, control cabinet preparation for 4th and 5th axis (performance-related
      • - Water gun, air gun
      • - Air at the spindle, coolant at the spindle
      • - Operating status light, oil separator electromechanical

    Extra information

    • - Machines is prepared for the connection of a 4th and 5th axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
