POSmill - H 500 UDE-MIL-POS-2017-00003

Name: POSmill H 500 U
Brand: POSmill
SKU: DE-MIL-POS-2017-00003
Price: 142000 EUR
Availability: InStock

142,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used POSmill H 500 U For Sale | gindumac.com

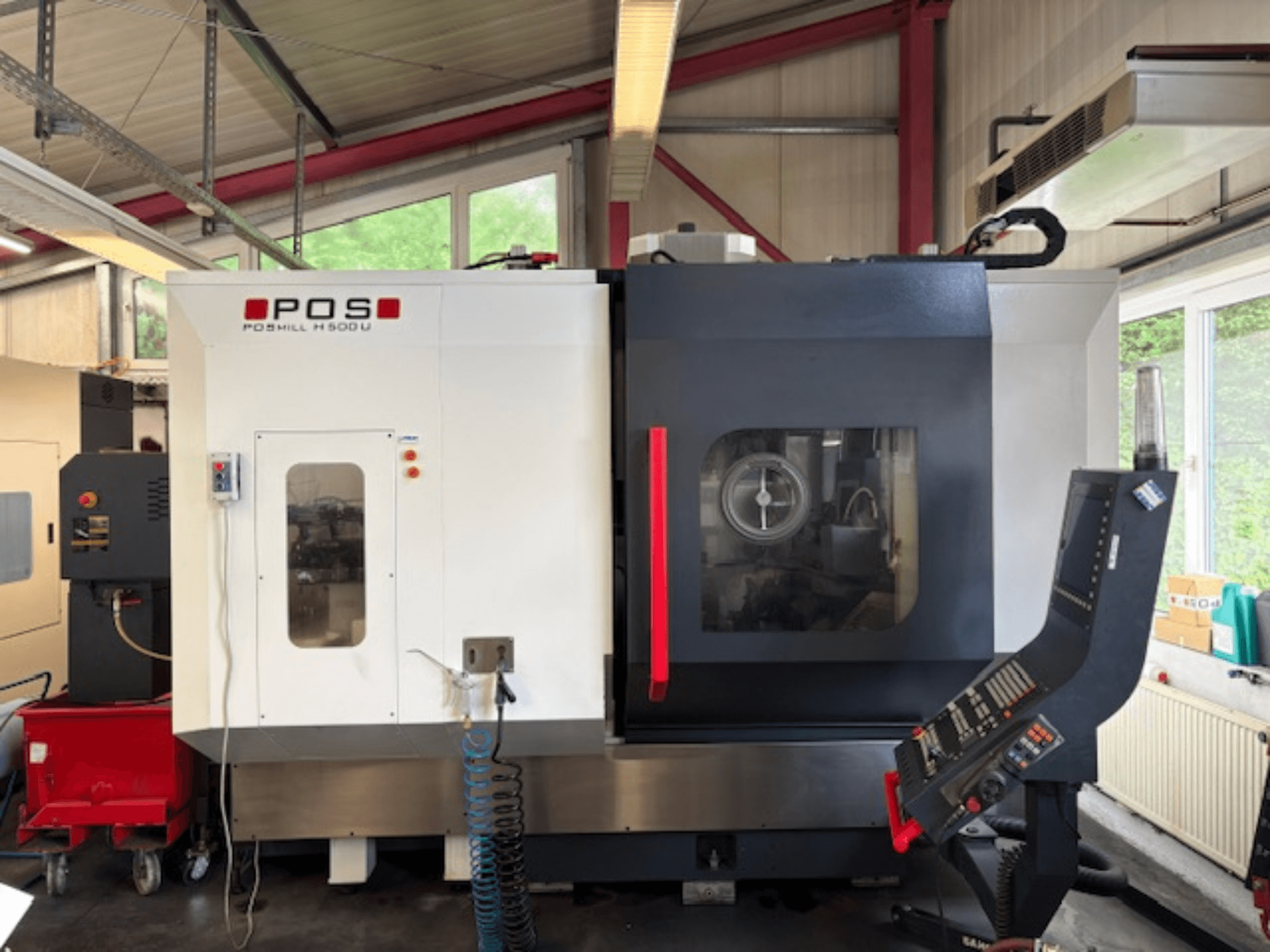

This 5s POSmill H 500 U was manufactured in 2017. It features a Heidenhain TNC 530 control, a 60-station tool magazine, and a KESSLER rotary table with a diameter of 500 mm. The machine includes advanced systems such as automatic coolant level monitoring and a BLUM laser tool measuring system. Consider the opportunity to buy this POSmill H 500 U vertical machining centre. Contact us for further details.

Overview

brand: POSmill
year: 2017
MODEL: H 500 U
production hours: 6929
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H 500 U

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 530

Movement

Number of Axes: 5
X-axis Travel: 750 mm
Y-axis Travel: 650 mm
Z-axis Travel: 550 mm

Technical Specification

Spindle Speed: 14000 RPM
Taper Size: HSK 63
Tool Stations: 60

Additional Information

Tool magazine: 60-station, HSK-A63
Rotary table: KESSLER rotary table, Ø 500 mm
Spindle air blast: Air through the spindle
Internal coolant supply: 20 bar, with belt filter unit
Coolant system: Automatic coolant level monitoring
Media supply: 3-channel media supply at table center
Handwheel: Mobile electronic handwheel
Tool measurement: BLUM laser tool measuring system
Workpiece measurement: Infrared workpiece probing (3D touch probe); workpiece measuring preparation included
Viewing: Rotation viewing window included
Collision monitoring: POS DCM collision monitoring module
Condition: Top condition
Hours: 6,929
Accessories note: Without tool holders and without quick clamping system

Additional equipment

Oil mist separator: Electromechanical
Hydraulic unit: Hydraulic aggregate, M-function controlled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
