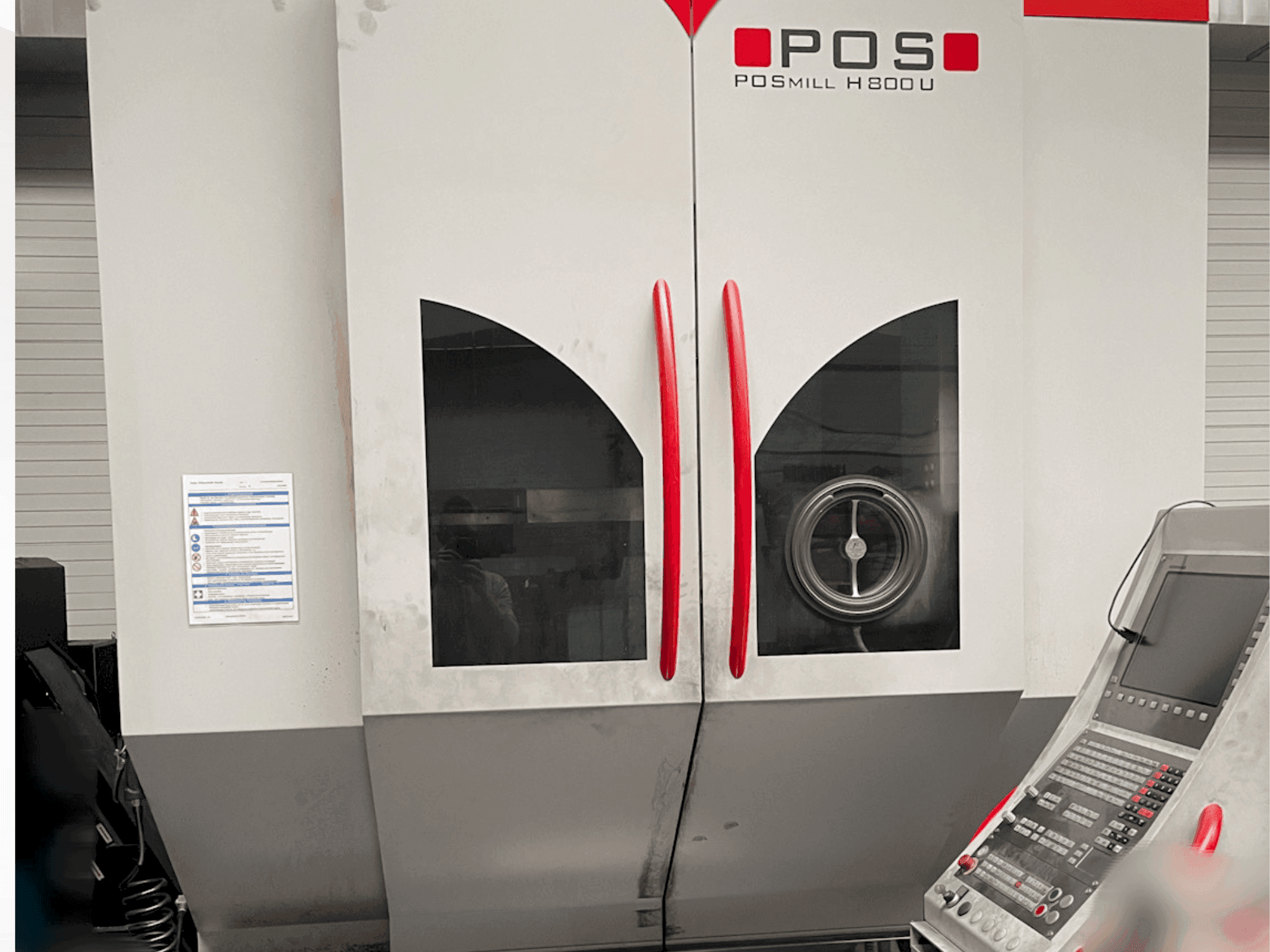

Front view of POSmill H800U  machine

POSmill H800U

POSmill - H800U

2018

200,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This POS H800U Universal Machining Centre was manufactured in 2018 in Germany. It has 5 axis (X = 670, Y = 600 mm, Z = 820 mm / Swivel range -100 to +120 degrees, Rotary table 360 degrees endless) and comes with a HSK-A63 spindle with 18,000 rpm. The machine is operated by a iTNC530 HEIDENHAIN control and is equipped with a Heidenhain rotary and linear measuring system X,Y,Z. As extras it features air through spindle, internal coolant supply 20 bar with belt filter unit, a KESSLER table with diameter 800 mm, tool measurement with BLUM laser and operation mode 4. See tech specs overview as PDF (DE) attached.

Overview

  • brand: POSmill
  • year: 2018
  • MODEL: H800U
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-POS-2018-00001

Technical Information

Control Unit

  • Brand: Heidenhain
  • Model: iTNC530

Main drive

  • Spindle speed range: 18000 1/MIN
  • Tool taper: HSK-A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 670 MM
  • Y-AXIS Movement: 600 MM
  • Z-AXIS Movement: 820 MM

Media

  • Internal cooling: Yes

    Additional Equipment

    • - Heidenhain rotary measuring system
    • - Heidenhain linear measuring system X,Y,Z

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table clamping surface: diameter 800 mm
        • - Swivel range -100 to +120 degrees
        • - Rotary table: 360 degrees endless
        • - 96-position tool changer
        • - Air through the spindle
        • - Internal coolant supply 20 bar with belt filter unit
        • - Kessler table diameter 800 mm
        • - Preparation for workpiece measurement
        • - Infrared workpiece measurement - 3d - probe
        • - Tool measurement with blum laser
      • Qualitative Machine Benefits:
        • - Operating mode 4

      Extra information

      • - Rotation viewing window // POS DCM collision module

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
