- ➤ Used POSmill H800U For Sale | gindumac.com

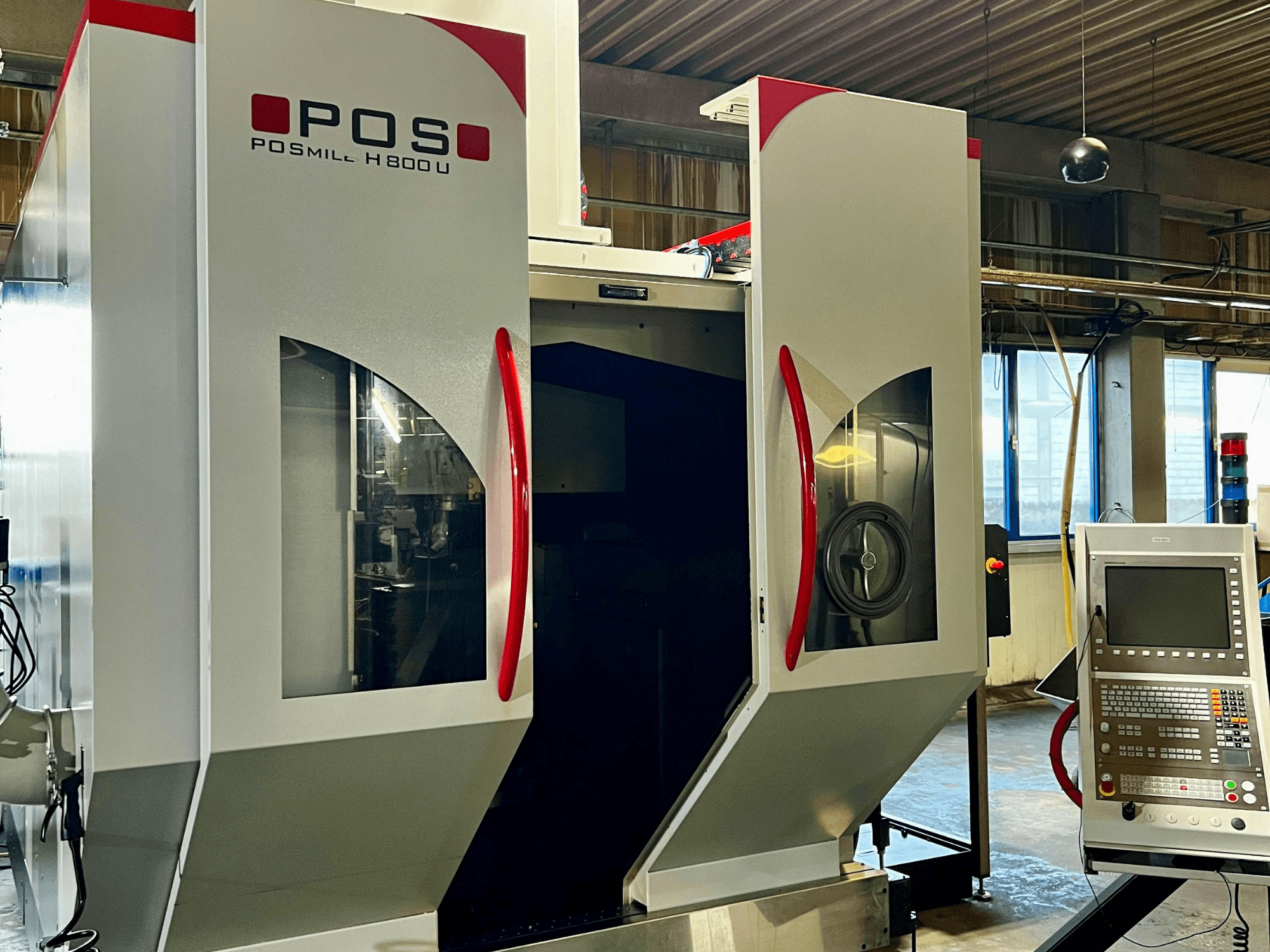

This 5-axis POSmill H800U was manufactured in 2021. It features an X-axis travel of 670 mm, Y-axis travel of 820 mm, and Z-axis travel of 600 mm. The machine is equipped with a Heidenhain TNC 640 control unit and has a maximum spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill H800U universal machining centre we have for sale. Contact us for further details.
Overview
- brand: POSmill
- year: 2021
- MODEL: H800U
- production hours: 11514
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill H800U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Weight: 20000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 670 mm
- Y-axis Travel: 820 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
- Coolant Supply: 40 bar
- Nominal Power: 90 kVA
- Input Voltage: 400 V, 50 Hz (3-Phase)
- Full Load Current: 125 A
- Max. Current Load: 200 A
- Short-Circuit Strength: 25 kA
- Included Equipment: Documentation/Manual, Chip Conveyor, Coolant System & Filtration Unit
- Condition: Very good, fully functional; completely inspected by manufacturer at the end of 2025 (receipts available)
- Spindle Hours: 11,514 h
- Machine Power-On Hours: 20,954 h
- Control Power-On Hours: 22,231 h
- Usage History: Exclusively soft-annealed tool steels (no hard or dry machining)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
