- Rambaudi RC 270 Vertical Machining center

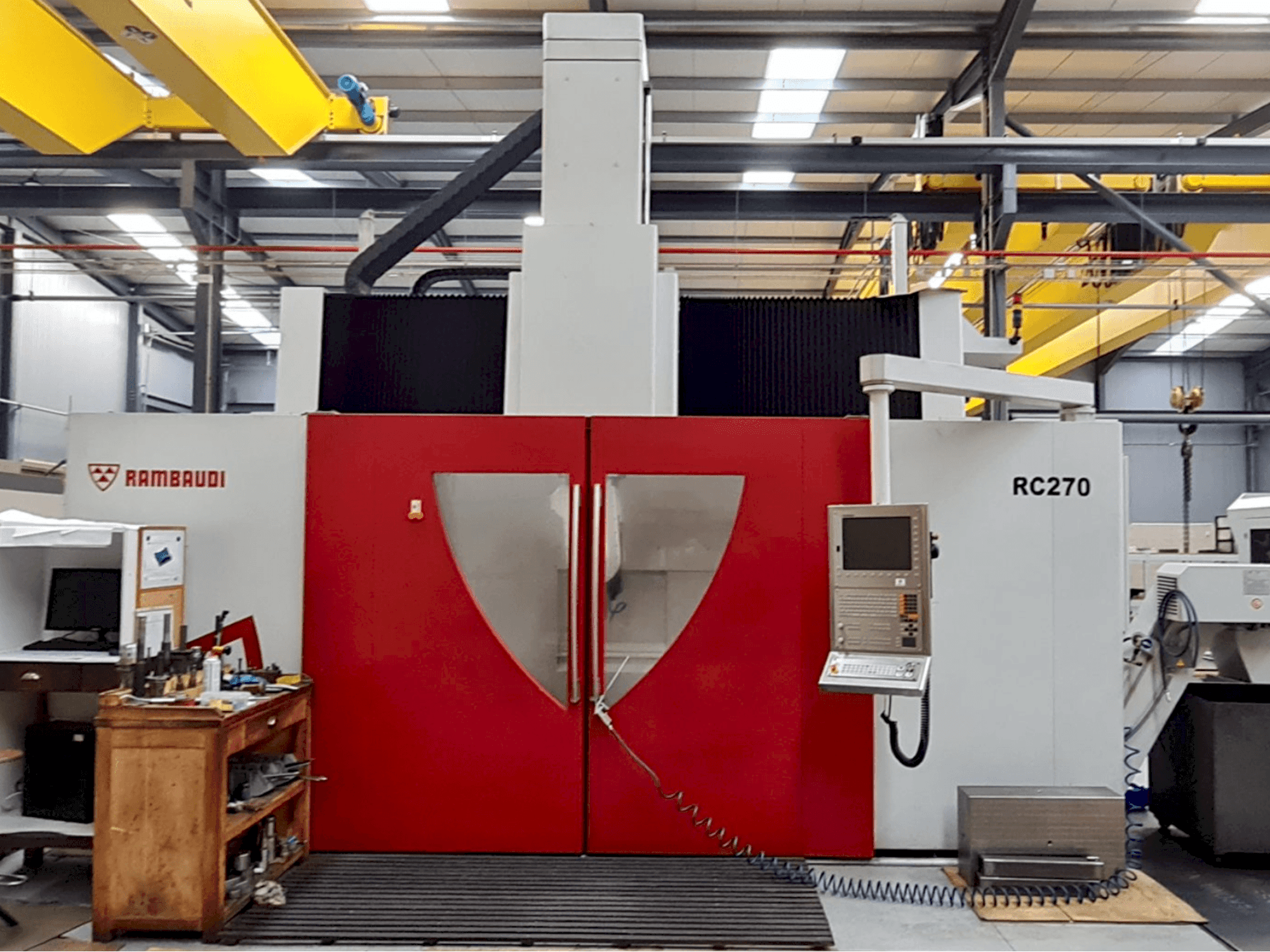

This Rambaudi RC 270 Vertical Machining center was manufactured in the year 2014. It is equipped with a HEIDENHAIN iTNC 530 HSCI control unit and has 5 axis. The spindle speed is at 24000 rpm and runs with a HSK-A63 tool taper. The machine has operated 38428 power on hours and 23655 cutting hours. It stands out for its movable crossbeam which makes the machining centre suitable for high-speed machining with 5 axes. See photo and video gallery for more impressions. Extract of original tech specs (EN) attached as PDF below.
Overview
- brand: Rambaudi
- year: 2014
- MODEL: RC 270
- production hours: 23655
- application type: Milling
- Location: Portugal
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - Rambaudi RC 270
Control Unit
- Brand: Heidenhain
- Model: iTNC530 HSCI
Main drive
- Spindle speed range: 24000 rpm 1/MIN
- Tool taper: HSK-A63
- Number of axis: 5
Movement
- X-AXIS Movement: 2700 mm
- Y-AXIS Movement: 2200 mm
- Z-AXIS Movement: 1250 mm
Additional Information
- Technical Machine Benefits:
- - X and x1 = 2200 mm // speed: 40 m/1' // longitudinal translation of the crossbeam on 2 columns
- - Y = 2700 mm // speed: 40 m/1' // transversal translation of the ram holder cross saddle on the crossbeam
- - Z = 1250 mm // speed: 40 m/1' // vertical translation of th eram on the cross saddle
- - C continous = 400 (+/- 200 °) // rotation of the head around the ram vertical axis
- - A continous = 230 ° (+ 120 °, -110 °) // rotation of the electrospindle support inside the head fork
- - Precision of linear machine axes (x, x1, y, z): p = 0. 015 mm / transducer optical line
- - Precision of polar machine axes (c,a): 15 arc sec - repeatability 10 arc sec / transducer encoder
- - Torque: c, a continous = 1000 nm // c, a braked = 4000 nm
- Qualitative Machine Benefits:
- - Numeric control milling centre with movable crossbeam, suitable for high-speed machining with 5 axes
- - Two lateral columns on which crossbeam runs
- - A crossbeam that supports the ram holder cross saddle and slide on the columns
- - A ram that slides vertically inside the cross saddle
- - A head fixed to the lower part of the ram
- - A working table in the center of the columns, with the following characteristics: 2500 x 2000 mm // 10000 kg/m2 // 300 mm thickness of cast iron table // 8 t-slots - width 28mm
- - The machine is equipped with a 2-axis glob 89 g milling head (c and a continous)
- - Inside of the head forks is housed the spindle with 24000 rpm, hsk-a 63 tool taper
- - 38428 machine on hours // 23655 cutting hours
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
