RÖDERS RXP 801

RÖDERS - RXP 801ES-MIL-ROD-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

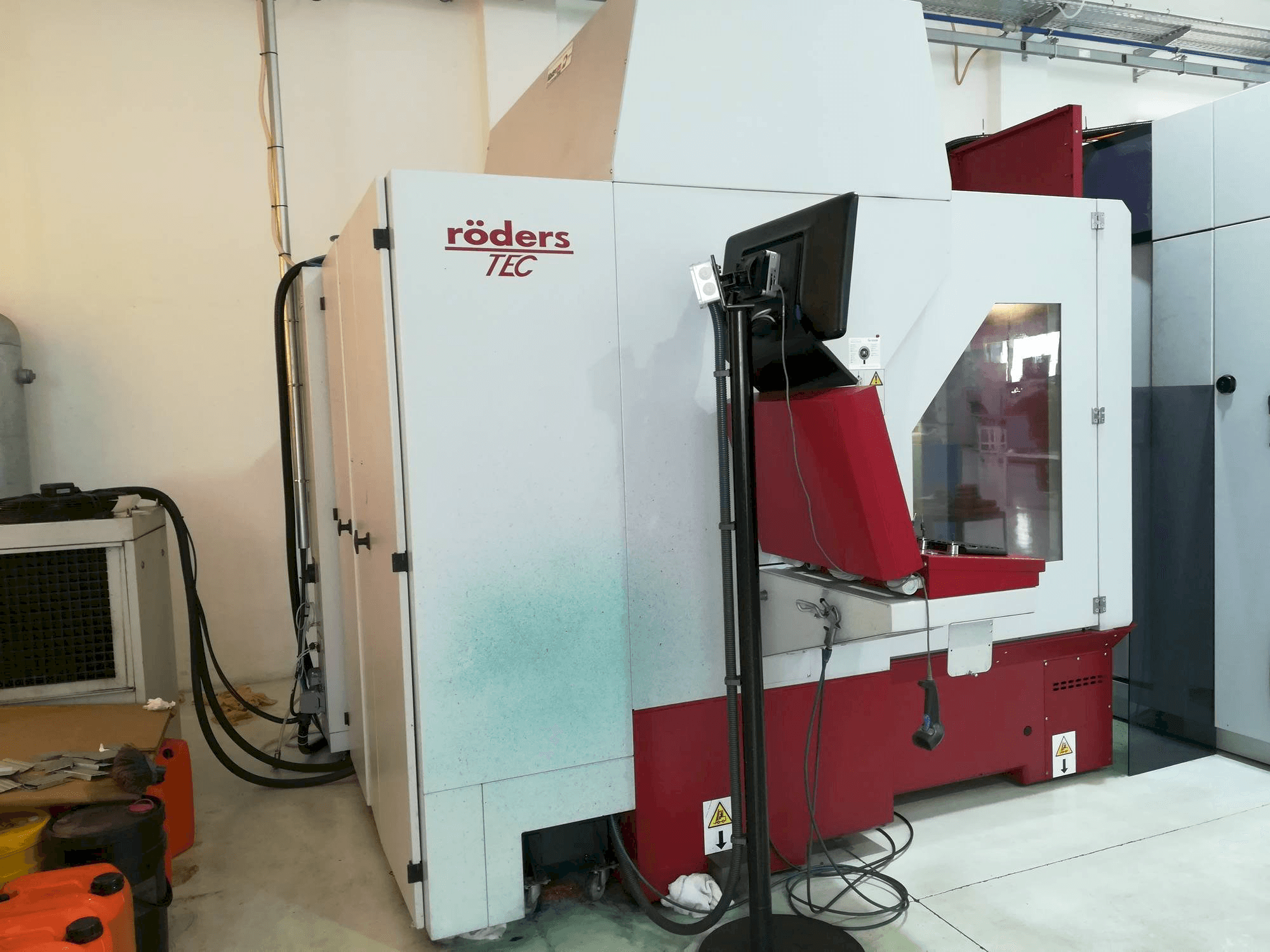

Röders RXP 801 Milling Machine

This Röders RXP 801 Milling Machine was built in 2013 in Germany. It is operated through a Röders RMS6 control unit. This machine can work with a spindle speed between to 100 - 40000 rpm. It counts with a 1-axis NC-turntable direct drive RTT1 360º, and a power Chuck P, d=150. Several additional equipment is included, which can be appreciated complete in the document below the page.

Overview

brand: RÖDERS
year: 2013
MODEL: RXP 801
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: RÖDERS

Technical Information - RÖDERS RXP 801

General Data

Measurements width: 2884 mm
Measurements depth: 2760 mm
Measurements height: 2800 mm
Machine weight: 9500 kg

Control Unit

Model: RMS6
Brand: RÖDERS

Main drive

Spindle speed range: 100 - 40000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 855 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 796 mm
Outer width: 596 mm
Table load: 800 kg

Tools

Max tool diameter: 20 mm
Max tool length: 225 mm

Media

Main electronic connection: 400 V

Additional Equipment

- Laser for tool measuring
- Tool cleaning device
- Chiller for tempering of spindle
- Cooling of the secondary parts of the linear motors
- Workpiece cleaning System
- High-frequency milling spindle MFW1224/42 HSK-E40
- 1-axis NC-turntable direct drive RTT1 360º
- Power Chuck P, d=150

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hsc-machine rxp801 with t-slot table
- - High dynamical linear motors in all axes with integrated cooling
- - Fully closed cabin with two doors with safety glass
- - All machine parts are protected against soiling
- - Spindle compensation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
