Samsung PL60

Photo Gallery

Samsung - PL60AE-TUR-SAM-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

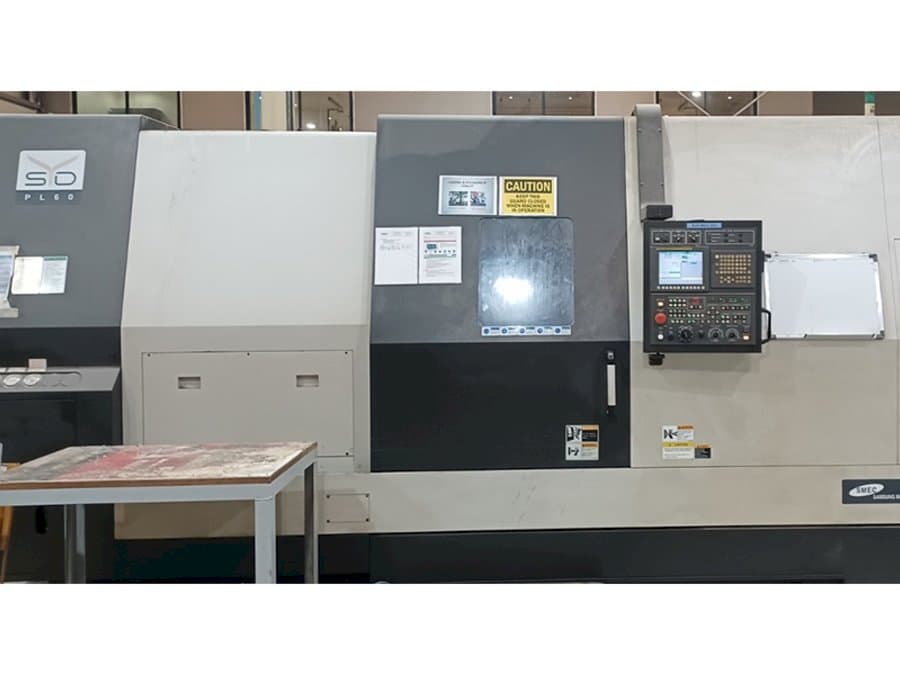

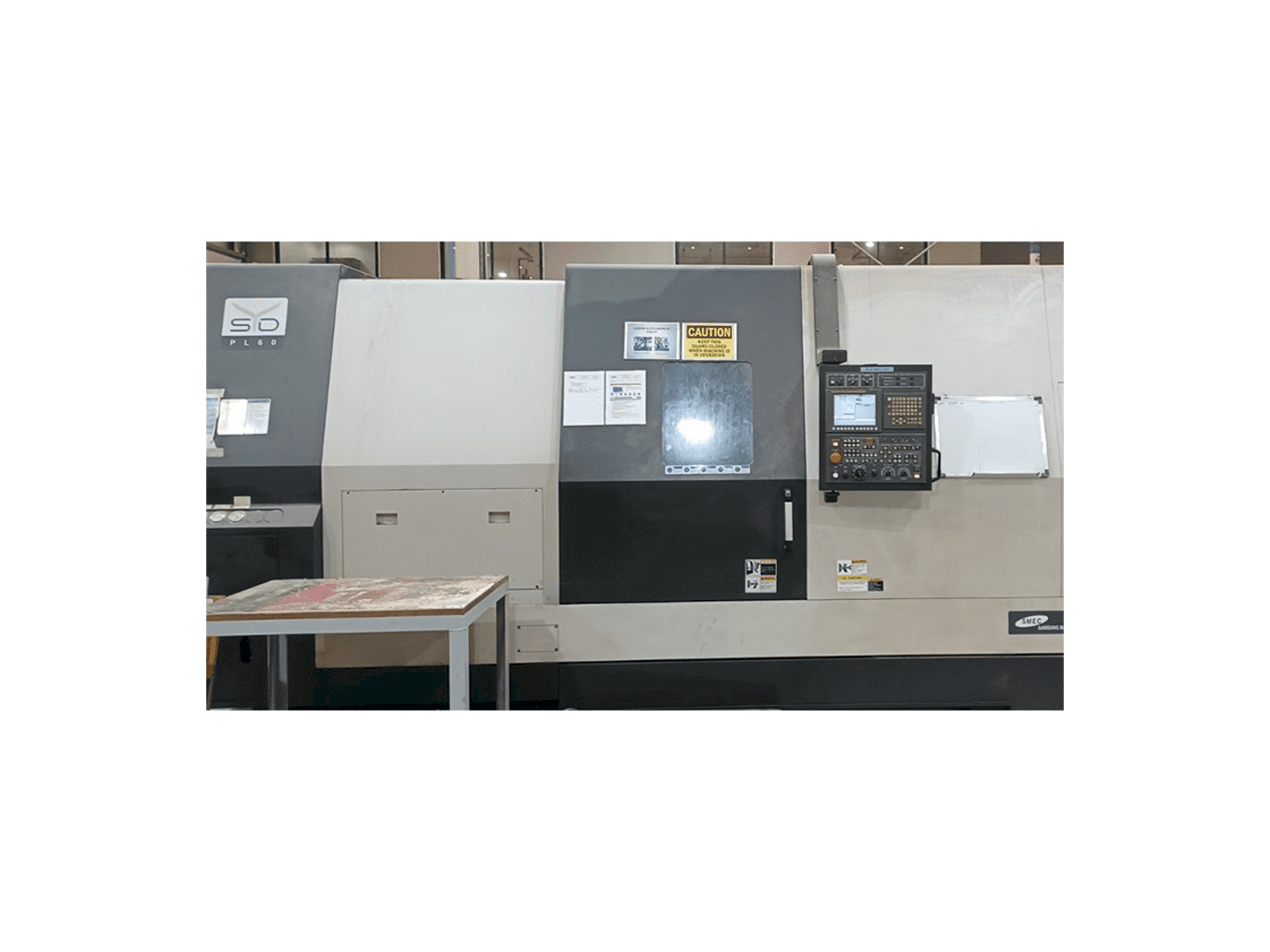

Samsung PL60 Lathe

This Samsung PL60 Lathe was made in the year 2014 in Korea. It has a working history of 2422 cutting hours. This 2 axis machine operates with a spindle speed up to 1500 rpm. It includes a tailstock programmable.

Overview

brand: Samsung
year: 2014
MODEL: PL60
production hours: 2422
application type: Turning
Location: United Arab Emirates
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Samsung PL60

General Data

Machine weight: 16500 KG

Main drive

Spindle speed range: 1500 1/MIN
Spindle bore: 180 mm
Number of axis: 2

Movement

X-AXIS Movement: 470 mm
Z-AXIS Movement: 1050 mm

Turret

Number of tool slots: 12

Media

Main electronic connection: 220 V / 60 Hz
Power consumption: 70 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck dia. : 609. 6 mm
- - Rec. Macining dia. : 900 mm
- - Max. Macining dia. : 1000 mm
- - Max. Turning lenght: 1000 mm
- - Shank dia. For boring bar: Ø80 mm
- - Tailstock travel: 950 mm
- - Quill dia. : Ø180 mm
- - Quill bore taper: mt-6 (built-in)
- - Quill travel: 150 mm
- - Tailstock programmable

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
