Sodick AG60L

Photo Gallery

Sodick - AG60LDE-EDM-SOD-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AG60L - Die-sink EDM For Sale | gindumac.com

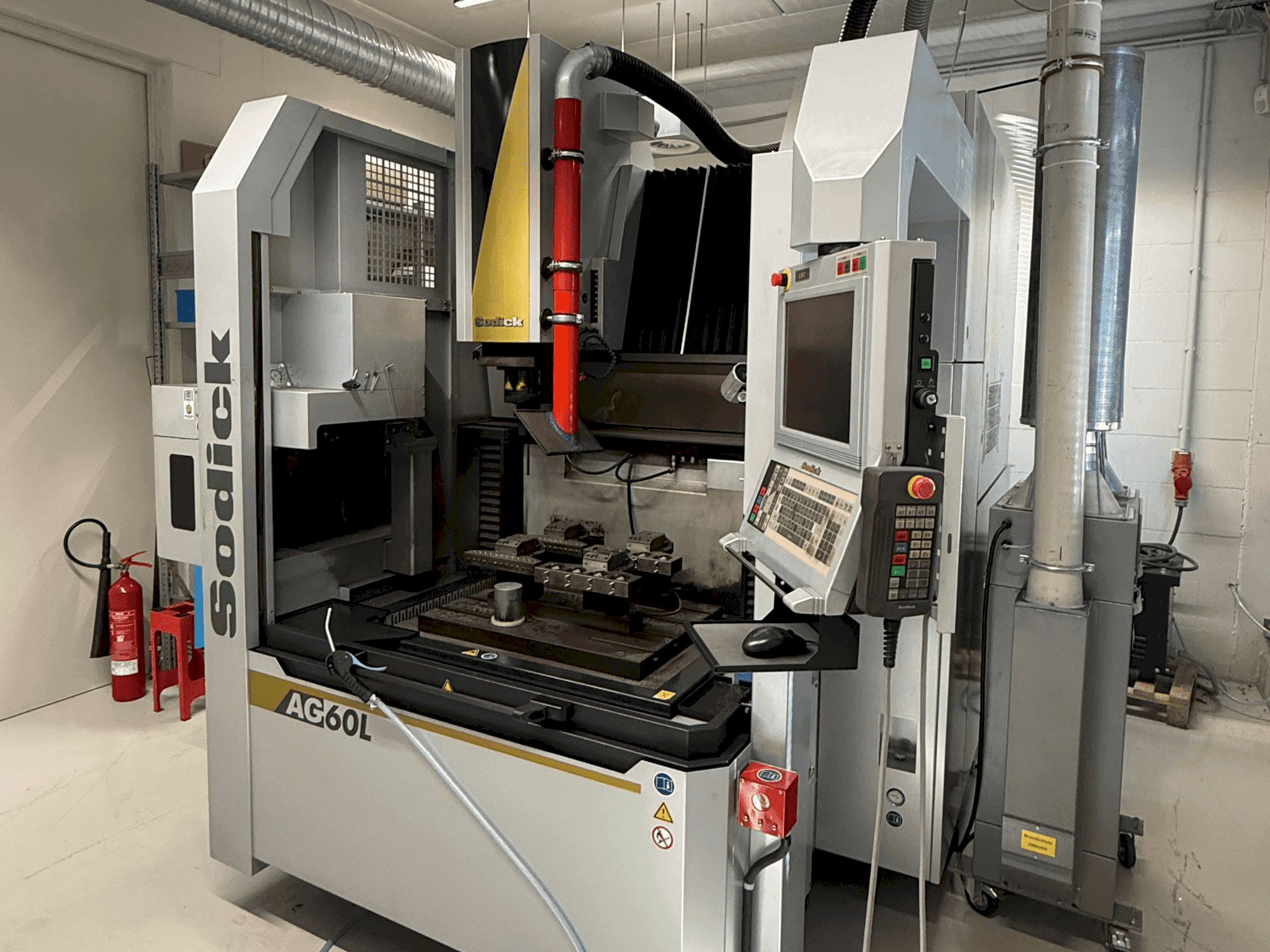

This Sodick AG60L Die-sink EDM machine was manufactured in 2012. It features a ceramic table measuring 750 x 550 mm and can handle a maximum workpiece weight of 1500 kg. The machine includes a linear motor, glass scales, and a remote control for enhanced precision and ease of use. Consider the opportunity to buy this Sodick AG60L die-sink EDM machine. Contact us for more information about this machine.

Overview

brand: Sodick
year: 2012
MODEL: AG60L
production hours: 7357
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - Sodick AG60L

Movement

X-axis Travel: 600 mm
Y-axis Travel: 420 mm
Z-axis Travel: 370 mm

Additional Information

Additional equipment

Replaceable paper filter / SEC-10 (C-axis) / SGF2 Nano Wear Unit / Fire Extinguisher / TMM3 Power Generator / Dielectric Cooling Unit / 15" TFT Touch Screen / Lowerable Work Container
Linear motor (X-, Y-, Z-axes) / Glass scales in X-, Y-, Z-axes / Ceramic work area / Remote control
Accessories include electrodes (graphite, tungsten, and copper), electrode holders, and jigs with documentation. / Some electrode holders with electrodes are still in the machine.

Machine Benefits

Technical Machine Benefits

Dimensions of machine (lxwxh): 1852 x 2825 x 2570 mm / machine weight: 5350 kg
Max. Workpiece weight: 1500 kg / ceramic table dimensions (w x d): 750 x 550 mm
Floor-table distance: 850 mm / max. Electrode weight: 50 kg
Dielectric fluid level (min-max): 150 - 400 mm / dielectric capacity: 465 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
