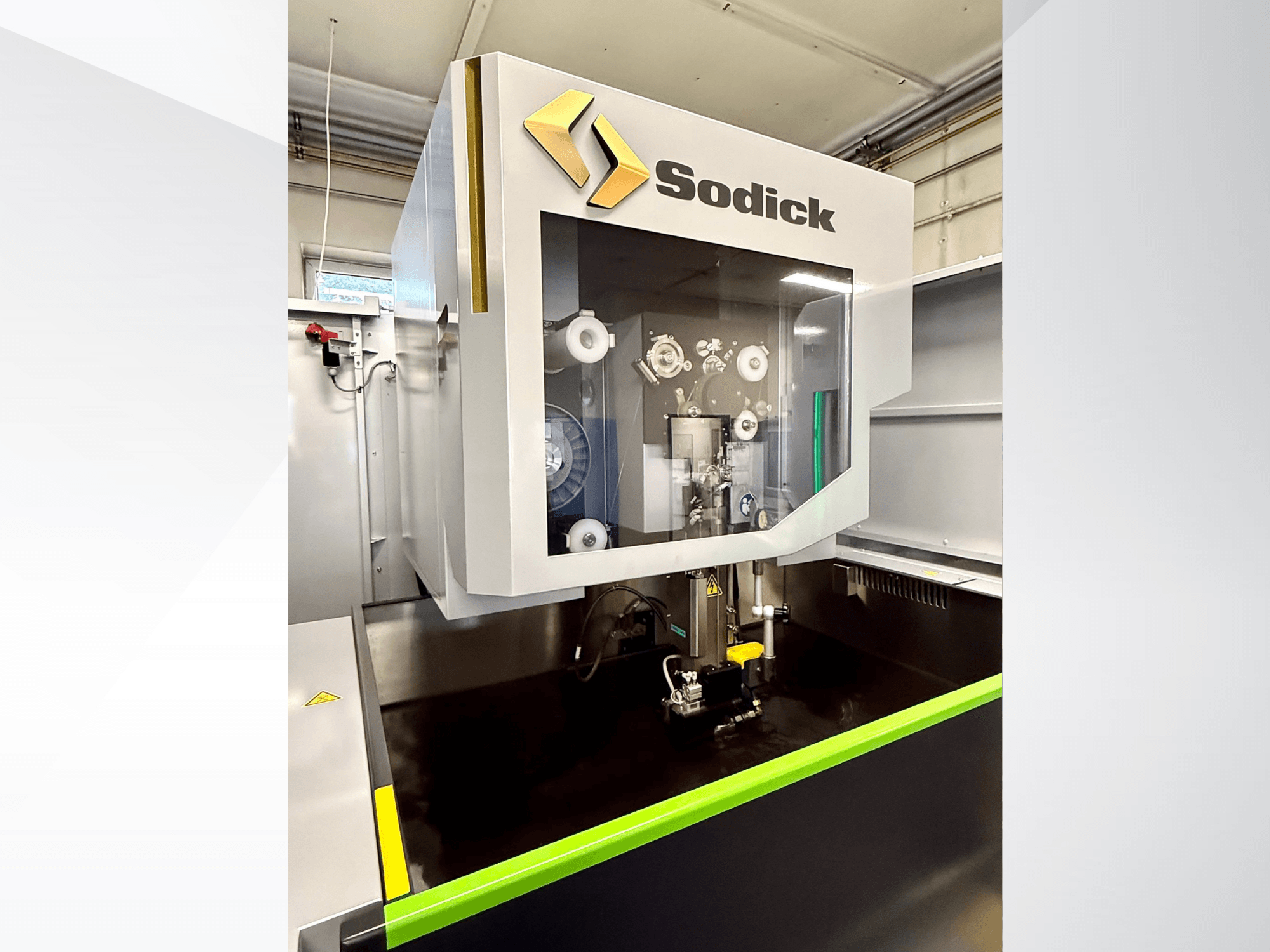

This 5s Sodick VN 600 Q wire edm machine was manufactured in 2024. It features a maximum workpiece weight of 1,874 lbs and advanced capabilities such as high-speed automatic wire threading and improved surface finish circuit for smoother machining. With a robust design and user-friendly software, consider the opportunity to buy this Sodick VN 600 Q wire edm machine. Contact us for further details.
Overview
- brand: Sodick
- year: 2024
- MODEL: VN 600 Q
- production hours: 1800
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
Technical Information - Sodick VN 600 Q
Dimensions
- Machine Depth: 2605 mm
- Machine Height: 2080 mm
- Machine Weight: 3300 kg
- Machine Width: 2620 mm
Movement
- Number of Axes: 5
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Hours: 1,800
U/V-axis travel: 3.54" x 3.54" (90 x 90 mm)
Wire diameter range: 0.004"–0.012" (0.10–0.30 mm)
Work tank dimensions (W x D): 40.94" x 30.71" (1040 x 780 mm)
Maximum workpiece weight: 1,874 lbs (850 kg)
Distance from floor to table: 36.61" (930 mm)
Fixed Jet High Speed Automatic Wire Threading (AWT)
Improved Surface Finish Circuit — smoother machining finish
High Speed Electrolysis-Free Power Supply
Advanced Tension Servo Control — stable wire tension control
Ceramic machine components — improved thermal stability & wear resistance
Wire Tip Disposal Unit — automatic waste handling
Z-axis automatic dielectric fluid level control
Motion controller — precision axis control system
On-board user-friendly Heart NC software
Remote hand control + mouse
USB & LAN connection ports — data transfer and networking
Energy saving circuit — reduced power consumption
Built-in voltage stabilizer — stable power input
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
