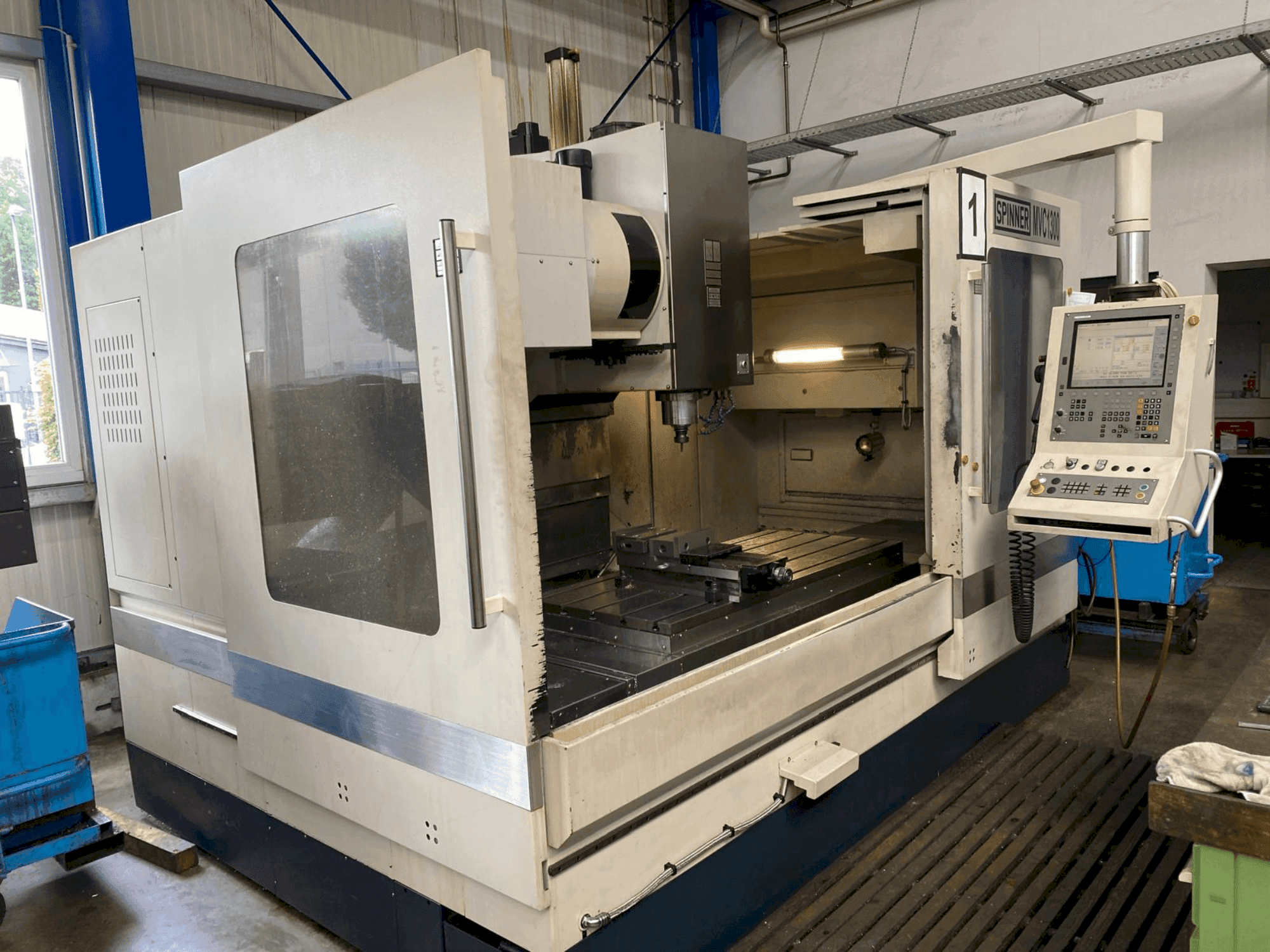

SPINNER MVC 1300

Photo Gallery

SPINNER - MVC 1300DE-MIL-SPI-2012-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER MVC 1300 For Sale | gindumac.com

This 3-axis SPINNER MVC 1300 was manufactured in 2012. It features a traverse path of 1300mm x 710mm x 710mm, a spindle speed of 10000 rpm, and a magazine with 32 positions. The spindle holder is SK40, and it includes an internal cooling supply. The control system is TNC 620. If you are looking to get high-quality milling capabilities, consider the SPINNER MVC 1300 machine we have for sale. Contact us for more information about this machine.

Overview

brand: SPINNER
year: 2012
MODEL: MVC 1300
production hours: 28977
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SPINNER MVC 1300

Control Unit

Brand: HEIDENHAIN
Model: TNC 620

General Data

Measurements width: 3500 MM
Measurements depth: 4500 MM

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1300 mm
X-AXIS Rapid traverse: 24m/min
Y-AXIS Movement: 710 mm
Y-AXIS Rapid traverse: 24m/min
Z-AXIS Movement: 710 mm
Z-AXIS Rapid traverse: 24m/min

Tools

Type of tool holder: SK 40

Media

Internal cooling: Yes

Additional Information

Additional equipment

Internal Cooling Supply: Yes
Swarf conveyor
Coolant system + work area light
Spritzschutzvollverkleidung (full splash guard) + coolant system + work area light
Two large work area doors in the work area
Large windows in the work area

Machine Benefits

Technical Machine Benefits

Magazine positions: 32
Switch-on time - 52600 hours
Table: 1500x650mm
Tool holder: sk 40 according to din 69871-a, pull studs according to din 69872-a
Tool changer: automatic double arm tool changer for 24 tools
Weight compensation: counterbalance for the z-axis
Guideways: linear guideways on all three axes

Extra Information

Programming: Heidenhain Klartext FK (free contour programming) or DIN-/ISO programming Documentation: Spinner manual and CNC documentation in digital form on a CD-ROM Paint: Two-tone RAL 7035/5008 Compliance: Machine with CE norms and EMV contract "Europa-Standard" Spinner VC Machine Hours: 32335 Spindle Hours: 14018 Spinner MVC 1300 Machine Hours: 52676 Spindle Hours: 28937

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
