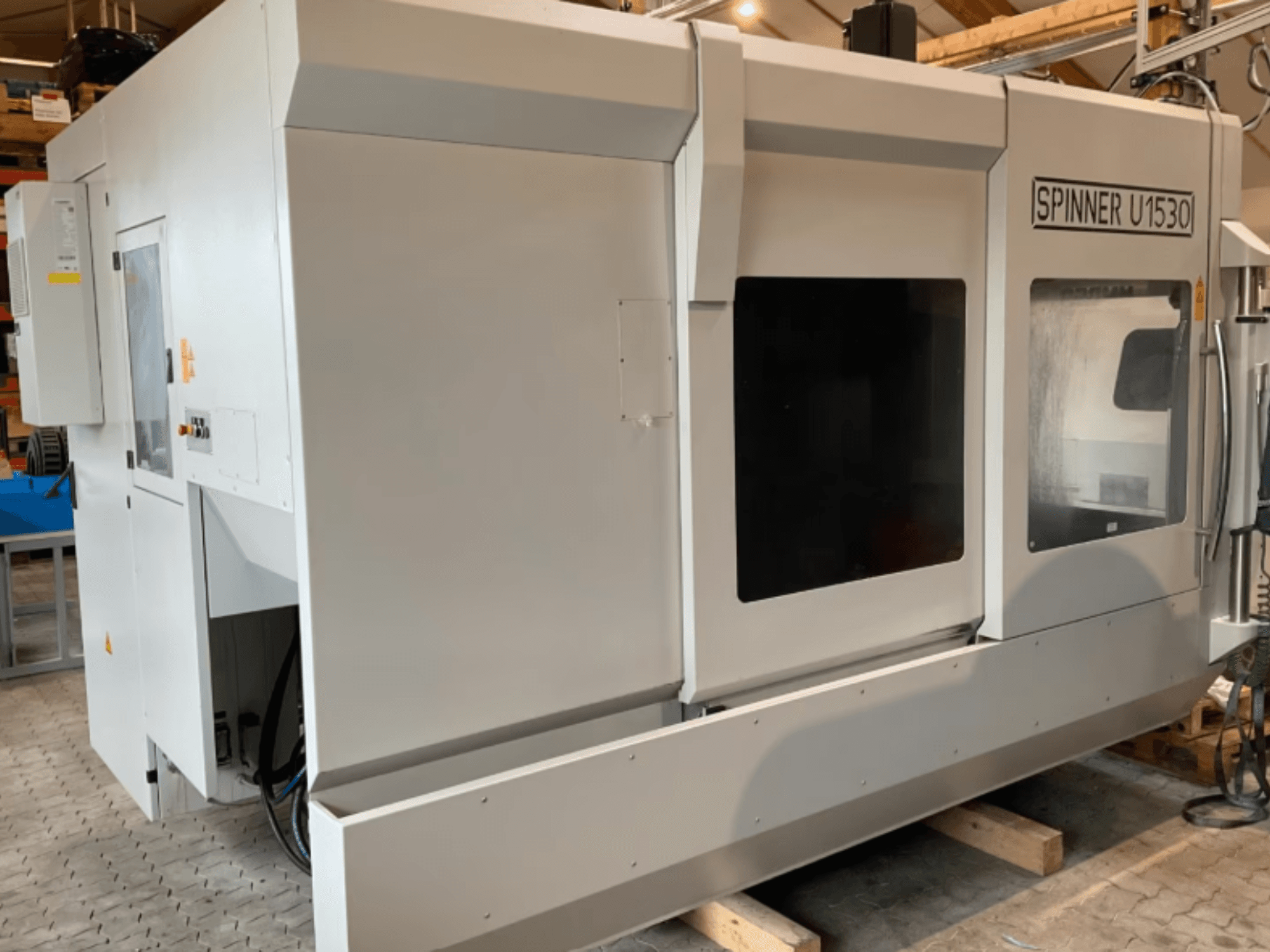

This 5-axis SPINNER U5-1530 was manufactured in 2021. It features an impressive X-axis travel of 1530 mm, Y-axis travel of 530 mm, and Z-axis travel of 465 mm. The machine includes a fixed rigid table combined with a 2-axis rotary/tilt table, enhancing its versatility. If you are looking to get high-quality machining capabilities, consider the SPINNER U5-1530 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: SPINNER
- year: 2021
- MODEL: U5-1530
- production hours: 6000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER U5-1530
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D-SPIOS V1
Dimensions
- Machine Weight: 10500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1530 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 465 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
- Tool Stations: 54
Additional Information
- Number of Axes: 5-axis simultaneous
- Table Configuration: Fixed rigid table section (Starrtisch U-1530) combined with a 2-axis rotary/tilt table (SPRT650 / Version T)
- Spindle Speed: up to 12,000 rpm (Advanced spindle option)
- Spindle Taper: SK40
- Tool Magazine Capacity: 54 positions
- Short circuit power of the grid (SK-Netz): >= 1.6 MVA (100xPnE/R-Modul in kW)
- Connected load: 26 kVA
- Nominal voltage: 3~ 400 V + N + PE
- Nominal current of protective device (In): 50 A
- Operational rated current (Ib): 42 A
- Grid frequency: 50 / 60 Hz
- Grid type, connection type: TN-Netz (5-wire) with grounded and loadable star point
- Residual Current Circuit Breaker (RCCB): Without FI-Schalter (recommended)
- Control System: SIEMENS 840D-SPIOS V1 (SINUMERIK 840D sl sl SPIOS V2 platform)
- Measuring System: X/Y/Z linear scales (U-1530 Advanced) paired with a BLUM 3D workpiece touch probe and B/C axis measuring system
- Coolant Through Spindle (IKZ): Yes, featuring a high-pressure CTS unit preparation and high-pressure tank (BAZ 70 bar)
- Rotary Axis Braking: Hydraulic brakes on B + C axes with 2-way rotary union feedthrough (70/7 bar)
- Ambient Temperature Range: 15°C < T < 35°C
- Relative Humidity: <= 70% at 20°C
- Total Machine Weight: ~10,500 kg (Base machine) + ~377 kg (Chip conveyor) + 170 Liters coolant volume
- First language: German
- Second language: English
- Multi-functional handheld control terminal: Included
- Shopmill: Included
- 4-axis machining rotary axis: Included
- 3D-Simulation: Included
- Remaining material recognition: Included
- Simultaneous recording of machining: Included
- Automatic shutdown functions: Included
- Kinematics measurement: Included
- Advanced Surface: Included
- Spline Interpolation: Included
- 2G-Byte additional memory: Included
- Touch probe system functions: Included
- Coolant system + U-chip conveyor U1530: Included
- Blow air at the spindle head: Included
- Compressed air through milling spindle: Included
- Rinse gun: Included
- Robot door, right: Included
- UNIROB-V2021-Interface Basis: Included
- Digital documentation: German
- Eyelets for crane unloading: Included
- Standard painting: Included
- Electrical execution: EUROPA-ST
- System Hydraulic Pressure: 68 bar
- Clamping Hydraulic Pressure (4th/5th Axis): 35 bar
- Pneumatic Operating Pressure: 6 bar
- Compressed Air Consumption: 180 norm liters/min
- Maximum Noise Emission: 73 dB(A) at normal operation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
