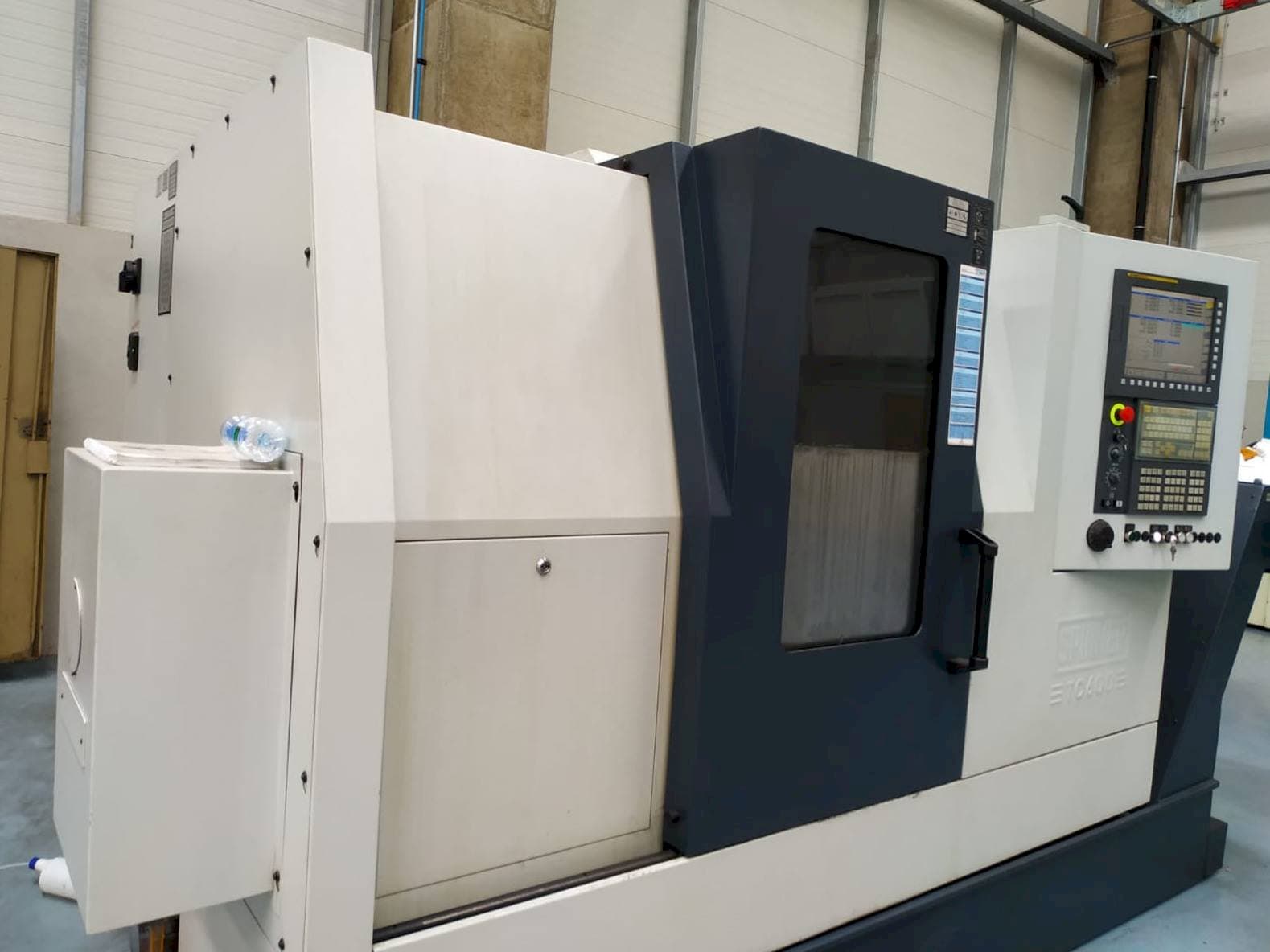

SPINNER TC-600 Lathe

This SPINNER TC-600 Lathe was made in the year 2011. It has been working for only 72 hours, is brand new. It is equipped with a FANUC 31 control unit. This 3 axis machine can operate with a speed up to 6000 rpm. This machine was taken to a corporate factory in 2011, it only processed 100 jobs. It is a brand new machine that has been regularly maintained without interruption.

Overview

brand: SPINNER
year: 2011
MODEL: TC-600
production hours: 72
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SPINNER TC-600

Control Unit

Control Brand: FANUC
Control Model: 31

Movement

Number of Axes: 3
X-axis Travel: 340 mm
Y-axis Travel: 850 mm

Technical Specification

Spindle Power: 18 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

C axis motor power: 5 kw (ge fanuc)
C axis motor torque: 30 nm
Pinol cone: mk4
Body movement: 570
Coolant consumption: 250 liter
Lcd color display
Manual guide program english
3d - three dimensional simulation: 1 piece
Simulation at the time of processing: 1 piece

Technical Machine Benefits

Maximum dial diameter: 600 Ø mm
Maximum turning diameter: 400 Ø mm
Maximum turning length: 650 mm
Standard mirror size: 250 mm
Maximum bar processing capacity: 65 Ø mm
Bearing diameter: 80 Ø mm
Number of teams: 12
Tool holder: vdi 40
Number of rotary tool clamping: 12
Ac servo turret

Extra Information

The machine was taken to a corporate factory in 2011, it only worked 72 hours and processed 100 jobs. It is a brand new machine that has been regularly maintained without interruption. It will be given with all the teams.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
