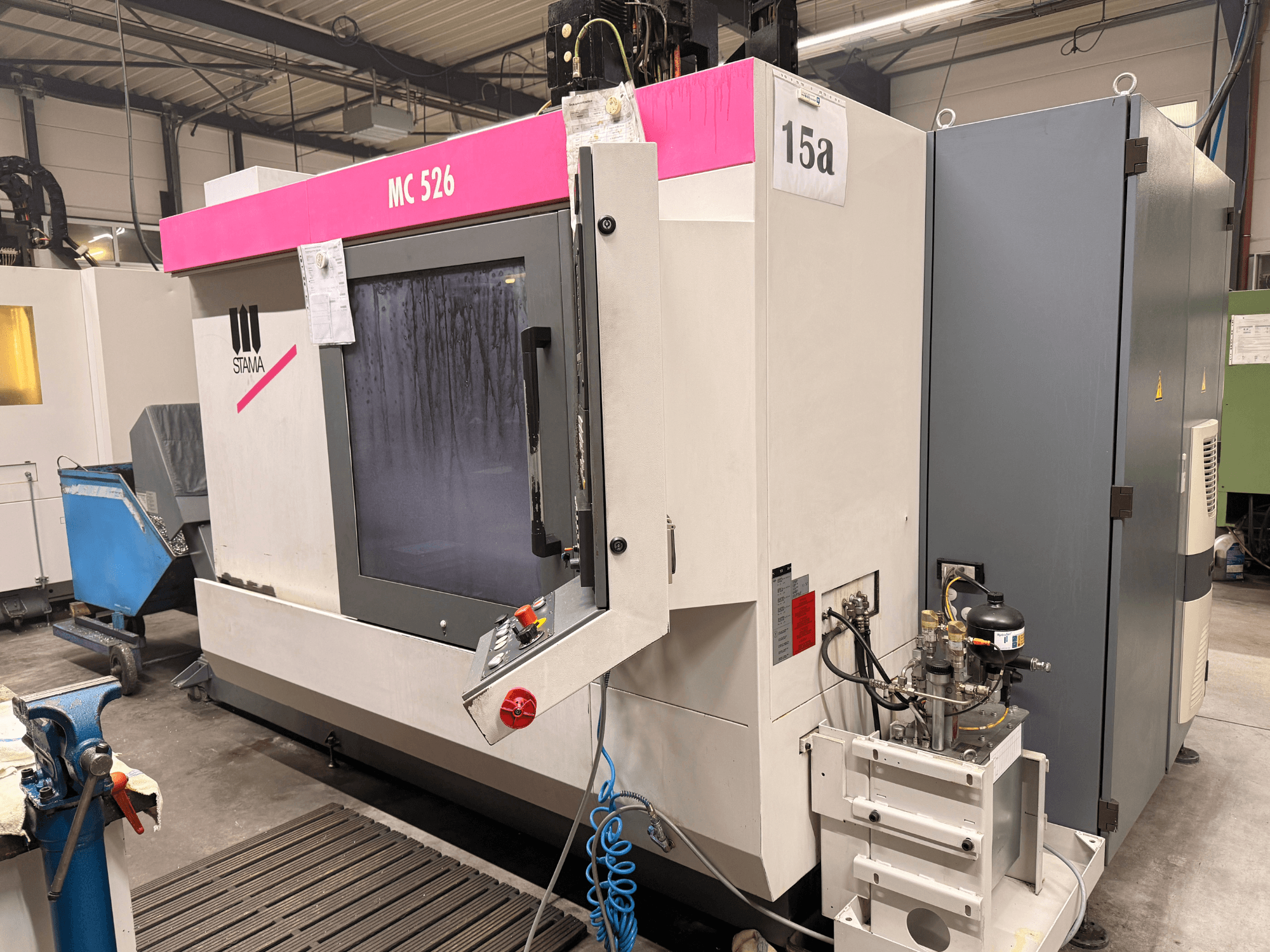

STAMA - MC526DE-MIL-STA-2008-00001

Additional information

• Feed Force X/Y-Axis: 4,000 N

• Feed Force Z-Axis: 8,000 N

• Rapid Traverse X/Y/Z: 60 m/min

• Feed Rate X/Y/Z: 1 – 10,000 mm/min

• Axis Dynamics: X = 5 m/s²

• Axis Dynamics: Y = 8 m/s²

• Axis Dynamics: Z = 12 m/s²

• Distance Table to Spindle Nose: 350 – 710 mm

• Tool Clamping Force: 7,000 N

• Spindle Diameter: 65 mm

• Constant Torque Range: Up to 3,000 rpm

• Torque at 100% Duty Cycle: 30 Nm

• Torque at 20% Duty Cycle: 59 Nm

• Power Above 3,000 rpm at 100% Duty Cycle: 9.5 kW

• Power Above 3,000 rpm at 20% Duty Cycle: 18.5 kW

• Maximum Tool Diameter (All Positions Occupied): 88 mm

• Maximum Tool Diameter (Adjacent Positions Free): 125 mm

• Pull Stud Standard: DIN 69872-19

• Tool Change Time (Chip-to-Chip): Approx. 2.4 s

• Tool Offset Functions: Length and Radius Compensation

• Tool Data Input: Via Input Station or CNC Screen Menu

• Positioning Resolution: 0.001 mm

• Machine Prepared For: Fixed Table with T-Slots and Location Holes

• Machine Prepared For: NC Rotary Table with Tailstock

• Tool Holder Type: SK40 DIN 69871 A/B

• Siemens 840D SolutionLine

• Chip conveyor optional

• Belt filter system

• Internal coolant supply via spindle

• High pressure capability

• Renishaw probe

• Extraction system

• Connection Voltage: 400 V

• Phase: 3~

• Frequency: 50 Hz

• Nominal Current: 34 A

• Additional Fuse: 3 x 50 A

• Minimum Connection Cross Section: 25 mm²

• CE Marking: Yes
