STAMA MC536/Twin

Photo Gallery

STAMA - MC536/TwinDE-MIL-STA-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

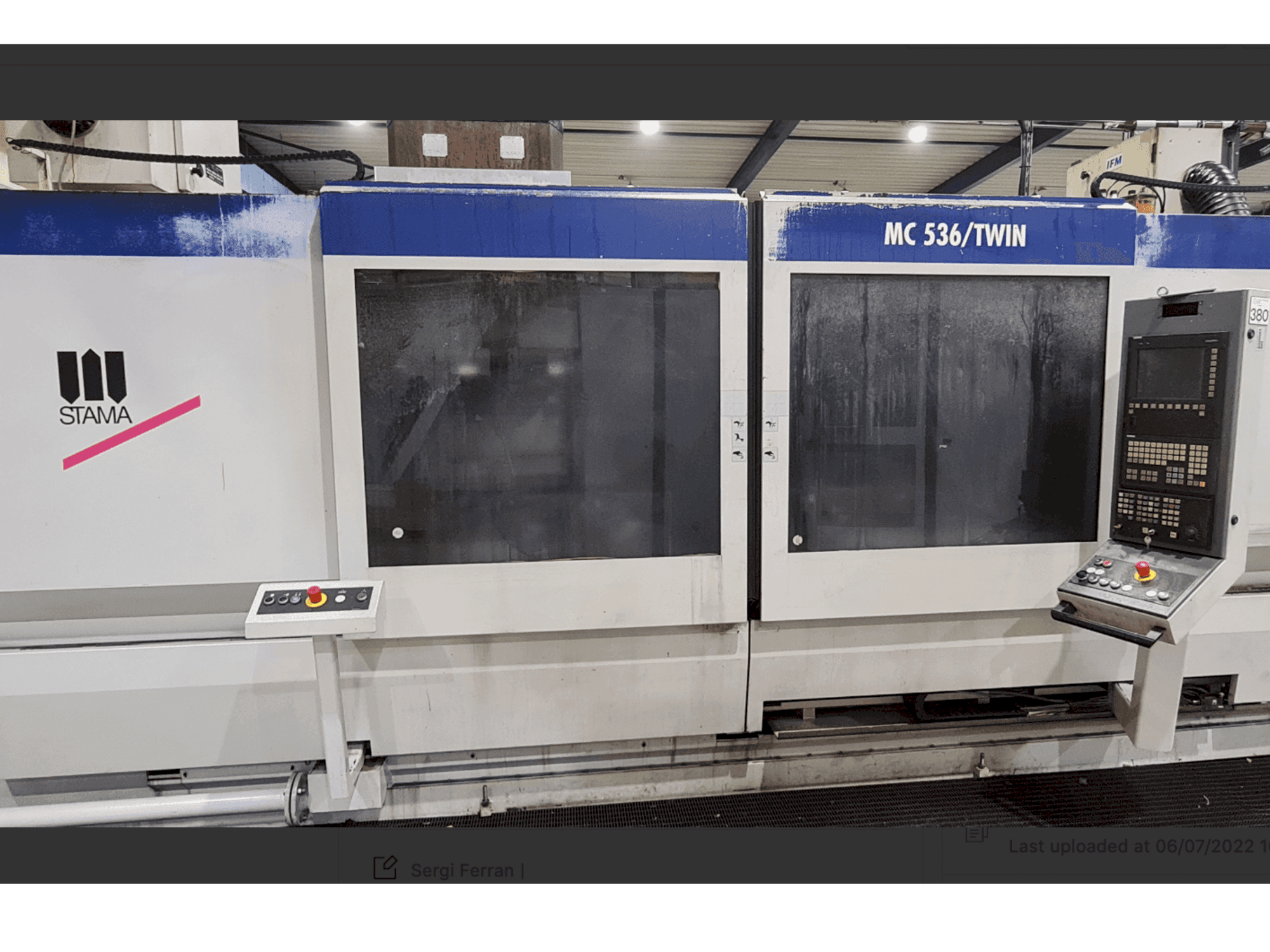

This STAMA MC536/Twin vertical machining machine was built in 2007. This 3 axis machine is operated through a SIEMENS SINUMERIK control unit. This machine has a spindle speed range 0-10000 rpm.

Overview

brand: STAMA
year: 2007
MODEL: MC536/Twin
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - STAMA MC536/Twin

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK

Dimensions

Machine Depth: 7300 mm
Machine Height: 3500 mm
Machine Weight: 14500 kg

Movement

Number of Axes: 3
X-axis Travel: 2200 mm
Y-axis Travel: 550 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 1 kW
Spindle Speed: 8000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

2 pallets. Pallets size: 2 x 1250 x 250 mm
Max. Milling capacity 500 cm3; max. Drilling 50 mm; max. Thread m36
Internal coolant supply (50bar) din 69871 a/b
Engine power: s6 - 40% ed - 70 kw
Spindle bearing 95 mm
Max. Torque 300 nm
Spindle arrangement a=400
Number of tools 2x21; tool tension 45000 n; max. Tool 180
Feed speed x,y,z: 1-10000 mm
Total connected load 96 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
