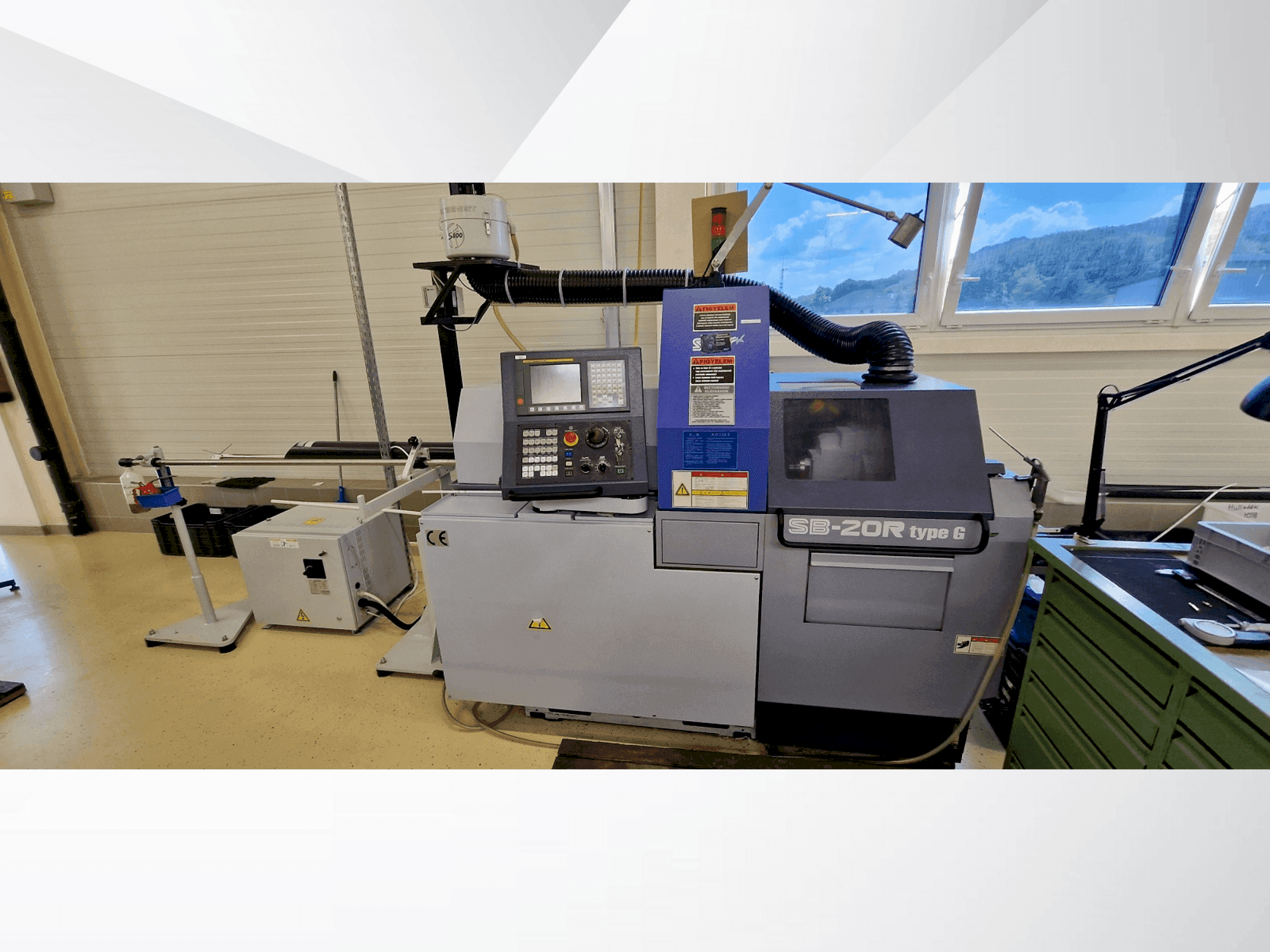

Front view of Star SB-20R type G machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Star SB-20R type G

Photo Gallery

Star - SB-20R type GHU-TUR-STA-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Star SB-20R type G For Sale | gindumac.com

This 7-axis Star SB-20R type G swiss type turning machine was manufactured in 2016. It features a maximum machining diameter of Ø20 mm and a headstock stroke up to 205 mm. Equipped with a high-speed spindle capable of 10,000 min⁻¹ and rapid feed rates up to 35,000 mm/min for efficient machining. Ideal for complex, precision tasks, the Star SB-20R type G machine we have for sale is a robust addition to any production line. Contact us for further details.

Overview

brand: Star
year: 2016
MODEL: SB-20R type G
application type: Turning
Location: Hungary
machine type: Swiss Type Turning Machine

Technical Information - Star SB-20R type G

Movement

Number of Axes: 7
X-axis Travel: 600 mm
Y-axis Travel: 200 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Additional equipment

Tool Holders and Sleeves: Configurable with various series (OM151, OM152, OM156, OM157)
Power-driven Attachments: Max speed 10,000 min⁻¹ (high speed configurations), 6,000 min⁻¹ (standard configurations)
Tool selection: Servo motor
Maximum Drilling Capability: Stationary tool (Ø12 mm) Power-driven tool (Up to Ø7 mm)
Maximum Tapping Capability: Stationary tool (M10 x P1.5) Power-driven tool (Up to M6 x P1.0)
Maximum Milling Capability: Up to Ø10 mm

Machine Benefits

Qualitative Machine Benefits

Advanced configurations for power-driven tools allow for increased flexibility in machining operations
Robust control system ensures high precision and efficiency

Technical Machine Benefits

Spindle motor power: 2. 2 kw (cont. )/3. 7 kw (10 min/25% ed)
C1, c2 axis: 198,000°/min
Max workpiece diameter: 20 mm (option for 23 mm)
Max headstock stroke: 205 mm (guide bush version), 50 mm (non-guide bush version)
Comprehensive machining capabilities including turning, drilling, tapping, and milling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
