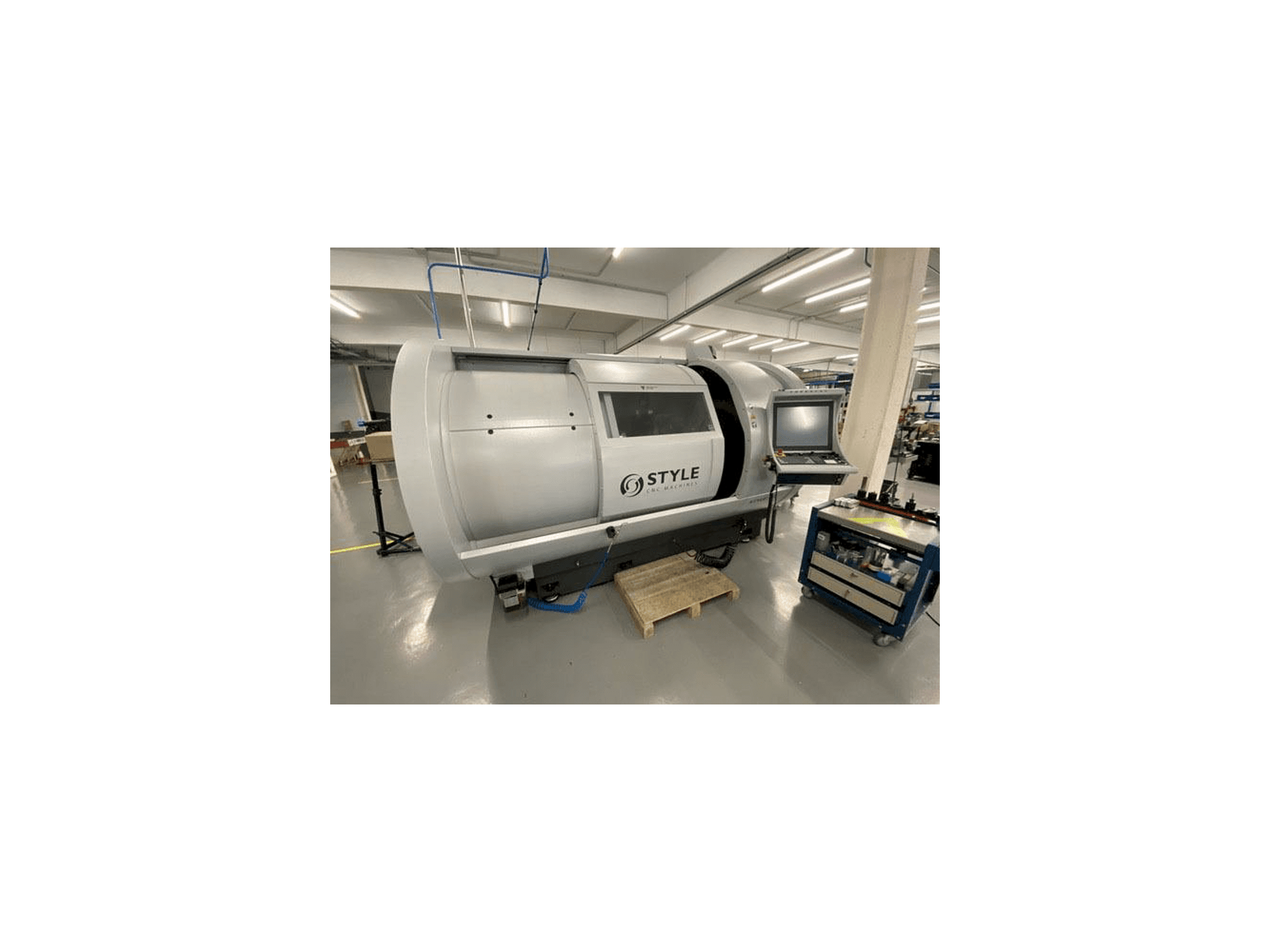

Front view of Sturtz 750 (900 dbc) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

STYLE 750 (900 dbc)

Photo Gallery

STYLE - 750 (900 dbc)AD-TUR-STY-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

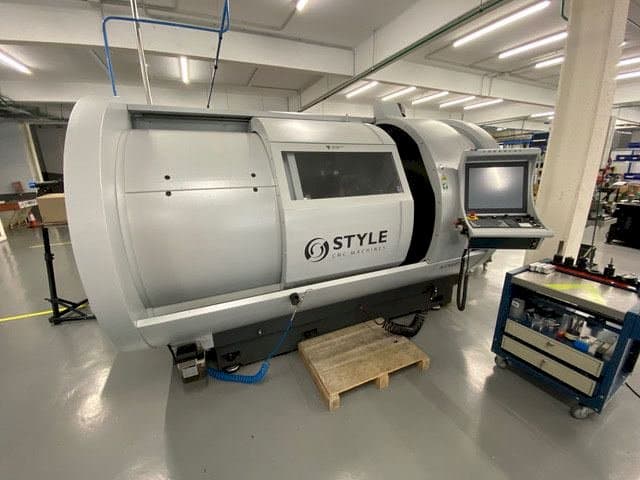

STYLE 750 (900 dbc) Lathe

This STYLE 750 (900 dbc) Lathe was manufactured in the year 2020 in the Netherlands and has 413 production hours. The machine has a spindle speed of 2000 rpm. The Original PDF of the machine is attached. See below for further details.

Overview

brand: STYLE
year: 2020
MODEL: 750 (900 dbc)
production hours: 413
application type: Turning
Location: Andorra
machine type: Horizontal Turning Machine

Technical Information - STYLE 750 (900 dbc)

General Data

Measurements width: 3100 mm
Measurements depth: 2300 mm
Measurements height: 2200 mm
Machine weight: 4700 kg

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 23 kW
Tool taper: A2-11
Number of axis: 2

Additional Information

Machine Benefits

Qualitative Machine Benefits

X and z-axis
Ball screw spindle Ø x-axis 32 mm
Ball screw spindle Ø z-axis 50 mm
Rapid movement 8 m/min
Feed rate 0. 01-1000 m/min
Tail stock: quill Ø 105 mm quill stroke 225 mm quill taper mt 5

Technical Machine Benefits

Machine colour frame ral 7021
Sheet metal ral 9006
Swing over bed 750 mm
Swing over support 530 mm
Distance between centers 900 mm
Bed width 450 mm
Maximum weight between centres 1500 kg
Maximum weight in combination with steady rest 2000 kg
Maximum main spindle torque 4090 nm
Spindle bore Ø105 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
