➤ Used Takisawa FX800 For Sale | gindumac.com

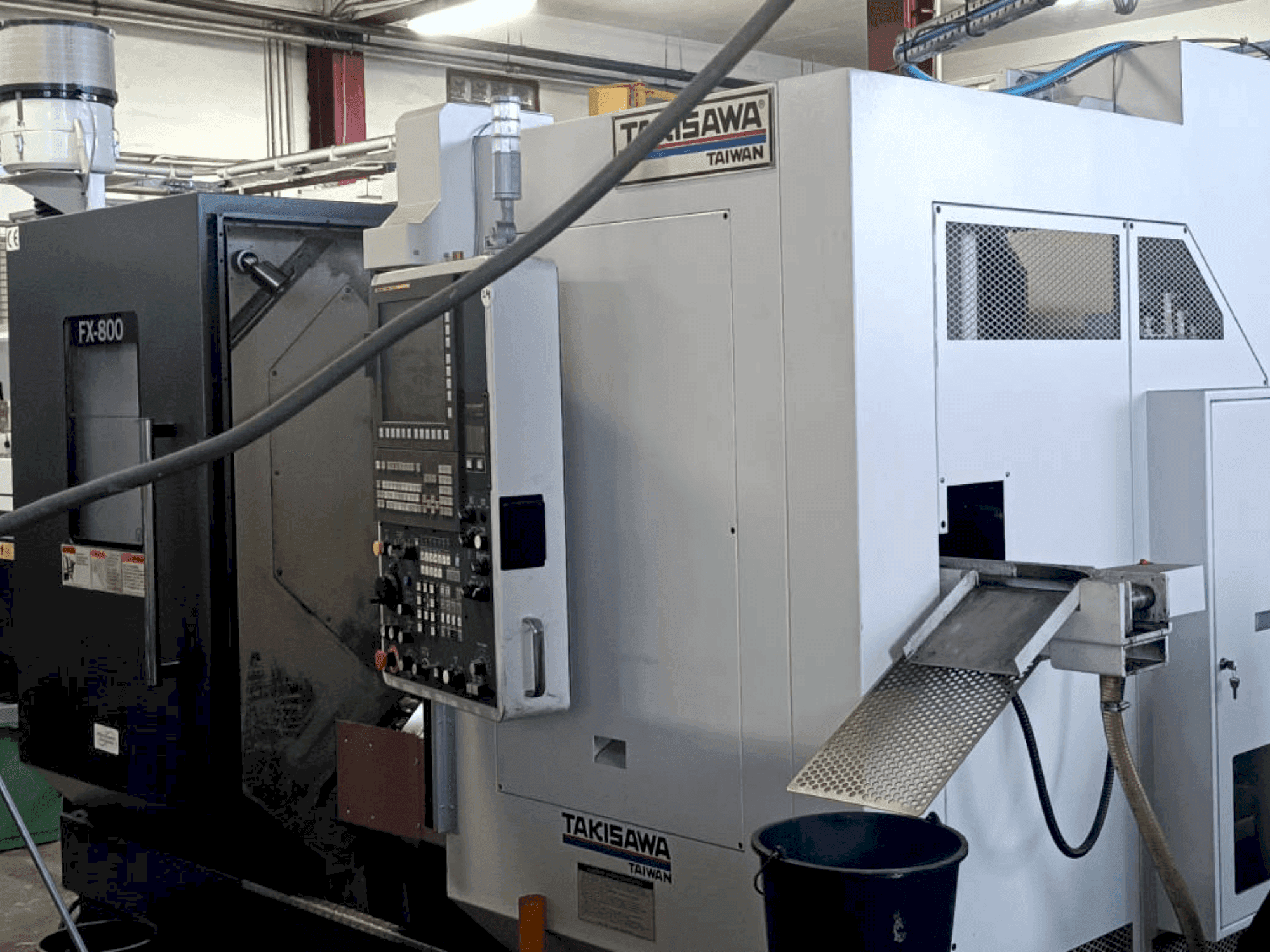

This 8-axis Takisawa FX800 was manufactured in 2017, a robust horizontal turning machine featuring dual spindles and two 16-position turrets, one with a Y-axis. It supports bar work up to 1500 mm and includes a bar loader, parts removal unit, and chip conveyor. Ideal for high-volume, precision turning operations. If you are looking to get high-quality turning capabilities, consider the Takisawa FX800 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Takisawa
year: 2017
MODEL: FX800
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Takisawa FX800

General Data

Measurements width: 2394 mm
Measurements depth: 5530 mm
Measurements height: 2340 mm
Machine weight: 12300 kg

Control Unit

Brand: FANUC
Model: Oi TF with Ethernet connection

Main drive

Number of spindles: 2
Spindle speed range: 4500 / 5000 RPM 1/MIN
Spindle motor power: 15/11 kW - 11/7.5 kW
Number of axis: 8

Turret

Number of turrets: 2

Tools

Number of stations: 16

Media

Chip conveyor: Yes

Additional Equipment

- Hydraulic clamping chuck Ø208 with hard clamping jaws // Hainbuch collet chuck SK 65 axfix
- Clamping cylinders with clamping sleeves
- Bar loader for 1500 mm bars with adjustable options
- Parts removal unit up to Ø65 mm with conveyor belt
- Coolant pumps (9 bar)
- Air through the 2nd spindle for blowing and ejection
- Extraction system with filter
- Special parting-off holder for parting blades from EWS
- Various clamping heads SK 65 // Various ER32 collets
- Camera surveillance // Tool monitoring: RAKU RAKU

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool shank size: □25 mm
- - Drill bar diameter: Ø40 mm
- - 4 driven tool holders (axial), for er32 collet (angle heads) // 4 driven tool holders (radial), for er32 collet
- - Power output of driven tools: 3. 7/5. 5 kw each
- - Both spindles equipped with a disc brake (parking brake)
- - Bar work capabilities up to 1500 mm // bar diameter through the main spindle: Ø65 (Ø67) // bar diameter through the feed spindle: Ø50 (Ø52) (occupied by automatic ejection)
- - Camera for machine tool interior with sapphire lens and durable housing // real-time monitoring with optional touchscreen
- - Ip68/169k rating for up to 100 bar high pressure
- - Maintenance-free, high resolution, and suitable for 24/7 operation
- - Various monitoring concepts and online support available

Extra information

- Easy installation with one hole and one PO connection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
