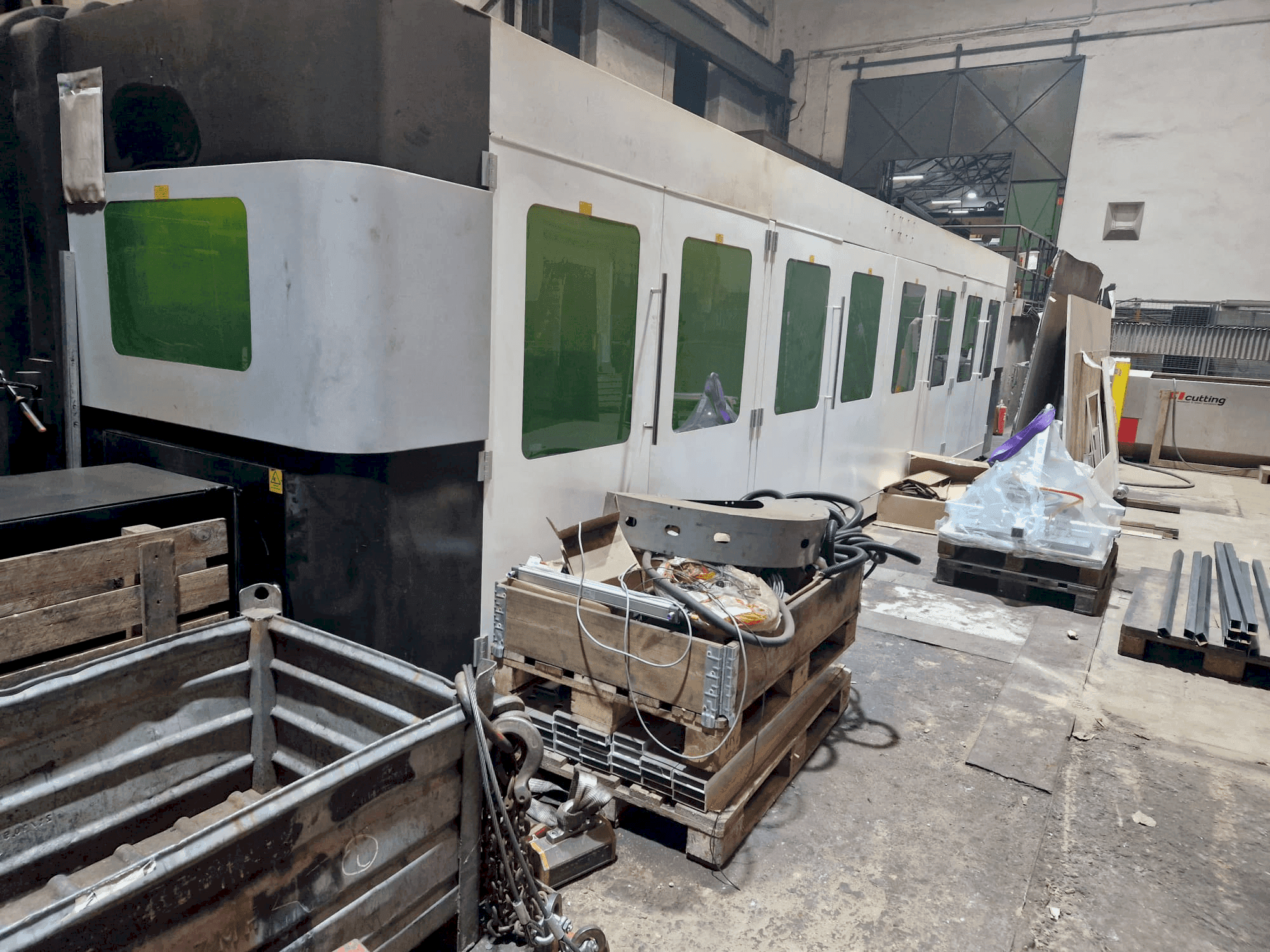

This 4-axis THETA TL 3015 PWD fiber laser cutting machine was manufactured in 2021. Equipped with a 4 kW laser, it handles a maximum working area of 1500 mm x 3000 mm and features an exchange table, enclosure compliant with European standards, and a high-resolution camera for real-time monitoring. Ideal for cutting various metals with precision. If you are looking to get high-quality cutting capabilities consider the THETA TL 3015 PWD machine we have for sale. Contact us for more information.
Overview
- brand: THETA
- year: 2021
- MODEL: TL 3015 PWD
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- availability: Immediately
Technical Information - THETA TL 3015 PWD
General Data
- Measurements width: 3050 mm
- Measurements depth: 8600 mm
- Measurements height: 2210 mm
- Machine weight: 8200 kg
Movement
- X-AXIS Movement: 1500 mm
- X-AXIS Accuracy: ±0.03 mm
- Y-AXIS Movement: 3000 mm
- Y-AXIS Accuracy: ±0.03 mm
- Z-AXIS Movement: 315 mm
- U-Axis Movement: 6000 mm
Workpiece
- Workpiece weight: 600 kg
Additional Equipment
- - Equipped with an exchange table and enclosure
- - Laser Class 1 – Enclosure complies with European standards
- - Automatic distance regulation for consistent cutting quality
- - Automatic focus adjustment
- - Equipped with a high-resolution camera for monitoring
- - Cooling and lubrication system
- - High precision and acceleration
- - Operator Training
- - Documentation / CE Certification
Additional Information
- Technical Machine Benefits:
- - Working area: 1500 mm x 3000 mm
- - Repeatability (x/y-axis): ±0. 02 mm
- - Maximum speed (x/y-axis): 100 m/min
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
