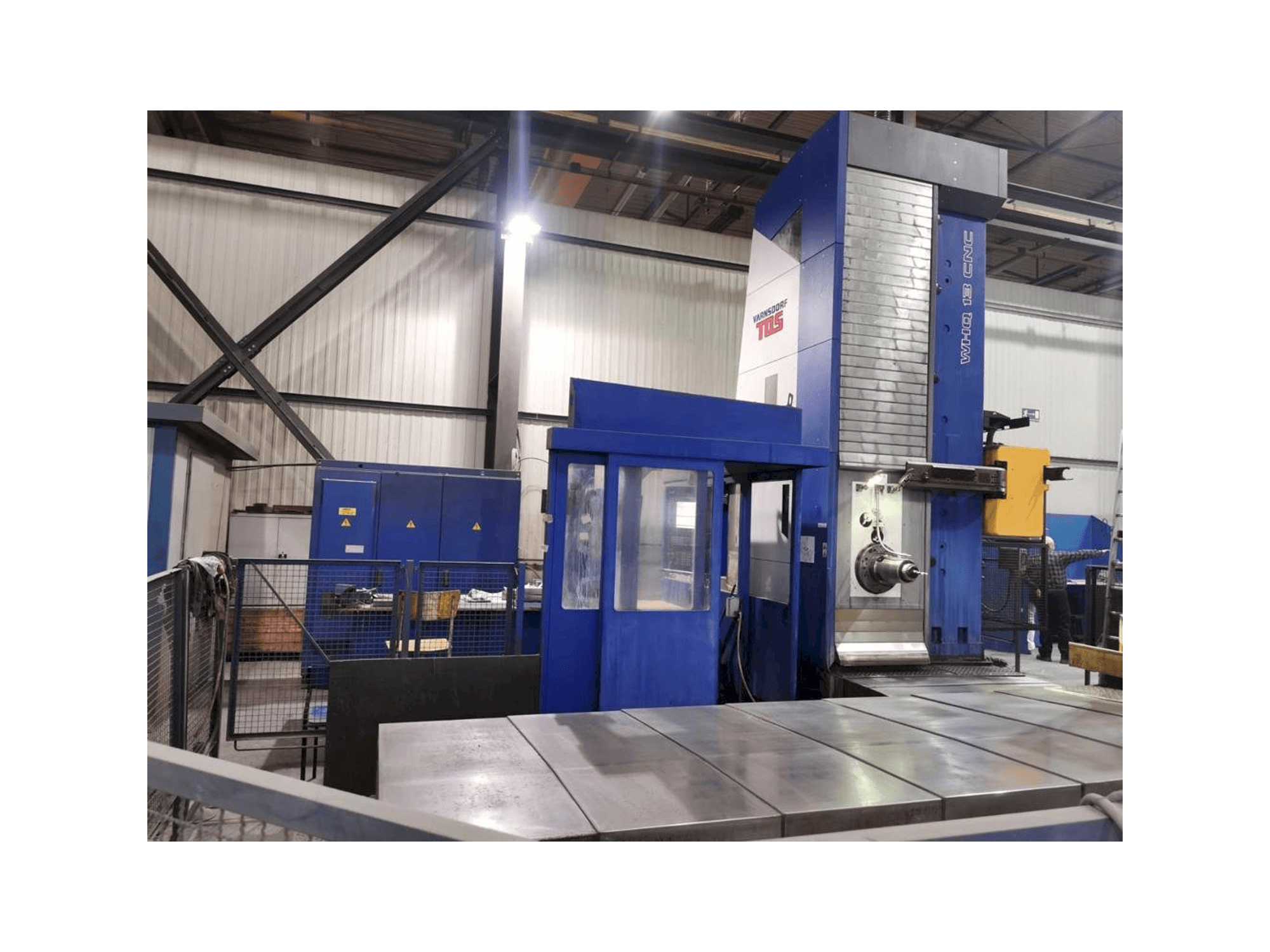

Front view of TOS VARNSDORF WHQ 13 CNC  machine

TOS - VARNSDORF WHQ 13 CNCPL-MIL-TOS-2013-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

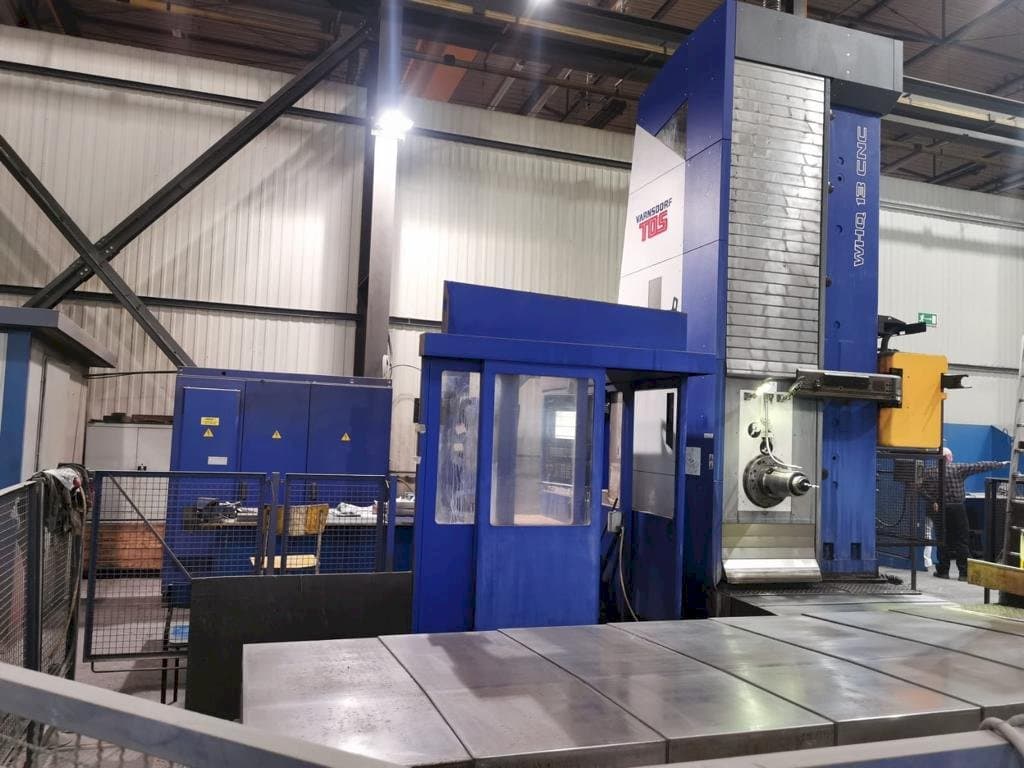

This TOS VARNSDORF WHQ 13 CNC horizontal milling and boring machine was manufactured in Czech Republic in the year 2013. It has been on for 46960 hours, of which 15726 are spindle hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This 5 axis machine can work with a spindle speed range 10-3000 rpm. It is in very good working conditions. This machine has its full documentation available and is ready for tests.

Overview

  • brand: TOS
  • year: 2013
  • MODEL: VARNSDORF WHQ 13 CNC
  • production hours: 46960
  • application type: Milling
  • Location: Poland
  • machine type: Boring Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TOS VARNSDORF WHQ 13 CNC

General Data

  • Measurements width: 6950 MM
  • Measurements depth: 7950 MM
  • Measurements height: 4995 mm
  • Machine weight: 38650 kg

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 840D

Main drive

  • Spindle speed range: 10-3000 1/MIN
  • Tool taper: ISO 50
  • Number of axis: 5

Movement

  • X-AXIS Movement: 4000 mm
  • Y-AXIS Movement: 2500 mm
  • Z-AXIS Movement: 1600 mm
  • W-Axis Movement: 800 mm

Workpiece

  • Workpiece weight: 12000 kg

Table

  • Outer length: 1800 MM
  • Outer width: 2500 mm

Turret

  • Number of tool slots: 40 pcs

    Additional Equipment

    • - measurement probe
    • - 2 axis head
    • - cooling through the spindle

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Dia. Of the work spindle 130 mm
      • Qualitative Machine Benefits:
        • - Machine in very good working conditions
        • - Full documentation available
        • - Ready for tests

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
