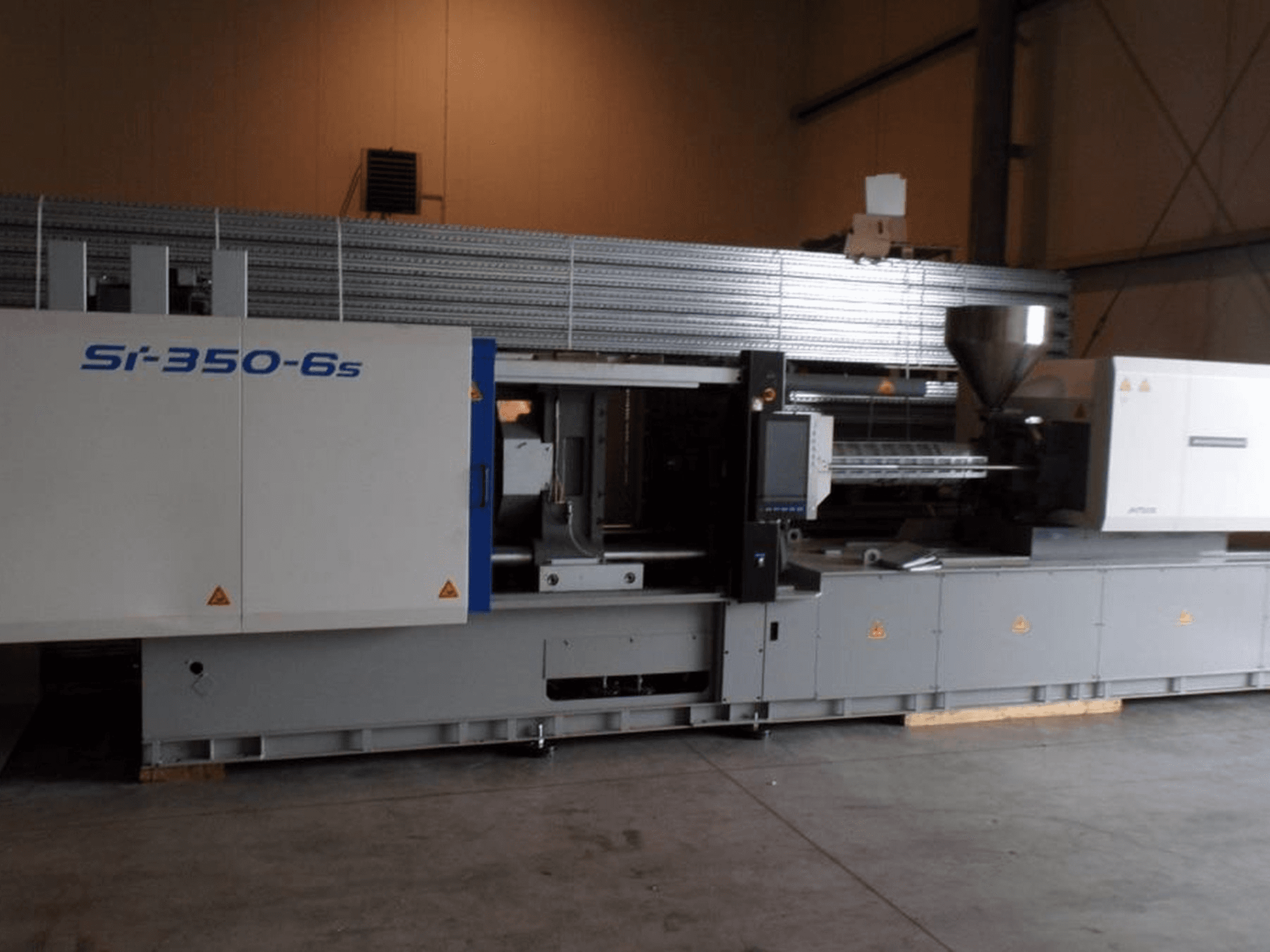

This Toyo Si-350-6S JH750E-PACK was manufactured in 2022. It features a clamping force of 3430 kN, screw diameter of 60 mm, and an injection speed of 300 mm/s. With a total installed power of 85.6 kW and dimensions of 8073 × 1930 × 2397 mm, it represents a robust choice for precision molding. Contact us for more information about this machine.
Overview
- brand: Toyo
- year: 2022
- MODEL: Si-350-6S JH750E-PACK
- application type: Injection Moulding
- Location: Poland
- machine type: Electrical Injection Moulding Machine
Technical Information - Toyo Si-350-6S JH750E-PACK
Dimensions
- Machine Height: 2397 mm
- Machine Length: 8073 mm
- Machine Weight: 21000 kg
Technical Specification
- Clamping Force: 3430 kN
- Screw Diameter: 60 mm
Additional Information
Installed heating power: 27.5 kW
Total installed power: 85.6 kW
Control system: SYSTEM 800
Interfaces: Euromap 67, Euromap 73
Clamping unit:
Distance between tie bars: 810 × 810 mm
Platen dimensions: 1050 × 1050 mm
Opening stroke: 700 mm
Mold height (min / max): 300 / 770 mm
Ejector stroke: 150 mm
Ejector force: 60.0 kN
Injection unit:
Injection speed: 300 mm/s
Injection pressure: 220 MPa
Holding pressure: 200 MPa
Theoretical injection volume: 763 cm³
Injection rate: 848 cm³/s
PS injection capacity: 210 kg/h
Screw speed: 0–350 rpm
Injection stroke: 270 mm
Nozzle contact force: 39.0 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
