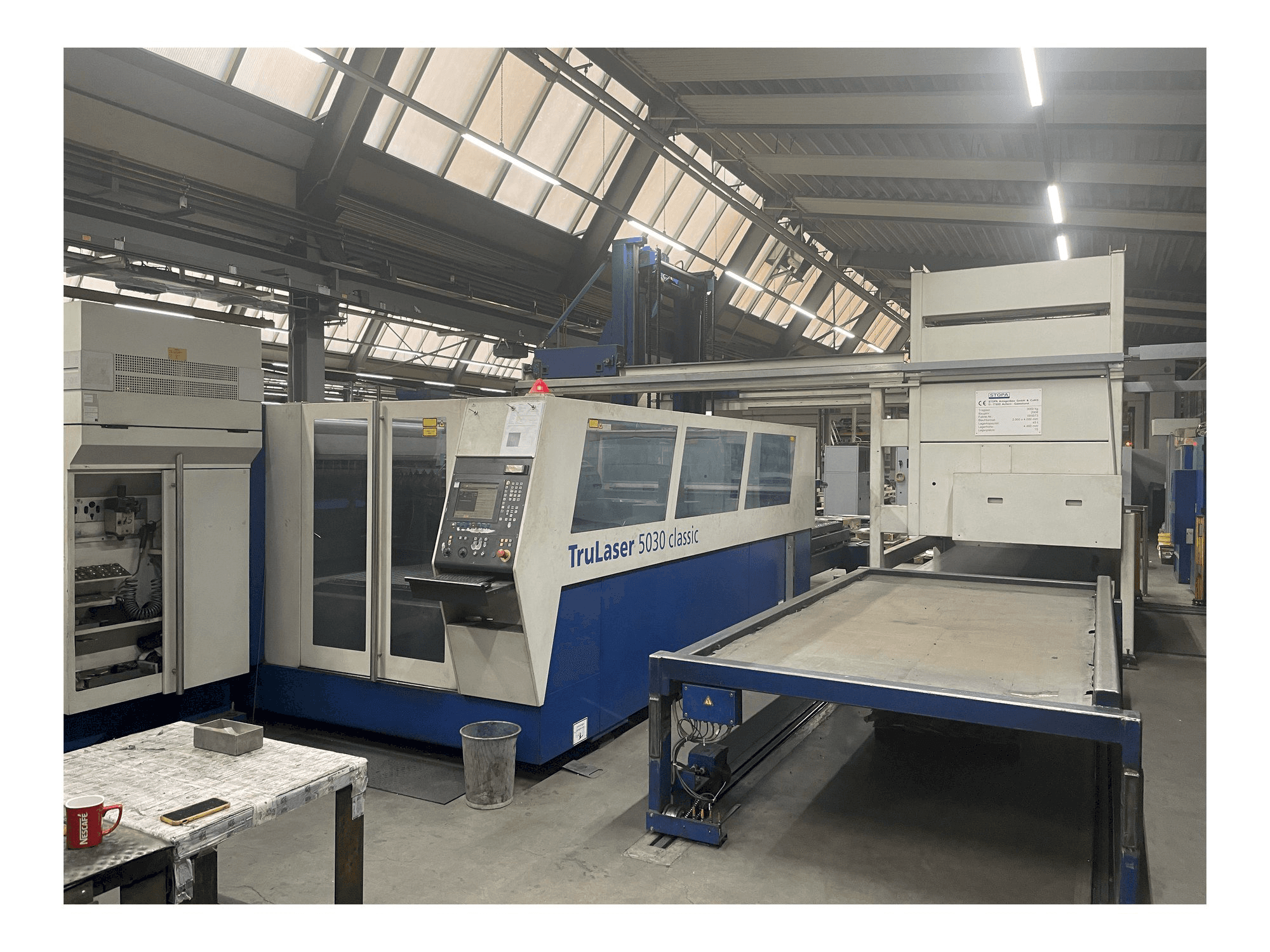

Right view of Trumpf L5030 Classic + Pallet Master  machine

TRUMPF L5030 Classic + Pallet Master

TRUMPF - L5030 Classic + Pallet Master

2007

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This TRUMPF L5030 Classic + Pallet Master Laser cutting machine was manufactured in the year in Switzerland and has 76018 Operating hours laser on, of which 41047 are operating hours beam on. It is equipped with a TAST TERMINAL control unit. The machine has a laser power of 5,0 kW.

Overview

  • brand: TRUMPF
  • year: 2007
  • MODEL: L5030 Classic + Pallet Master
  • production hours: 76018
  • application type: Laser Cutting
  • Location: Germany
  • machine type: Laser Cutting Machines (CO2)
  • availability: Sold
  • control unit brand: Siemens
  • GINDUMAC ID: DE-LAS-TRU-2007-00001

Technical Information

General Data

  • Measurements width: 11100 mm
  • Measurements depth: 4600 mm
  • Measurements height: 2400 mm
  • Machine weight: 12000 kg

Control Unit

  • Brand: Siemens
  • Model: 840 D

Main drive

  • Laserpower: 5,0 kW

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 20 mm
  • Aluminum: 12 mm

Media

  • Power consumption: 105 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Working area laser operation: 3000 x 1500 x 115 mm
      • - Standard equipment - closed machine frame with integrated laser unit - gantry drive in combination with linear drives - automatic pallet changer - longitudinal conveyor belt
      • - Work area lighting - pcs position laser diode - oil spraying device - hi-las - hi-las plus - pms trumpf laser: - co2 laser tfl 5000
      • - Cooling unit - high-frequency excitation - laser power control - programmable cutting gas pressure setting - dias iii
      • - Autolas plus - oil spraying device for safe thick sheet processing - automatic switch-off - programmable power cycles
      • - Logbook function laser control: - siemens sinumerik 840 d - automatic switch-off - capacitive height control
      • - Contourlas - sprintlas - teleservice - 3. 5" floppy disc drive - rj-45 connection safety: - light barriers
      • - Automation: palletmaster (stopa) - 10 storage locations - 10 auxiliary machine pallets - vacuum suction cups for loading raw sheet metal - clearance station, spare control cabinet and spare control unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
