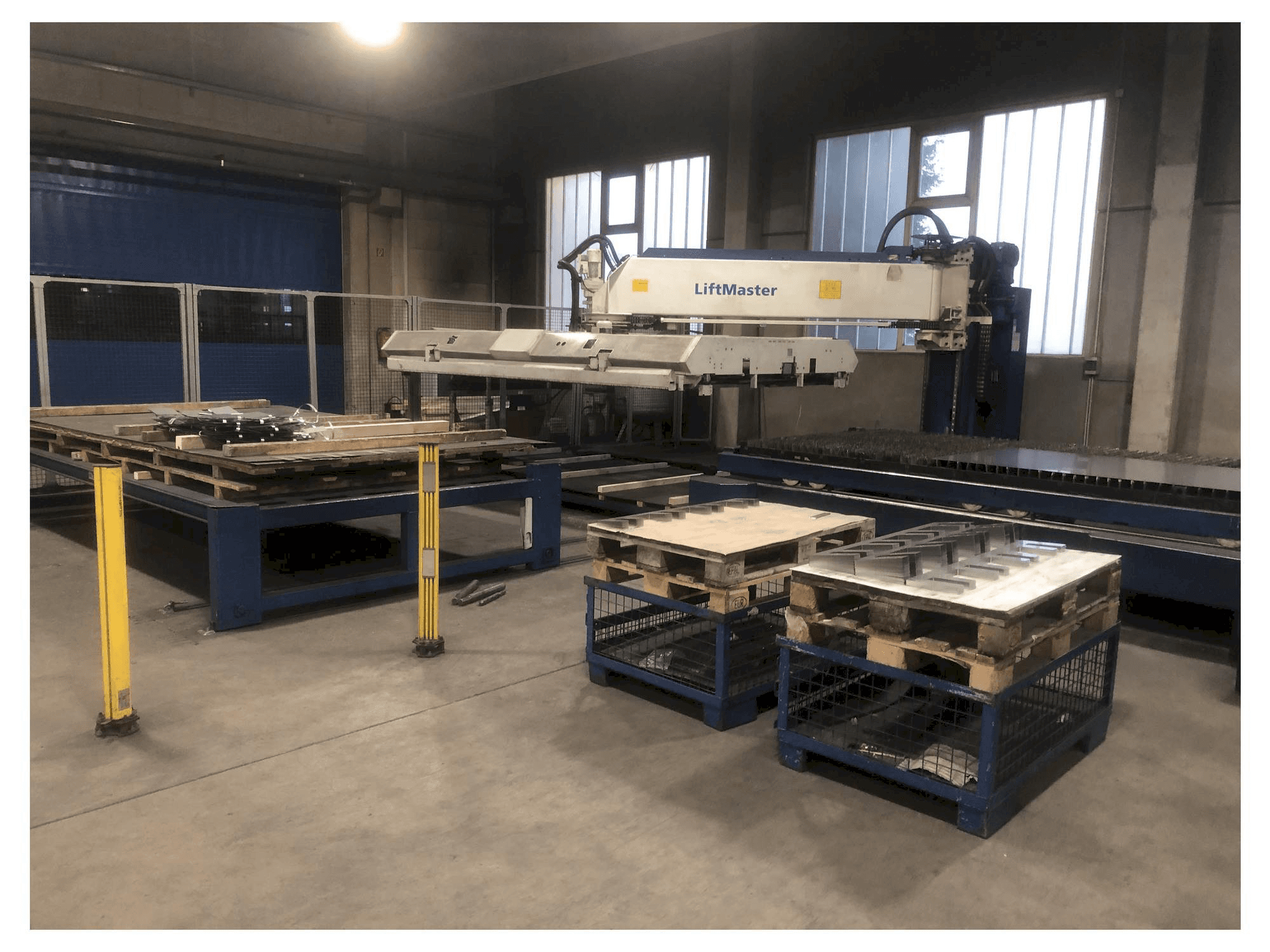

Front view of TRUMPF TruLaser 5040 + Liftmaster  machine

TRUMPF TruLaser 5040 + Liftmaster

TRUMPF - TruLaser 5040 + Liftmaster

2007

24,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This TRUMPF TruLaser 5040 + Liftmaster Laser Cutting machine was made in 2007. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a laser power of 5,0 kW.

Overview

  • brand: TRUMPF
  • year: 2007
  • MODEL: TruLaser 5040 + Liftmaster
  • application type: Laser Cutting
  • Location: Germany
  • machine type: Laser Cutting Machines (CO2)
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: DE-LAS-TRU-2007-00003

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 840D

Main drive

  • Laserpower: 5,0 kW

Workpiece

  • Workpiece x: 4000 mm
  • Workpiece y: 2000 mm
  • Workpiece z: 110 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Software licence is included
      • - Fast processing with sprintline in all sheet thicknesses, programmable power cycles
      • - Contourline for the production of small holes
      • - Pierceline
      • - Spraying device for safe thick sheet processing
      • - Automatic sheet metal outer edge detection
      • - Safety: multi-beam light barriers, beam guidance
      • - Nitroline high-pressure cutting
      • - Automatic focus position adjustment focusline - laser power control
      • - Position laser diode
    • Qualitative Machine Benefits:
      • - Cutting gas pressure setting programmable
      • - Controlline capacitive height control and process control
      • - Laser cutting head with 7. 5" lens and laser cutting head with 10" lens for truflow 6000
      • - Laser cutting head with 5" lens and laser cutting head with 7. 5" lens for truflow 5oo0
      • - Cutting head quick-change device
      • - Drives: gantry drive in combination with linear drives direct drives
      • - Automatic pallet changer
      • - Closed machine frame with integrated laser unit - laser unit: truflow 5000 high-frequency excited co2 laser, maintenance-free turbo radial fan, cooling unit, logbook function
      • - Fully encapsulated and ventilated with nitrogen,
      • - Longitudinal conveyor belt for small parts/waste

    Extra information

    • - Working area: 4OO0 x 2000 x 1 15 mm Sta nd equipment: - PlasmaLine - Microweld - Automatic nozzle cleaning - Automatic switch-off - Work area lighting - Sinumerik 840D control system: Open control system on PC basis, simple operation, online help, integrated e-shop, diagnostic functions, maintenance logbook, technology data, teleservice - Workshop programming monitoring system, multi-chamber extraction system and compact dust extractor, safety cabin - Installation, commissioning and instruction - RJ45 network connection via teleservice installation - 3.5" floppy disk drive - TFT color screen Ouer conveyor belt left with container LiftMaster Peeling device and sheet thickness gauge Pallet handling extension (P) + 1x double trolley machine have a maintenance contract with Trumpf quartz tube replacement was carried out in 2022/2023. 00% power of 5KW.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
