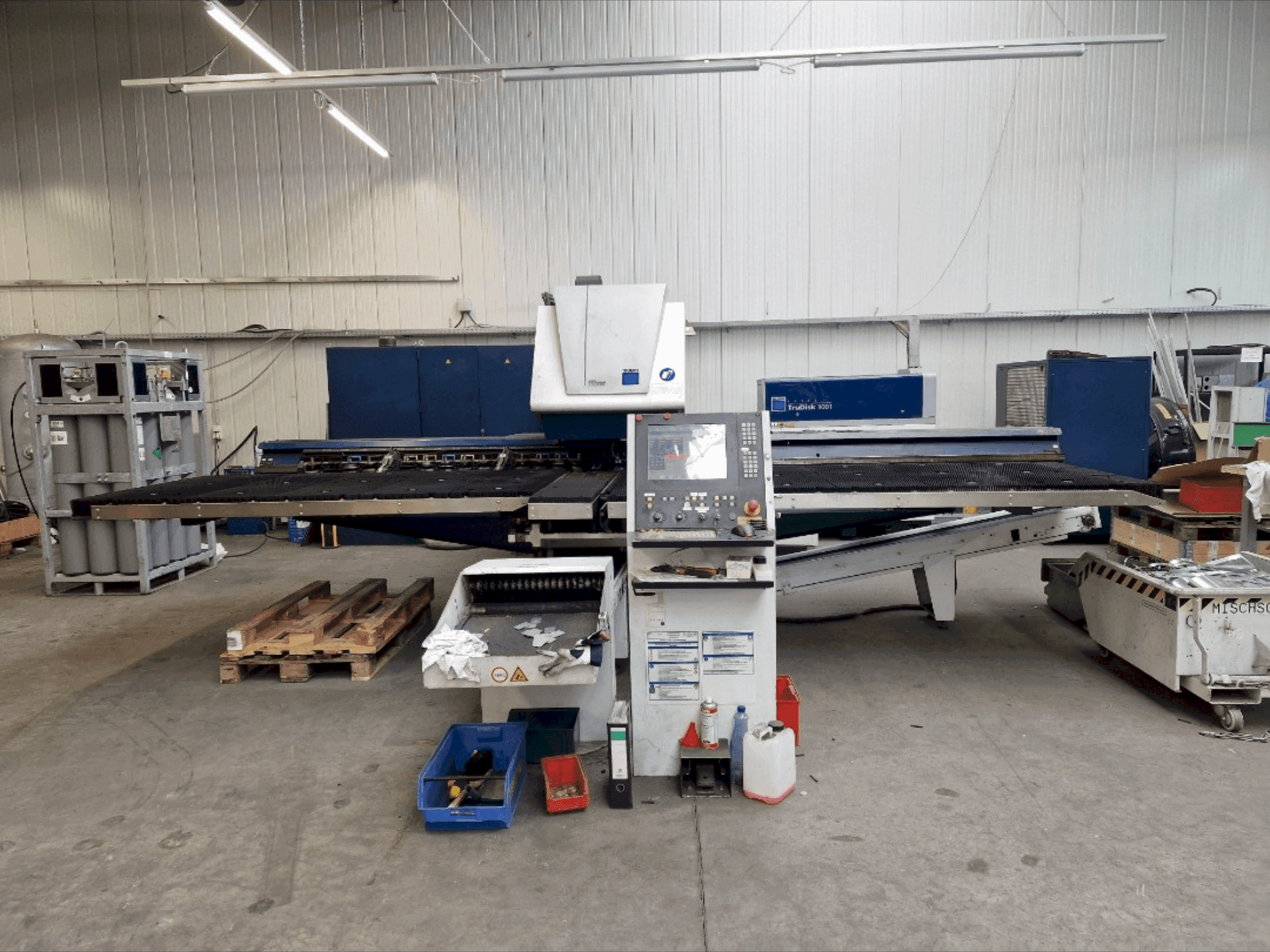

This TRUMPF TruMatic 3000 Fiber was manufactured in 2011. Equipped with a 3000 W TruDisk 3001 laser, it offers a generous working range of 2550x1270 mm for both punching and laser operations. Capable of handling workpieces up to 120 kg and sheet thicknesses of 4.0/6.4 mm, it achieves a max punching force of 165 kN. With ample tool capacity, featuring 21 linear magazine slots, consider the opportunity to buy this TRUMPF TruMatic 3000 Fiber punch-laser combination machine. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2011
- MODEL: TruMatic 3000 Fiber
- production hours: 73936
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
- availability: Immediately
- control unit brand: BOSCH
Technical Information - TRUMPF TruMatic 3000 Fiber
General Data
- Measurements width: 7875 mm
- Measurements depth: 6600 mm
- Measurements height: 2230 mm
- Machine weight: 13000 kg
Control Unit
- Brand: BOSCH
- Model: CML45
Movement
- X-AXIS Movement: 2550 MM
- Y-AXIS Movement: 1270 MM
Additional Equipment
- - Number of protective tools: 18/2/1/ Number of clamps: 2/4
Additional Information
- Technical Machine Benefits:
- - Mains: 400 v
- - Connected load: 18 kva
- - Control voltage: 24 v
- - Tool holder: punch holder/die holder
- - Stripper holder: small version
- - Max. Cutting force: 165 kn
- - Laser power: trudisk 3001 3000 w/ max punching force: 165 kn /max sheet thickness: 4. 0/6. 4 mm
- - Max sheet thickness: 4. 0/6. 4 mm
- - Programming software is not included /tools: the tool holder punch holder/die holder, stripper holder is the small version
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
