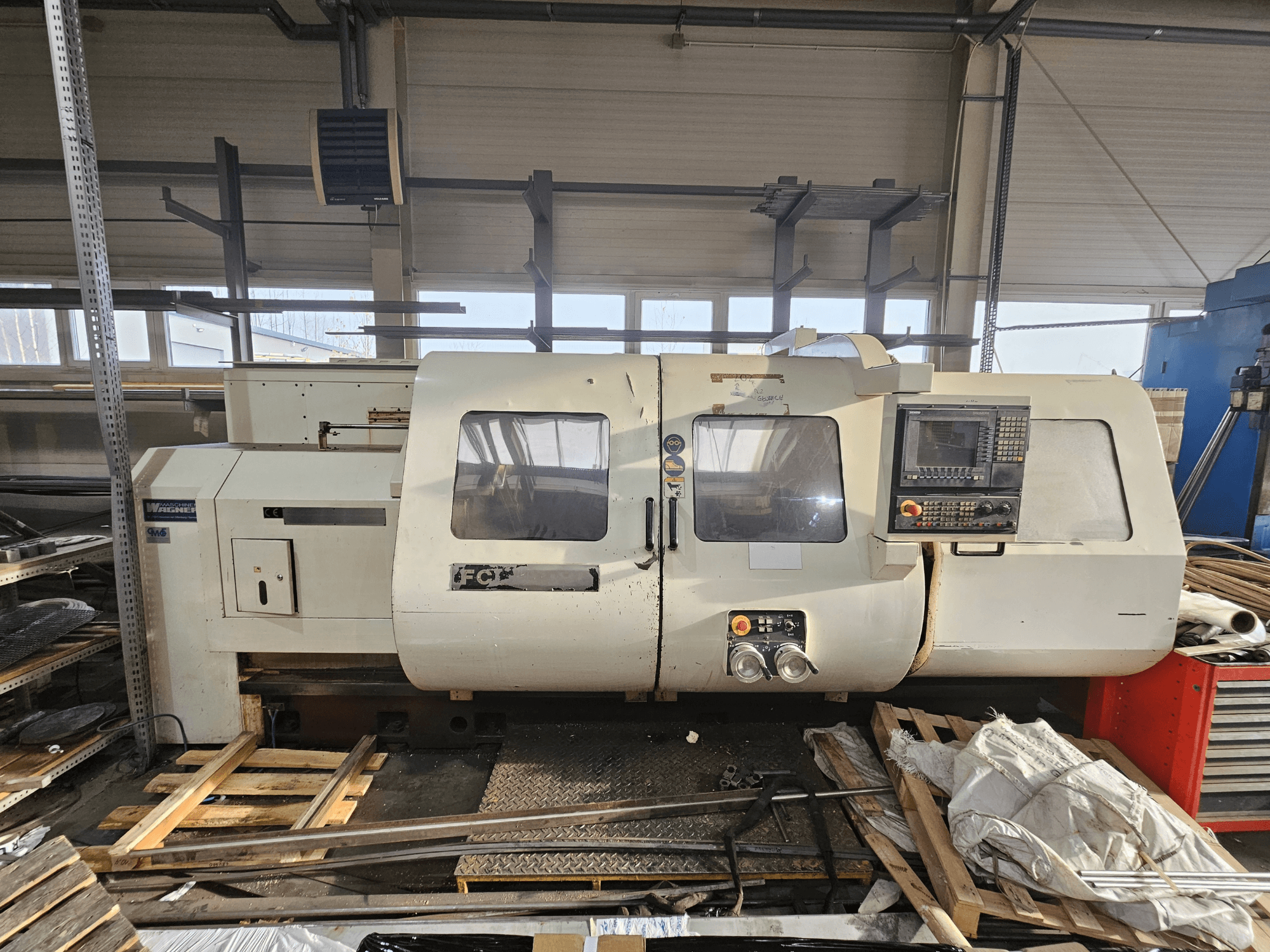

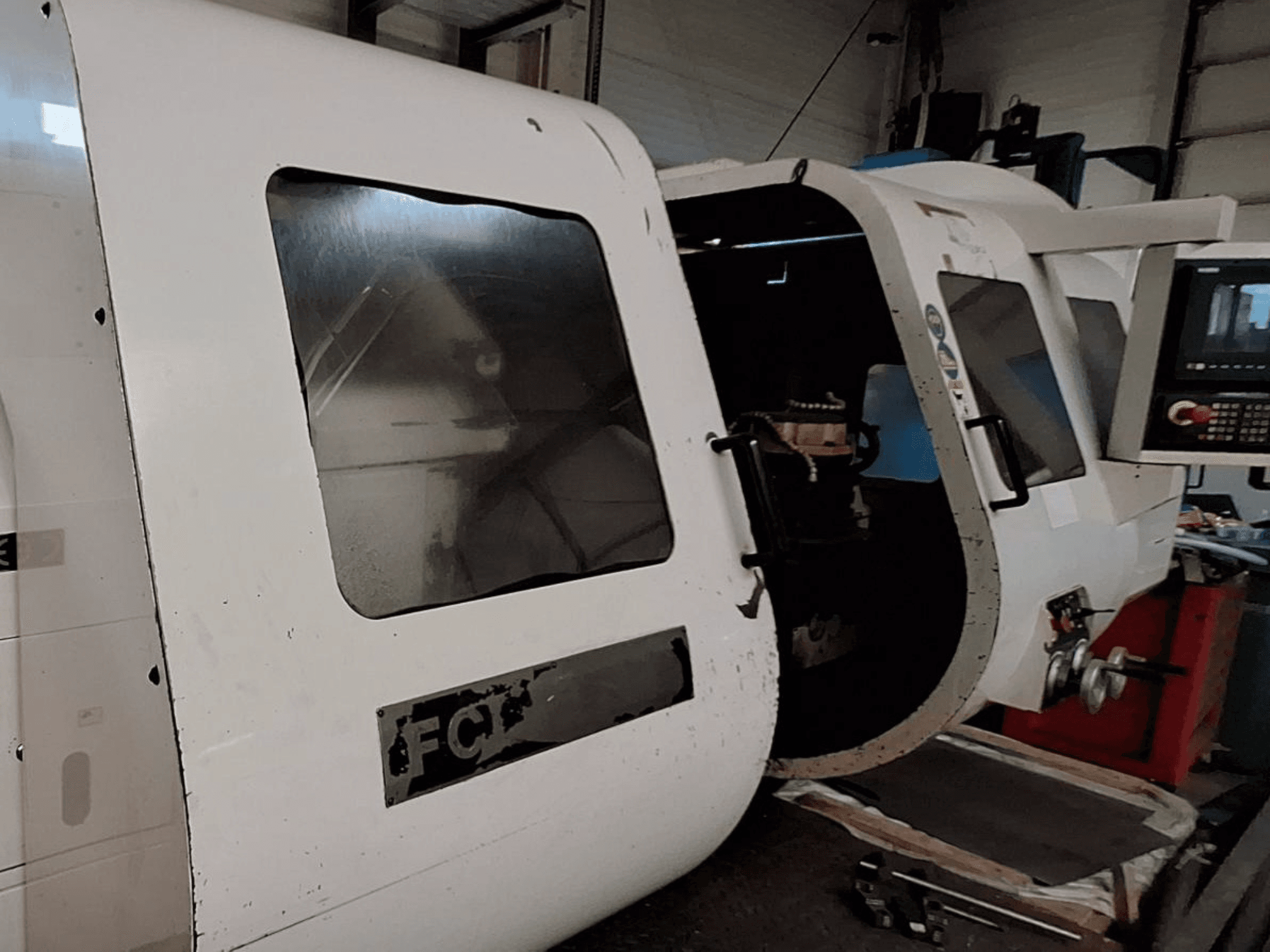

This WAGNER FCL 3280 was manufactured in 2002. It features a spindle bore of 134 mm and a spindle speed range up to 1200 rpm. The machine supports a maximum workpiece weight of 1800 kg with tailstock and steady rest. It offers rapid traverse rates of 10,000 mm/min for both Z and X axes. If you are looking to get high-quality turning capabilities, consider the WAGNER FCL 3280 machine we have for sale. Contact us for more information.
Overview
- brand: WAGNER
- year: 2002
- MODEL: FCL 3280
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - WAGNER FCL 3280
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Height: 2200 mm
- Machine Length: 4660 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 1200 RPM
Additional Information
Turning capacity
Center height: 405 mm
Max. swing over bed: 815 mm
Max. swing over cross slide: 470 mm
Spindle
Spindle bore: 134 mm
Bed & tailstock
Bed width: 510 mm
Tailstock adjustment: Manual (Yes)
Tailstock taper: MK6
Quill travel: 250 mm
Quill diameter: 100 mm
Feed & rapid traverse
X-axis feed rate: 0–5000 mm/min
Z-axis feed rate: 0–5000 mm/min
X-axis rapid traverse: 10,000 mm/min
Z-axis rapid traverse: 10,000 mm/min
Workpiece capacity
Max. workpiece weight without tailstock & steady rest: 500 kg
With tailstock: 1200 kg
With tailstock & steady rest: 1800 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
