- ➤ Used XYZ TC400 - 2023 - Lathe For sale | gindumac.com

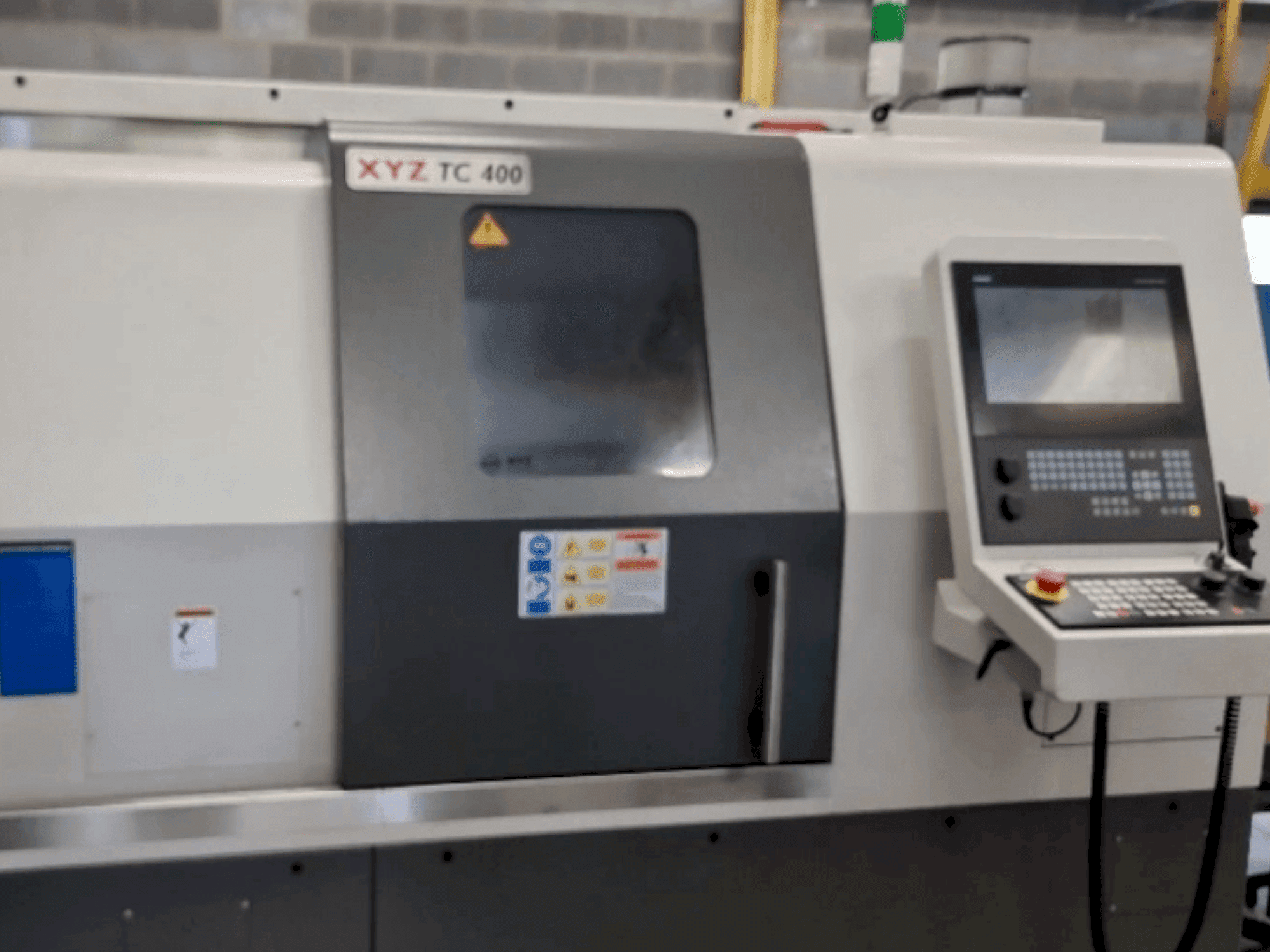

This XYZ TC400 lathe was manufactured in 2023. It features a spindle speed of 3,300 rpm, a maximum turning diameter of 400mm, and a maximum turning length of 600mm. The x-axis travel is 265mm, and the z-axis travel is 650mm. Equipped with a 12-station turret (40 VDI), it is a robust choice for turning applications. The XYZ TC400 machine we have for sale. Contact us for more information.
Overview
- brand: XYZ
- year: 2023
- MODEL: TC 400
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- availability: Immediately
Technical Information - XYZ TC 400
General Data
- Machine weight: 5700 kg
Main drive
- Spindle speed range: 3300 rpm 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 265 mm
- Z-AXIS Movement: 650 mm
Turret
- Number of turrets: 1
Tools
- Number of stations: 12
- Type of tool holder: 40 VDI
Additional Information
- Technical Machine Benefits:
- - Spindle nose: a2-8
- - Max. Turning diameter: 400mm
- - Max. Turning length: 600mm
- - Max. Swing: 600mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
