Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
AMADA - AC2510 NTPL-PUN-AMA-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used AMADA AC2510 NT For Sale | gindumac.com

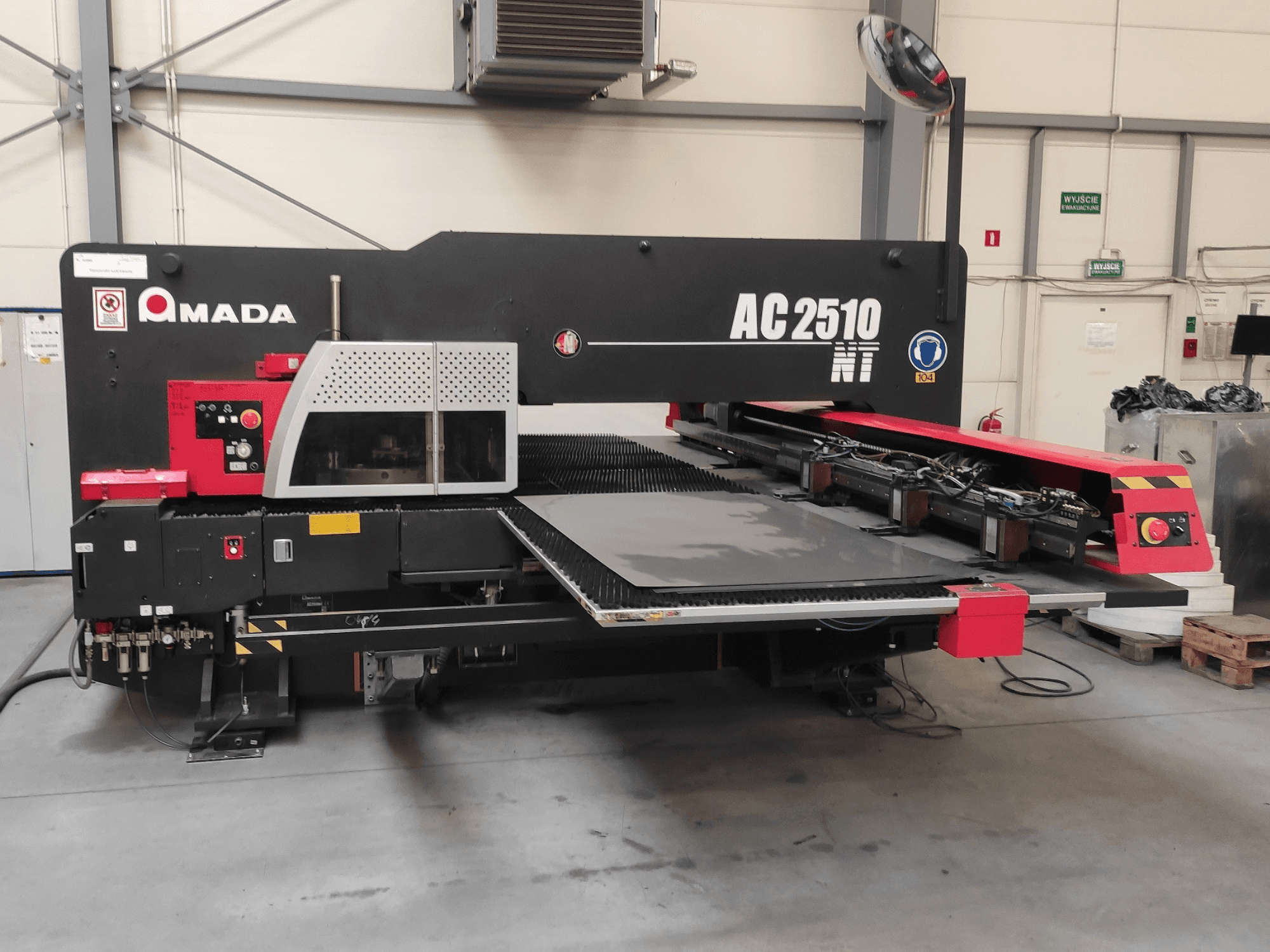

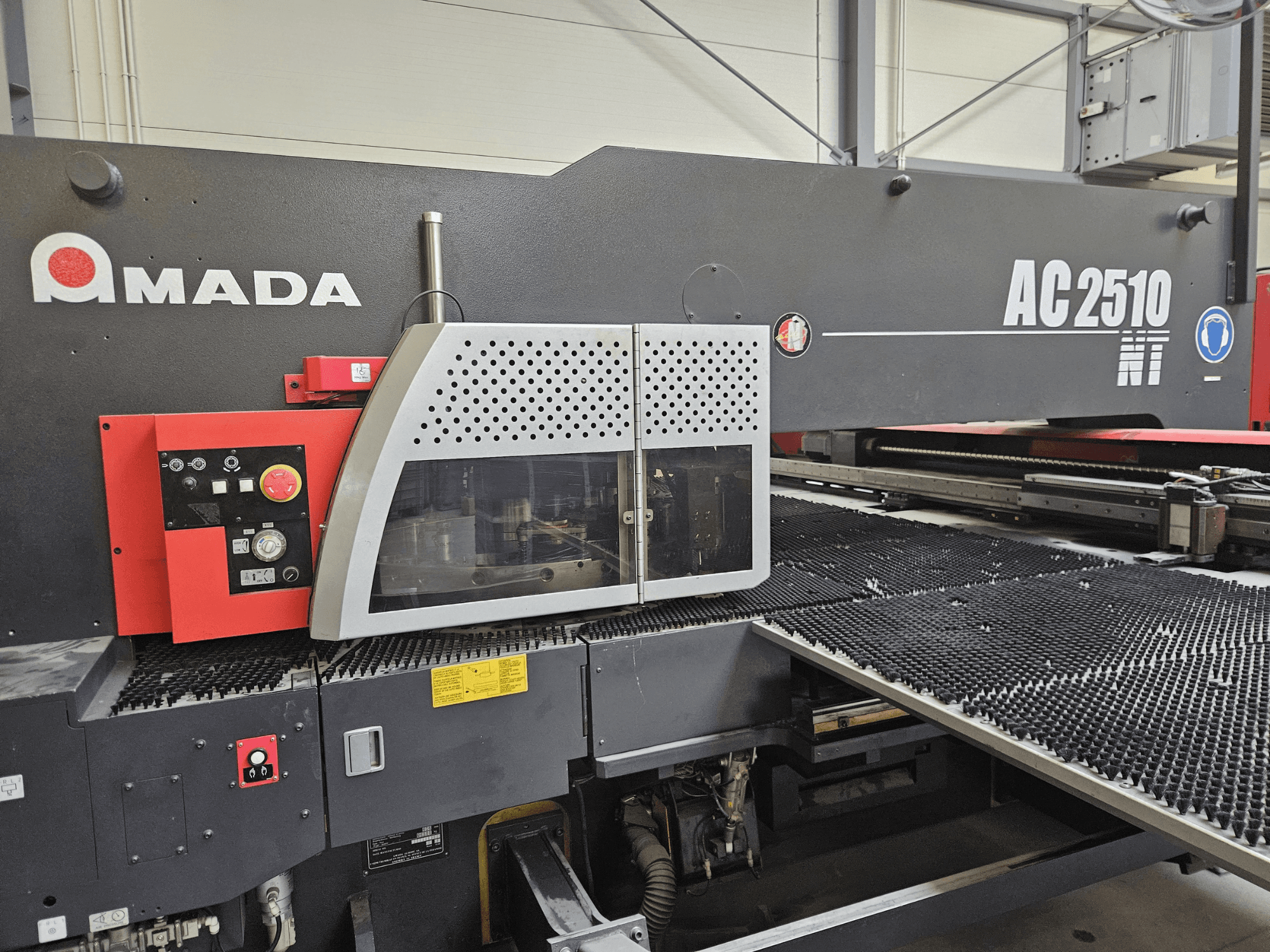

This AMADA AC2510 NT was manufactured in 2008. It features a punching force of 200 kN and a turret capacity of 51 stations. It can handle sheet sizes up to 1270 × 5000 mm and thicknesses up to 3.2 mm. The machine supports a maximum sheet weight of 150 kg and offers high-speed turret indexing. If you are looking to get high-quality punching capabilities, consider the AMADA AC2510 NT machine we have for sale. Contact us for more information.
Overview
- brand: AMADA
- year: 2008
- MODEL: AC2510 NT
- production hours: 24490
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
- control unit brand: AMADA
Technical Information - AMADA AC2510 NT
Control Unit
- Control Brand: AMADA
- Control Model: AMNC-F
Dimensions
- Machine Height: 2082 mm
- Machine Length: 4165 mm
- Machine Weight: 13000 kg
Technical Specification
- Punching Force: 200 Kn
Additional Information
Turret capacity: 51 stations
Maximum sheet size: 1270 × 5000 mm
Maximum sheet thickness: 3.2 mm (mild steel)
Maximum sheet weight:
50 kg (feed speed F1)
150 kg (feed speed F4)
X-axis travel: 2500 mm
Y-axis travel: 1270 mm
Positioning accuracy: ±0.1 mm
Strokes per minute:
25.4 mm pitch (5 mm stroke, X-axis): 350 min⁻¹
25.4 mm pitch (5 mm stroke, Y-axis): 260 min⁻¹
Maximum stroke length: 42 mm
Maximum feed speed:
X-axis: 80 m/min
Y-axis: 60 m/min
Turret indexing speed: 30 min⁻¹
Electrical connection power: 19 kVA
Machine width: 5120 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
