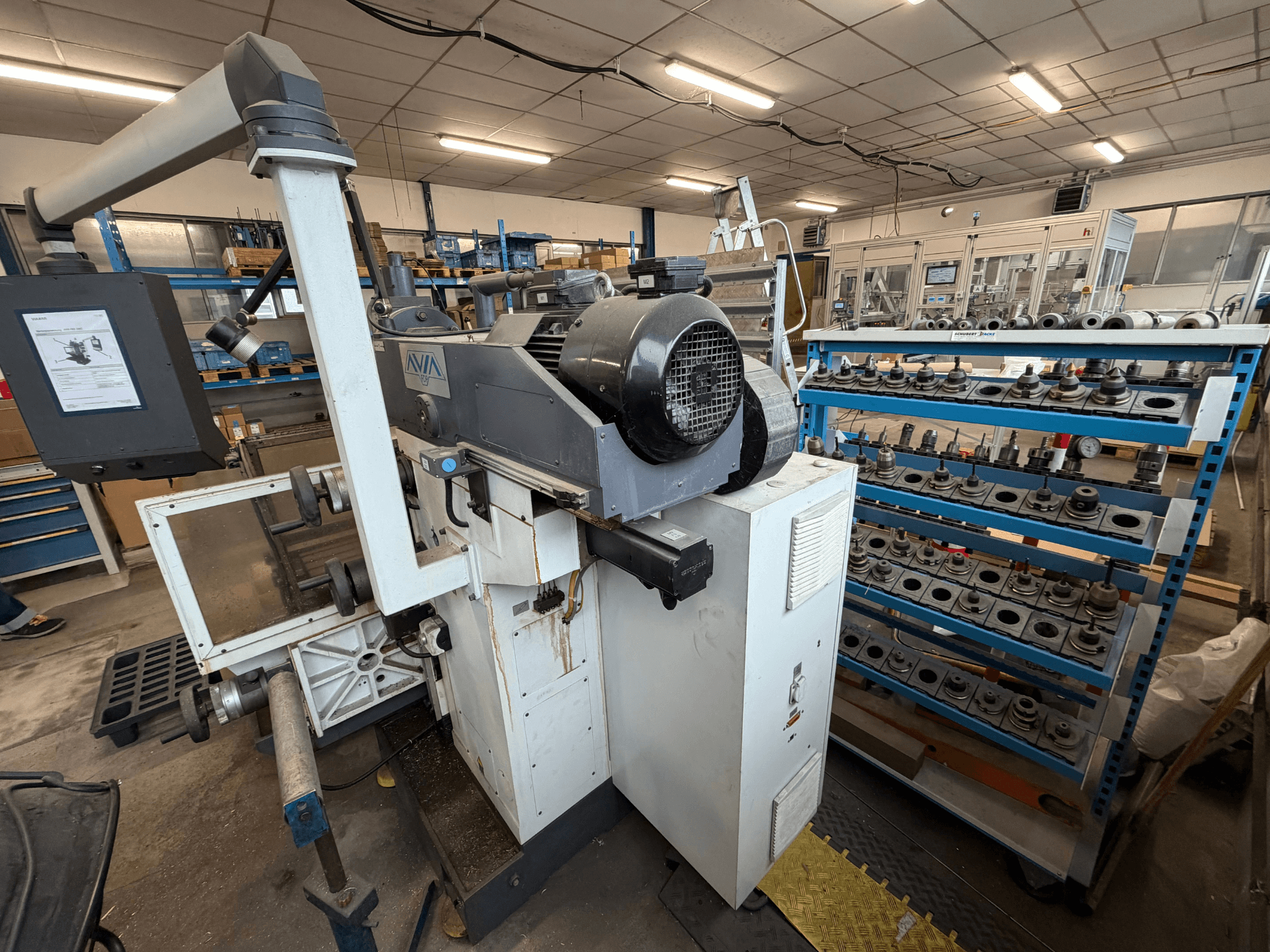

This 3-axis Avia FNX30NC was manufactured in 2012. It features a maximum spindle speed of 3000 rpm and can accommodate tools with a maximum diameter of 125 mm and weight of 7 kg. The machine includes a substantial set of tooling stored on a blue multi-tier tool rack, a machine vice, and a protective workspace enclosure. If you are looking to get high-quality machining capabilities, consider the Avia FNX30NC universal machining centre we have for sale. Contact us for further details.
Overview
- brand: Avia
- year: 2012
- MODEL: FNX30NC
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Avia FNX30NC
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Machine Weight: 1750 kg
Movement
- Number of Axes: 3
- X-axis Travel: 400 mm
- Y-axis Travel: 315 mm
- Z-axis Travel: 350 mm
Technical Specification
- Spindle Speed: 3000 RPM
Additional Information
- Rated Voltage: 3x 400 VAC
- Frequency: 50 Hz
- Rated Current: 20 A
- Control Voltage: 24 V
- Voltage for Machine Lamps: 24 V
- Max Diameter of Tool: 125 mm
- Max Tool Weight: 7 kg
- Number of Circuit Diagram: F12-17-00101A
- Enclosed Accessories: Includes a substantial set of tooling stored on a blue multi-tier tool rack, machine vice, and protective workspace enclosure.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
