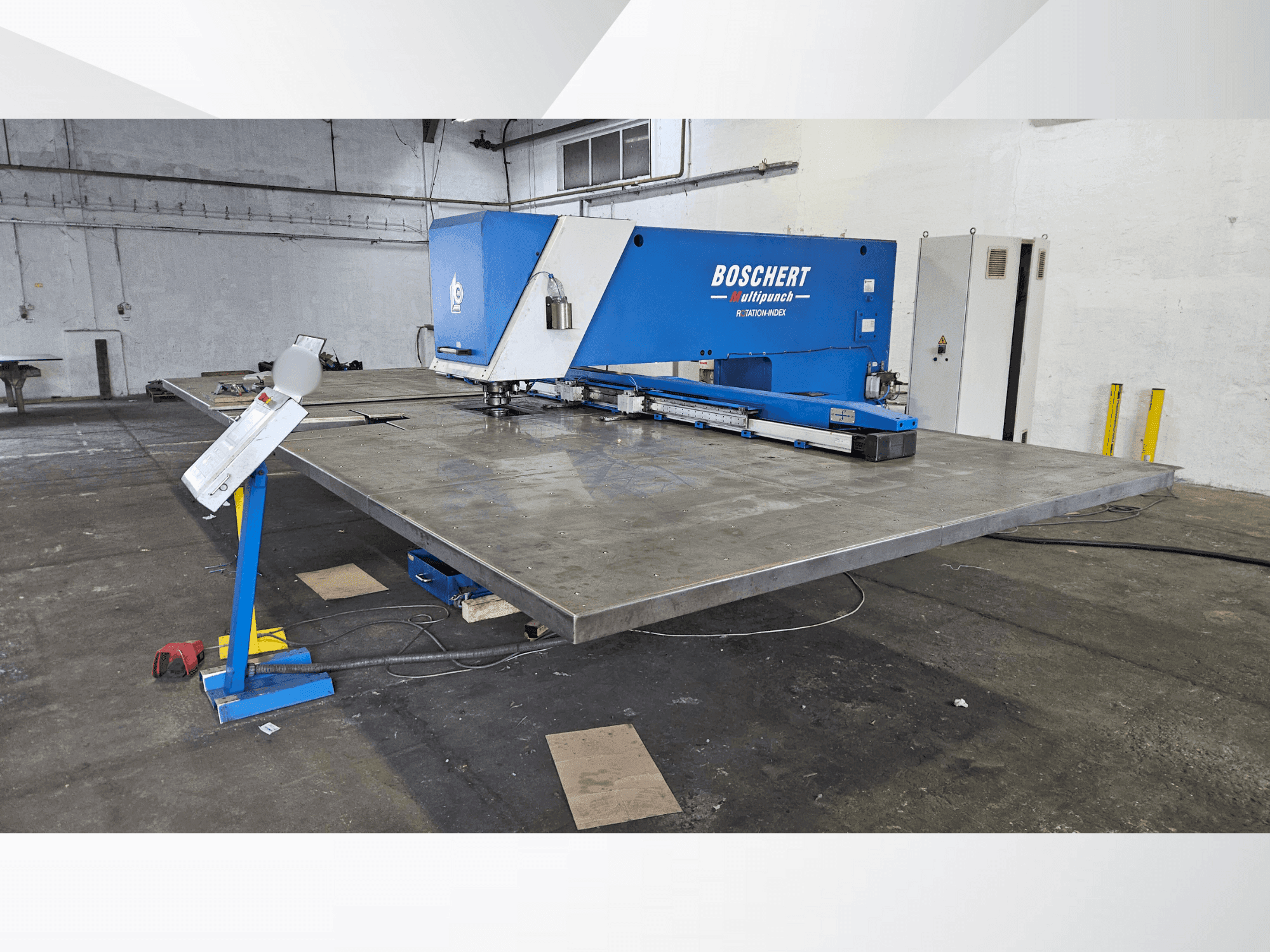

BOSCHERT - Multipunch 1500 x 3000HU-PUN-BOS-2011-00001

Additional equipment

• 8 Station Automatic Tool Change tooling, system TRUMPF
• Rotation with stepless Index (360°) of all tools
• Up to 64 Tools available (with Revotools)
• Very short time for tool change
• All standard Trumpf tools may be used
• Clamp system for automatic material handling with 2 clamps
• Stepless programmable clamp positioning
• Automatic repositioning of the clamps with 2 sheet hold downs for sheets up to 9999 mm

Machine Benefits

Qualitative Machine Benefits

• The following retrofit has been done in the machine:
• Replacement of the x-axis linear bearing
• Replacement of the labod controller
• Replacement of the festo pneumatic cylinder
• Replacement of the pneumatic hoses
• Replacement of the gripper clip

Technical Machine Benefits

• Axial motion: x: 0 - 2580 mm y: 0 - 1310 mm
• Max. Positioning speed: 60 m/min
• Adjustable positioning speed
• Positioning accuracy of the stops: 0. 1 mm
• Y-axis with 2 ballscrew driven guide carriages left and right next to the machine table
• X-axis with ballscrew and 4 recirculating ball carriages

Extra Information

The machine is still under power
