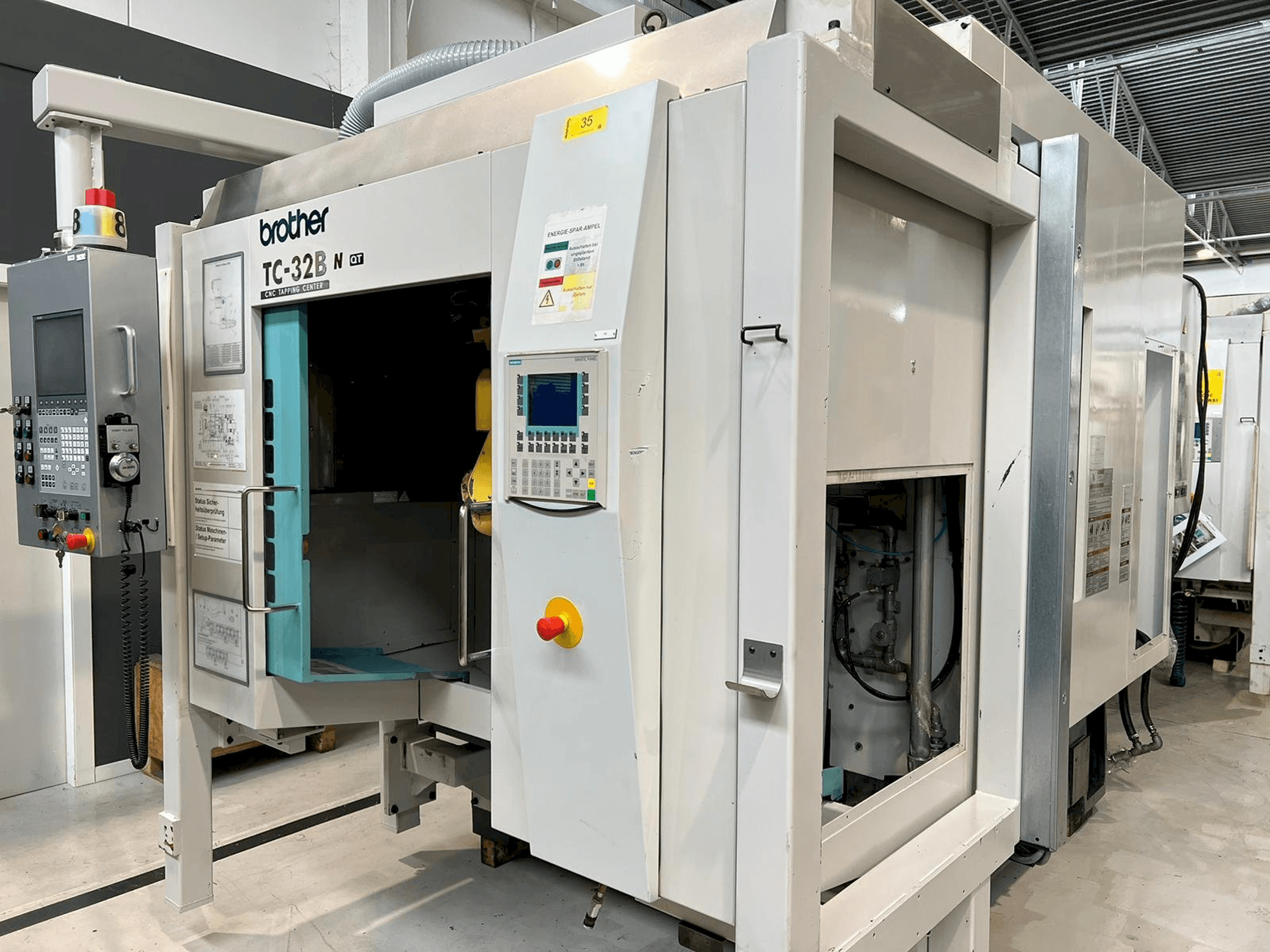

- Brother TC-32BN QT Vertical Machining center
This Brother TC-32BN QT Vertical Machining center was manufactured in the year 2008 in Japan. It is equipped with a Brother CNC INTERFACE UNIT control unit and has 3+2 axis. The machine has a spindle speed of 12000 rpm. There are 2 units available.
Overview
- brand: Brother
- year: 2008
- MODEL: TC-32BN QT
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Brother
Technical Information - Brother TC-32BN QT
Control Unit
- Brand: Brother
- Model: CNC INTERFACE UNIT
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 16 KW
- Tool taper: HSK A 40
- Number of axis: 3+2
Movement
- X-AXIS Movement: 550 mm
- Y-AXIS Movement: 400 MM
- Z-AXIS Movement: 415 mm
Table
- Outer length: 600 mm
- Outer width: 425 MM
- Table load: 200 KG
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Working speed xyz 1-20000 mm/min.
- - Rapid stroke xyz 70 m/min.
- - Distance between table and spindle nose 645 mm.
- - Repeatability error +/- 0,003 mm.
- - Positioning error 0. 005 on 300 mm.
- - Table position 3,4/180°
- - Rigid tapping 8000 rpm max
- - Capacity mag. Tools 40 places
- - Random selection type
- - Tool change time 0,9 sec.
- Qualitative Machine Benefits:
- - Chip/chip time 2 sec.
- - Flyer
- - Spindle override
- - Work area lamp
- - Rotary table
- - Refrigeration through spindle
- - Fanuc arc mate 200 i b integrated robot
- - L-shaped palletizer
- - N. 2 lehman tables iv axis complete with counter support
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
