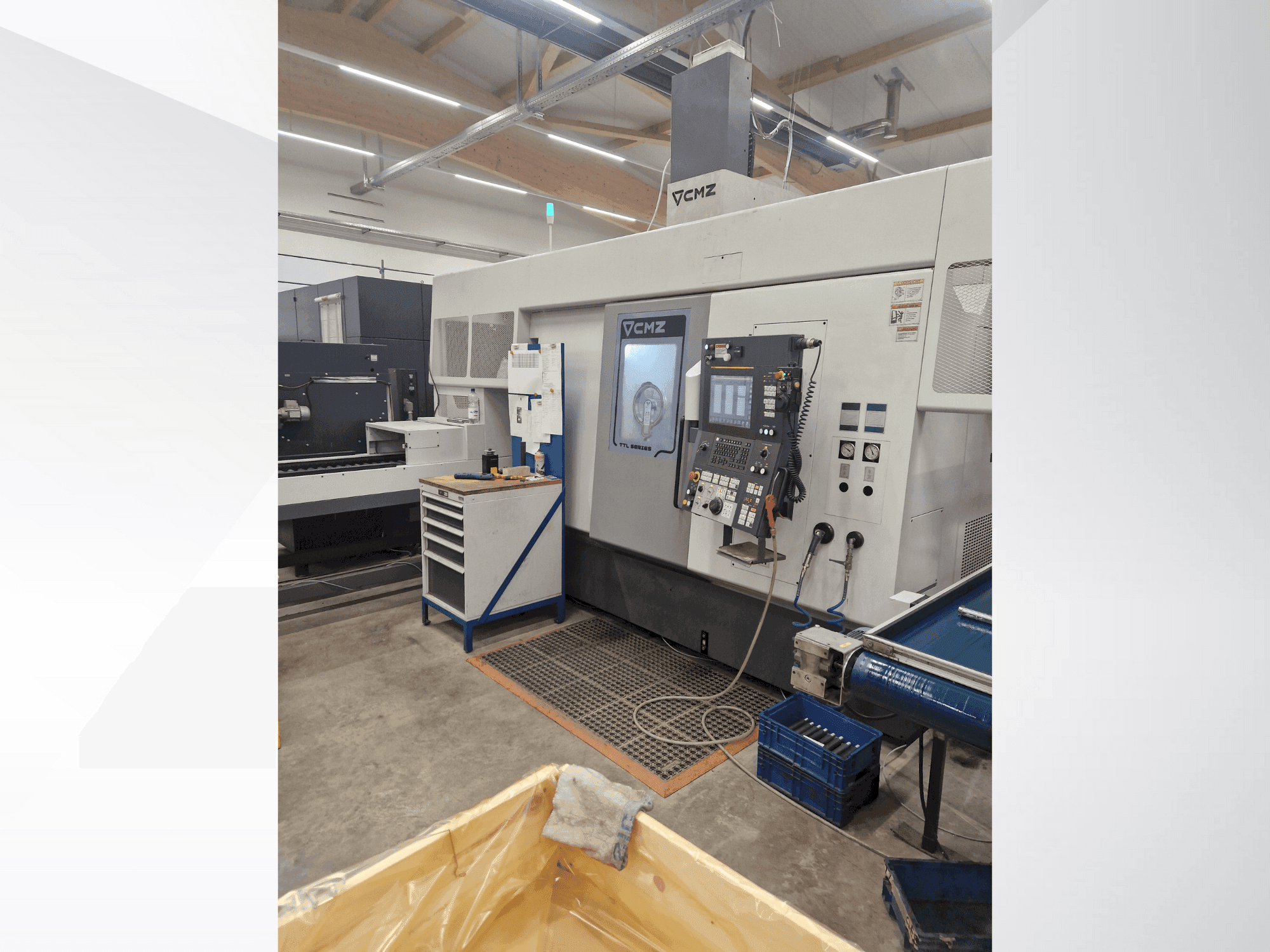

This 3-axis CMZ TTL-66-66-TTY-T2Y was manufactured in 2021, offering advanced horizontal turning capabilities. Ideal for complex and precise metalworking tasks, this machine ensures efficient production with its robust design and modern technology. If you are looking to get high-quality turning capabilities, consider the CMZ TTL-66-66-TTY-T2Y machine we have for sale. Contact us for more information.
Overview
- brand: CMZ
- year: 2021
- MODEL: TTL-66-66-TTY-T2Y
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - CMZ TTL-66-66-TTY-T2Y
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 11000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 167.5 mm
- Z-axis Travel: 515 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Machine Benefits
Technical Machine Benefits
- Voltage: 400 V AC
- Phases: 3 + N + PE
- Frequency: 50 Hz
- Maximum Power: 90 kVA
- Maximum Current: 125 A
- Pneumatic Pressure: 6 bar
- Machine Language: German
- Control System: Fanuc (G Codes Type A)
- Left Spindle Equipment: LPS system, Axial stop, Coolant supply through spindle, Collet chuck Hainbuch AXFIX 65 (standard) 2703/0008
- Right Spindle Equipment: LPS system, Coolant supply through spindle, Tailstock long version for live center CM 3, Collet chuck Hainbuch AXFIX 65 (standard) 2703/0008
- Tool Preset Device: Tool presetter included
- Chip Disposal: Rear chip conveyor with double chain
- Upper Tool Turret (T1): High-pressure coolant pump with 3 programmable stages (35, 15 & 6 bar), including 75µm filter
- Lower Tool Turret (T2): High-pressure coolant pump with 3 programmable stages (35, 15 & 6 bar), including 75µm filter
- Coolant Features: Coolant nozzles above spindles, Coolant washing nozzle, Tank level monitoring
- Monitoring Systems: Tool life management, Tool load monitoring
- Extraction System: Connection flange Ø150, Extraction unit LTA E120-X1-H with installation parts, hoses and support
- Automation / Gantry Loader: GL20-11 3-axis CNC Gantry Loader (travel path to both sides), Servo-controlled 2x180° double swivel gripper for shaft parts GLII, Special gantry enclosure
- Workpiece Handling: Workpiece carrier WS-700-3000 on front left side, WS-700 with 3 rows of V-guides (2 shafts per row), CMZ workpiece carrier for round and square material (V-support 90° version), Connection interface for customer unloading belt
- Tooling Holders Provided: 8x Double radial holders for tools 20x20 (310.04.092046), 6x Holders for boring tools Ø32 H75 (310.04.092060), 2x TTL/10400/02 Axial holders for driven tools ER32 with internal coolant 70bar (12000rpm), 2x TTL/10400/09 Radial holders for driven tools with internal coolant 70bar ER16 (Max 12000rpm)
- Gripper Jaws Included: Raw material jaws (32mm/30-35mm, 35mm/35-40mm, Square 30mm/30x30mm), Finished part jaws (32mm/30-35mm, 38-40mm/35-40mm, Square 30mm/30x30mm)
- rotating viewing window / machine status light
- Cmz requires a signal indicating that a part can be placed / output signal indicating that the conveyor can move freely
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
