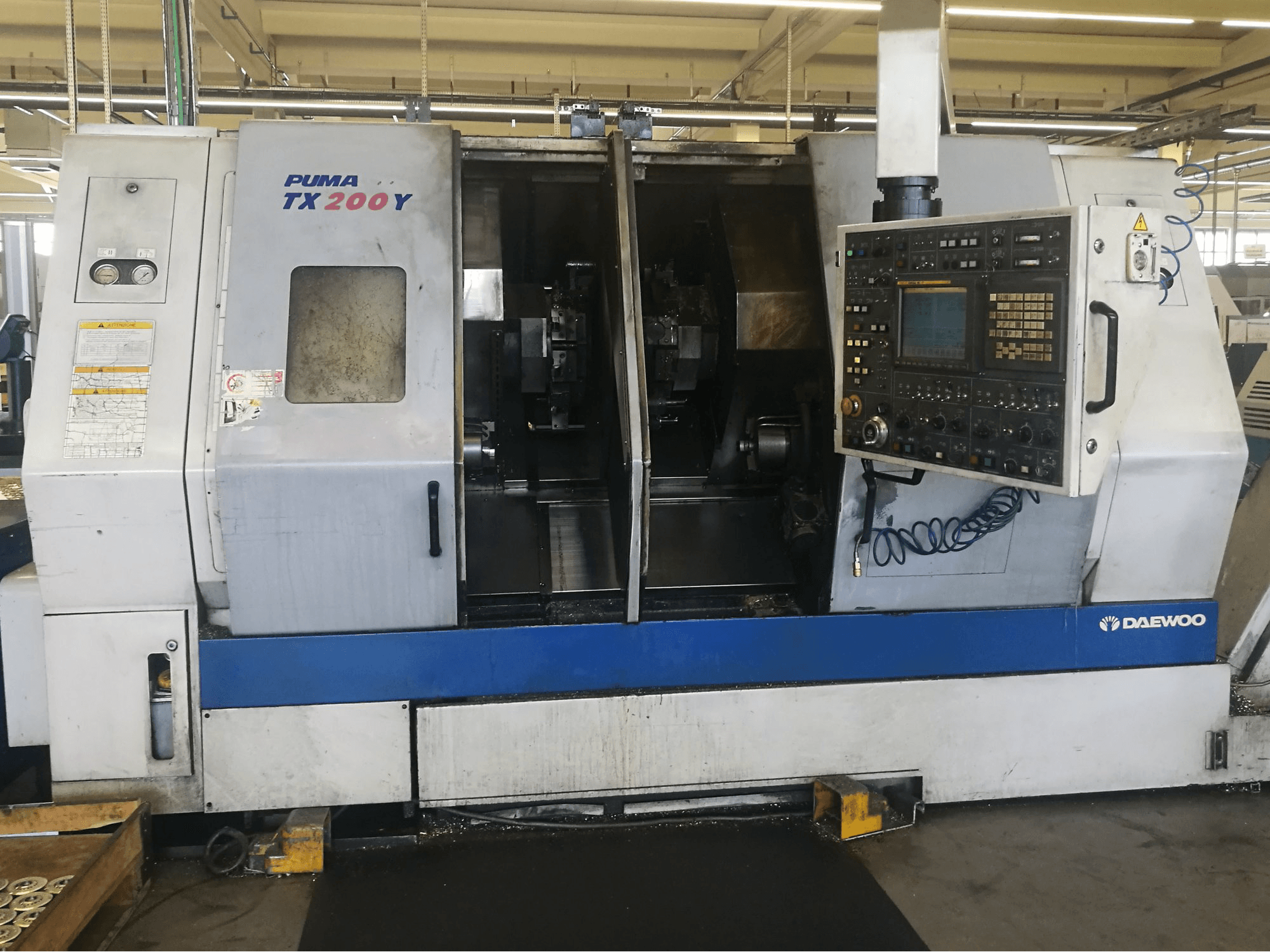

Front view of DAEWOO PUMA TX200Y Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DAEWOO PUMA TX200Y

Photo Gallery

DAEWOO - PUMA TX200YHR-TUR-DAE-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DAEWOO PUMA TX200Y Lathe

This DAEWOO PUMA TX200Y Lathe from 2002 was manufactured in Korea and has been working for 27389 production hours since then. Equipped with a FANUC 18i-T Control unit, this machine has mainly worked with bronze and cast iron. This model stands out due to its fast spindles that can work both simultaneously or separately.

Overview

brand: DAEWOO
year: 2002
MODEL: PUMA TX200Y
production hours: 27389
application type: Turning
Location: Croatia
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DAEWOO PUMA TX200Y

General Data

Measurements width: 4900 mm
Measurements depth: 3100 mm
Measurements height: 2500 mm
Machine weight: 7800 mm KG

Control Unit

Model: 18i-T
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 4500 1/min

Movement

X-AXIS Movement: 220 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 250 mm

Turret

Number of turrets: 2

Media

Main electronic connection: 220V 50/60 Hz
Power consumption: 75.37 kVA
Chip conveyor: Yes

Additional Information

Additional equipment

2 turrets 12+12
C-AXIS on both spindles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
