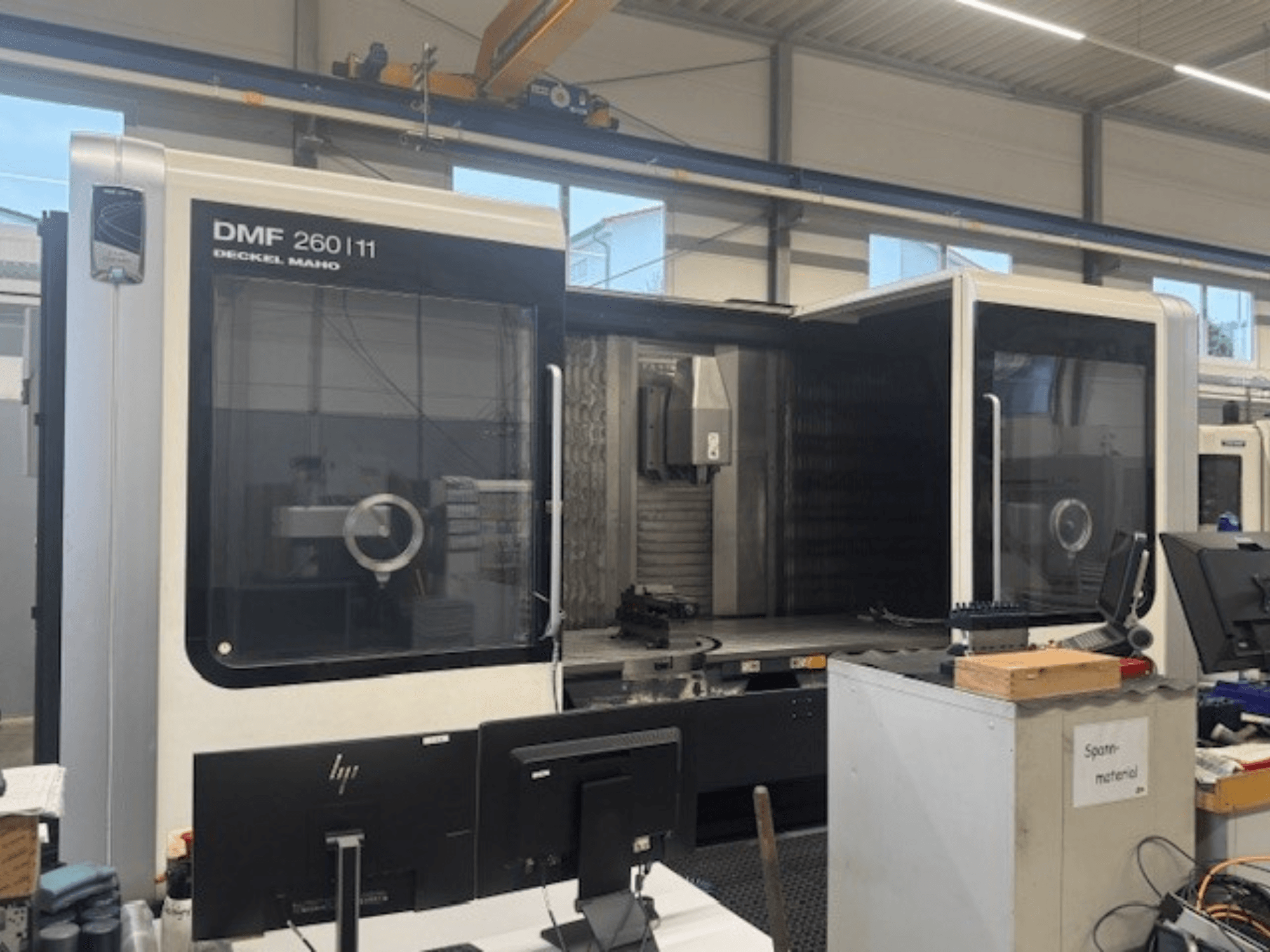

This 5-axis DECKEL MAHO DMF 260/11 was manufactured in 2014. It features an impressive X-axis travel of 2600 mm, Y-axis travel of 1100 mm, and Z-axis travel of 900 mm. The machine is equipped with a vertical motor spindle with a spindle speed range of 20 – 8000 rpm and a tool magazine capacity of 30 tools. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMF 260/11 universal machining centre. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2014
- MODEL: DMF 260/11
- production hours: 20030
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO DMF 260/11
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530 HSCI
Dimensions
- Table Load: 1200 kg
Movement
- Number of Axes: 5
- X-axis Travel: 2600 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 900 mm
Technical Specification
- Number of Tools: 60
- Spindle Power: 23 kW
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
Additional Information
Control interface: Heidenhain Smart.NC ERGOline, 19" screen
Rapid traverse: 40 m/min; Acceleration: 4 m/s²
Main spindle: Vertical motor spindle power 23 / 5 / 13.5 kW (25 / 100% ED)
Swivel head: B-axis, up to 18000 rpm; spindle interface HSK-A63; power 35 / 25 kW (40 / 100% ED)
Tool magazine: 30 tools; chain magazine with double gripper; chip-to-chip 9 s
Tool magazine (optional): 60 tools SK40 / HSK-A63
Table: 3200 x 1100 mm
Rotary table integrated: 1050 mm diameter
Clamping: Hydraulic
Measuring system: Direct measuring systems
Machine design: Full enclosure with coolant tank; 2 rotating viewing windows
Air supply: Sealing air for linear measuring systems
Through-spindle air: Selectable via M-function
Operating mode: Process monitoring in production
Language: German / English screen texts
Workpiece clamping release: Automatic mode enable
Condition/Service history:
New spindle and new guideways, completely renewed by DMG (January 2026)
Geometry remeasured and adjusted by DMG (January 2026)
New spindle less than 100 hours
Additional equipment
Chip conveyor: Scraper belt type
Touch probe: Heidenhain TS 649 infrared measuring probe
Tool measurement: Blum laser tool measurement system
Kinematic calibration: 3D quickSET
Machine protection: MPC Machine Protection Control
Internal coolant supply: 40 bar / 600 l with paper band filter
Coolant/mist extraction: Oil and emulsion mist extraction system; extraction capacity 2 x 1600 m³/h
Electronic handwheel
Coolant flushing gun (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
