DMG DMC 1035V

Photo Gallery

DMG - DMC 1035VSG-MIL-DMG-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

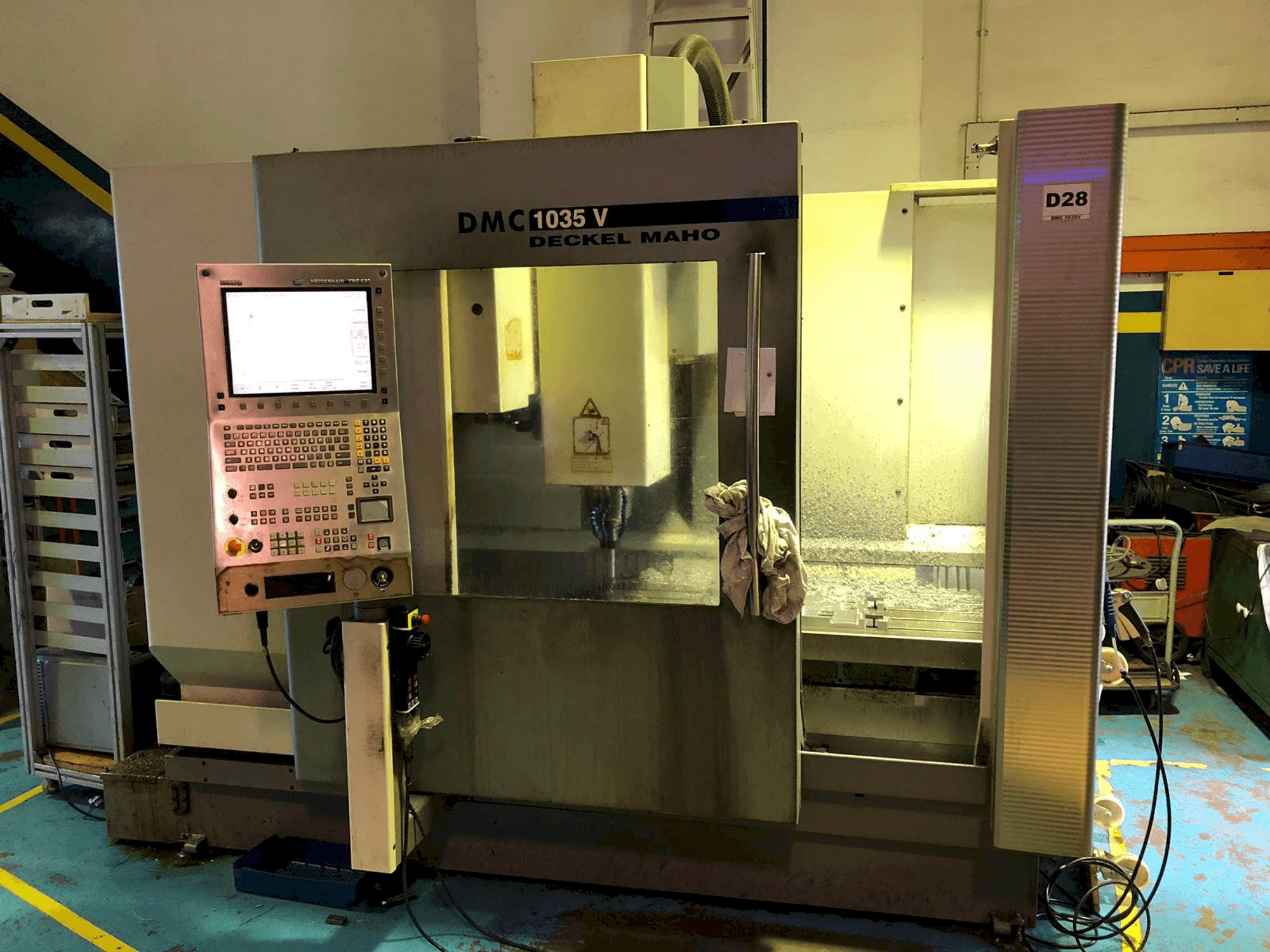

DMG DMC 1035V Vertical Machining Center

This DMG DMC 1035V Vertical Machining Center was produced in Germany in the year 2005. It is equipped with a Heidenhain iTNC 530 control unit. This machine can work with a spindle speed range 20 - 10000 rpm.

Overview

brand: DMG
year: 2005
MODEL: DMC 1035V
application type: Milling
Location: Singapore
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 1035V

General Data

Measurements width: 4000 mm
Measurements depth: 4000 mm
Measurements height: 2500 mm
Machine weight: 4500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 10.000 1/MIN
Spindle motor power: 13 / 9 kW

Movement

X-AXIS Movement: 1035 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1200 x 560 mm
Table load: 1000 kg

Media

Power consumption: 20 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Torque 83 / 57 nm
Tool taper sk 40
Table height over floor 720 mm
Number of tool positions 20 pos
Feed speeds 24. 000 mm/min
Rapid traverse 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
