DMG MORI CMX 1100 V
DMG MORI - CMX 1100 V
2018
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG MORI CMX 1100 V Vertical Machine Center

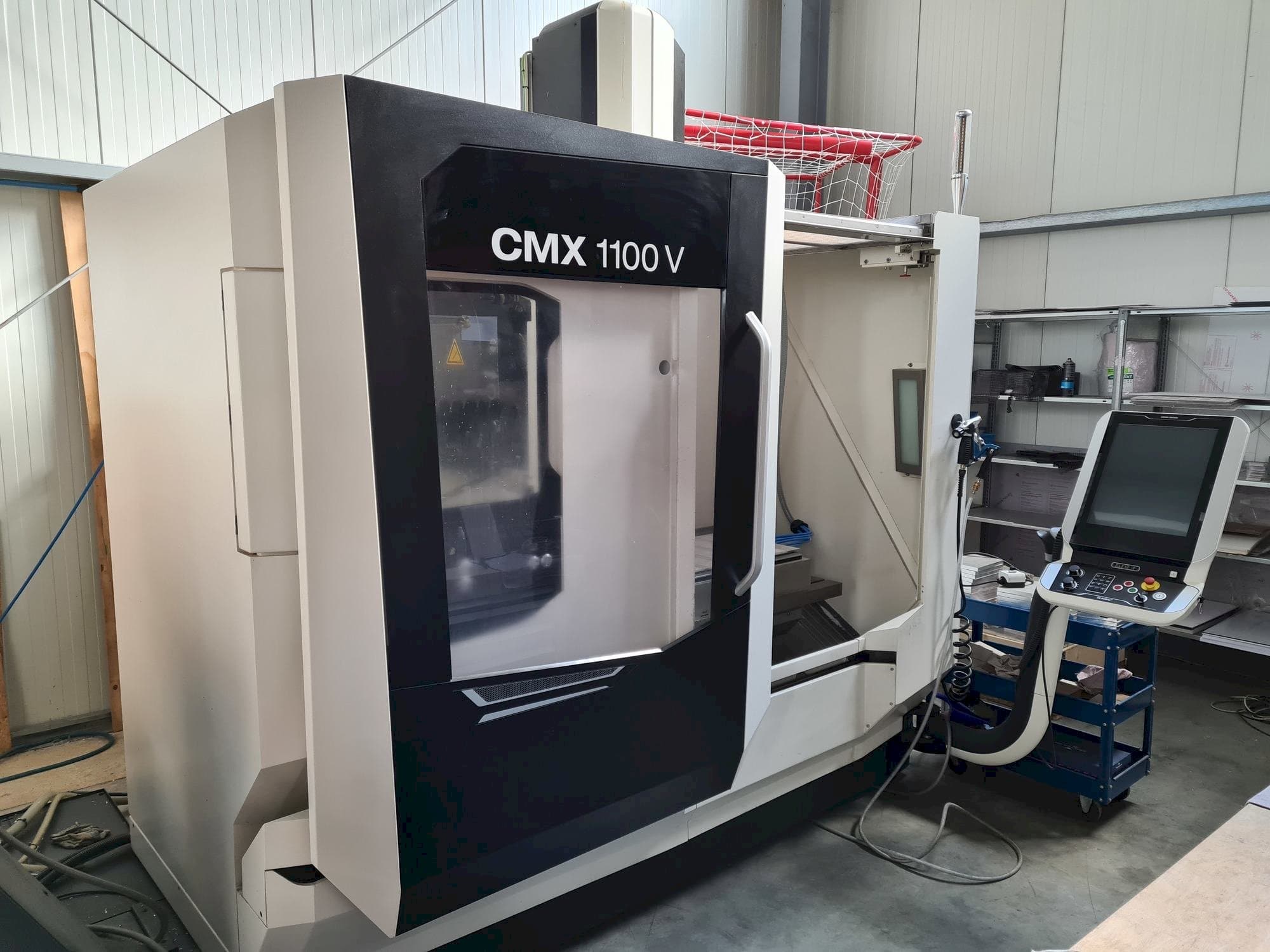

This DMG MORI CMX 1100 V Vertical Machine Center was manufactured in Poland in the year 2018. This machine counts with only 2928 working hours, of which 1124 are spindle hours. It is operated with a Siemens SINUMERIK 840D control unit. This 3 axis machine can perform with a spindle speed up to 12000 rpm.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: CMX 1100 V
- production hours: 2928
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Siemens
- GINDUMAC ID: DE-MIL-DMG-2018-00001
Technical Information
General Data
- Machine weight: 5850 kg
Control Unit
- Brand: Siemens
- Model: SINUMERIK 840D
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1100 mm
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 560 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Rapid traverse: 30 m/min
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1400 mm
- Outer width: 560 mm
Additional Information
- Technical Machine Benefits:
- - Fast tool magazine with 30 places as standard
- - High precision with a 12,000 min-1 milling spindle as standard
- - Improved ergonomic design for easy loading of heavy workpieces
- - Small footprint: 8,6m2
- - Height of the table surface: 850 mm
- - Position of the lower end of the front door: 748 mm
- - Distance to the table: 323 mm
- - Door opening: 1151 mm
- - Drive power (40 % / 100 % dc) kw: 13/9
- - Max. Torque (40 % / 100 % dc) nm: 83/57
- Qualitative Machine Benefits:
- - Type tool shank: sk 40 bt 40* cat 40*
- - Distance between table surface and spindle surface: 120 - 630 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
