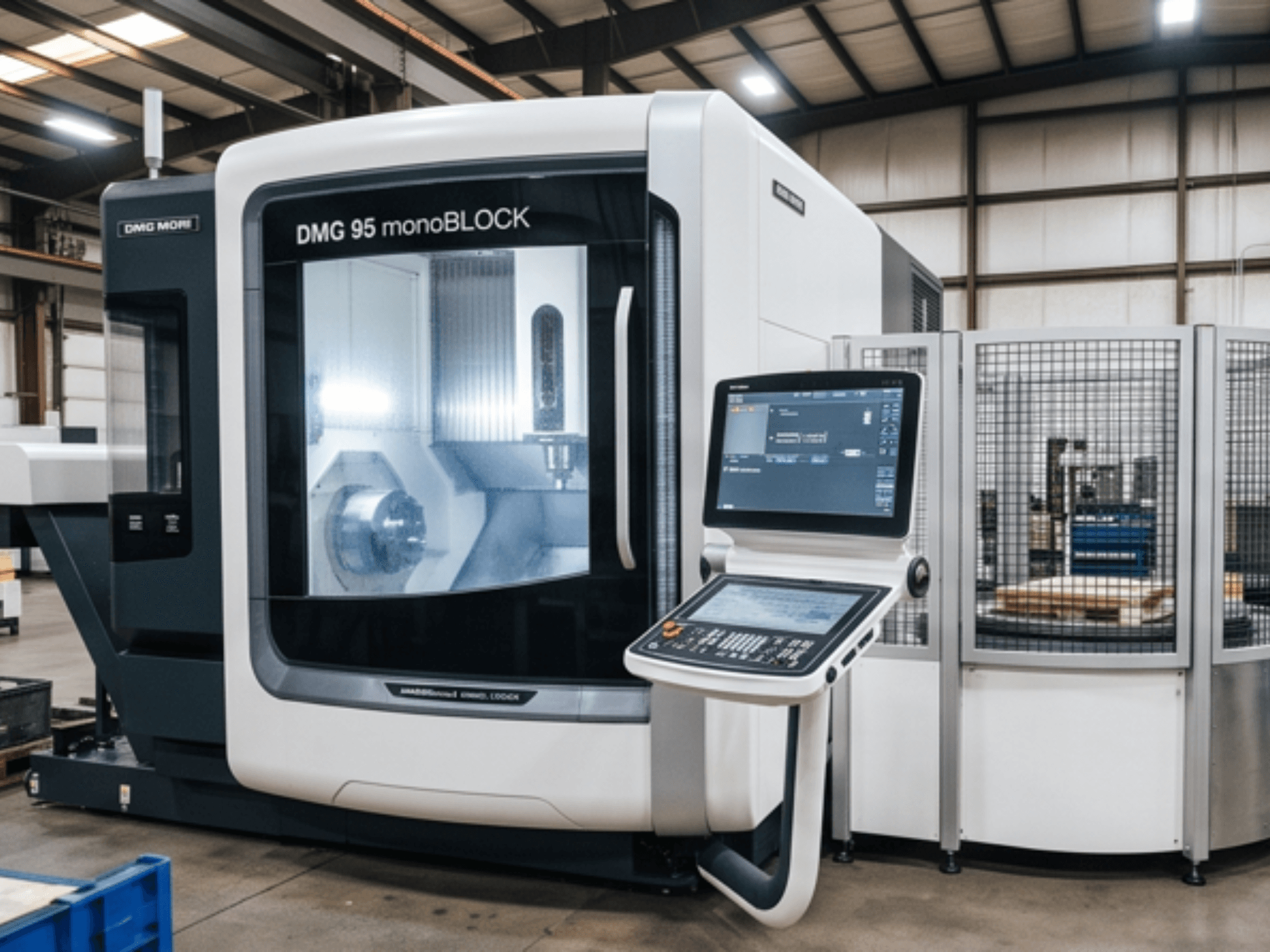

DMG MORI - DMC 95 monoBLOCKDE-MIL-DMG-2023-00004

- Spindle Type: speedMASTER motor spindle

- Spindle Power: 35 kW (40% ED) / 25 kW (100% ED)

- Tool Taper: HSK-A 63 according to DIN 69893 (adapted spindle & magazine)

- Control System: CELOS with Heidenhain TNC 640 incl. 21.5" ERGOline Touch Control

- Pallet Automation: RPS 3 (Round Storage System) with linear pallet changer and 3 pallets (330 mm x 630 mm)

- Table Type: NC Swivelling Rotary Table (Direct Drive C-axis: 80 rpm, Single Drive A-axis: 15 rpm)

- Table Swivel Range: A-axis +120° / -120°, C-axis endless

- Manual Setup Station: Rotatable 4 x 90°

- Tool Magazine: Vertical chain magazine with 120 pockets

- Tool Identification: QR-Code tool identification via Datalogic reader (PSD0004650)

- Coolant & Chip Management: Production Package including 600 L coolant tank, paper band filter, chip conveyor (scraper belt), internal coolant supply (IKZ 40 bar / 23 l/min), external coolant supply (4 bar), and workspace chip flushing

- Measuring & Probing: Heidenhain TS 460 Infrared Touch Probe, Blum Laser DIGILOG in-cabinet tool measurement (LC-VISION), 3D quickSET extension package

- Monitoring & Sensors: MPC (Machine Protection Control), Sensor Package i4.0 (SGS Spindle Growth Sensor, IKZ flow monitor)

- Additional Features: Operating Mode 4 (Process monitoring during production), Rotoclear / rotating window, electronic handwheel, Application Tuning Cycle (ATC), oil/emulsion mist separator (1,100 m³/h), compressed air through spindle center

- Digital Package: Digital Manufacturing Package (IoTconnector, Machine Data Connector, NETservice), Messenger V4, Service Agent
