➤ Used DOOSAN MX2100ST For Sale | gindumac.com

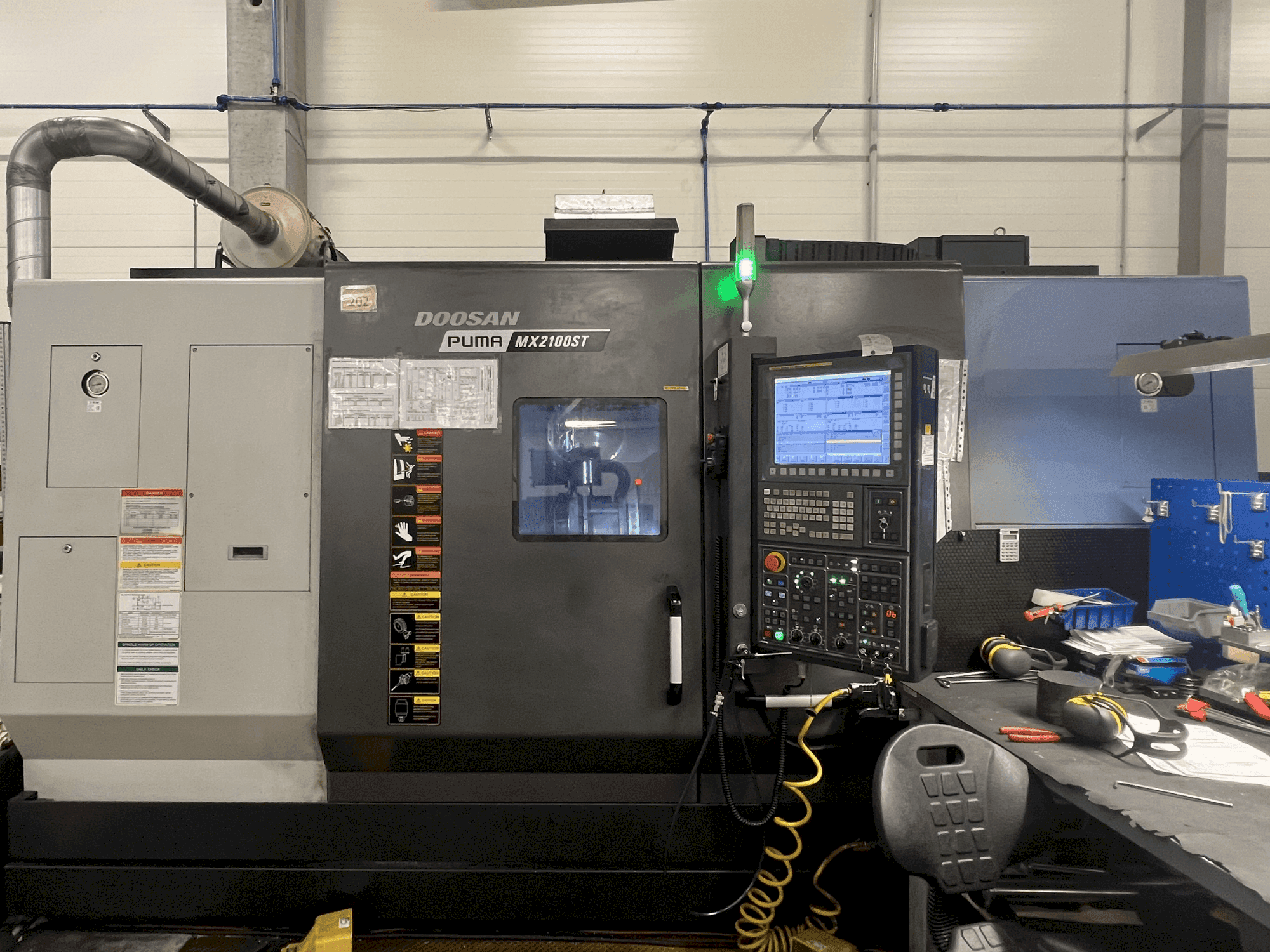

This 9-axis DOOSAN MX2100ST turn-mill centre was manufactured in 2020, featuring a swing over bed of 750 mm and a maximum working length of 1020 mm. It supports a bar working diameter of 65 mm and includes comprehensive Y, A, C1, C2, and B axis movements for versatile machining capabilities. If you are looking to get high-quality turning and milling capabilities, consider the DOOSAN MX2100ST machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2020
MODEL: MX2100ST
application type: Turning
Location: Latvia
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN MX2100ST

Control Unit

Control Brand: FANUC
Control Model: FANUC 31i-B

Dimensions

Machine Depth: 2300 mm
Machine Height: 2805 mm
Machine Weight: 12000 kg

Movement

Number of Axes: 9

Additional Information

Additional equipment

Full licenses for MasterCam software available for programming
Mastercam Lathe
Mastercam Mill 3D
Mastercam Multiaxis
Mastercam DOOSAN PUMA MX2100ST Machine Environment
Additional Mastercam Mill 3D license available for an extra price

Machine Benefits

Technical Machine Benefits

Capacity: 8864 kva
Swing over saddle upper: 540 mm
Swing over saddle lower: 270 mm
Recommended turning diameter: 540 mm
Max working length: 1020 mm
Bar working diameter: 65 mm

Extra Information

All other technical data available in attached separate documentation. Movement Travel Distance: X1 Axis: 565 mm X2 Axis: 187 mm Z1 Axis: 1050 mm Z2 Axis: 1050 mm Y Axis: 170 mm (±85 mm) A Axis: 1050 mm C1, C2 Axis: 360° (0.001°) B Axis: 240° (±120°) B Axis Coupling Clamp Deg: 5°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
