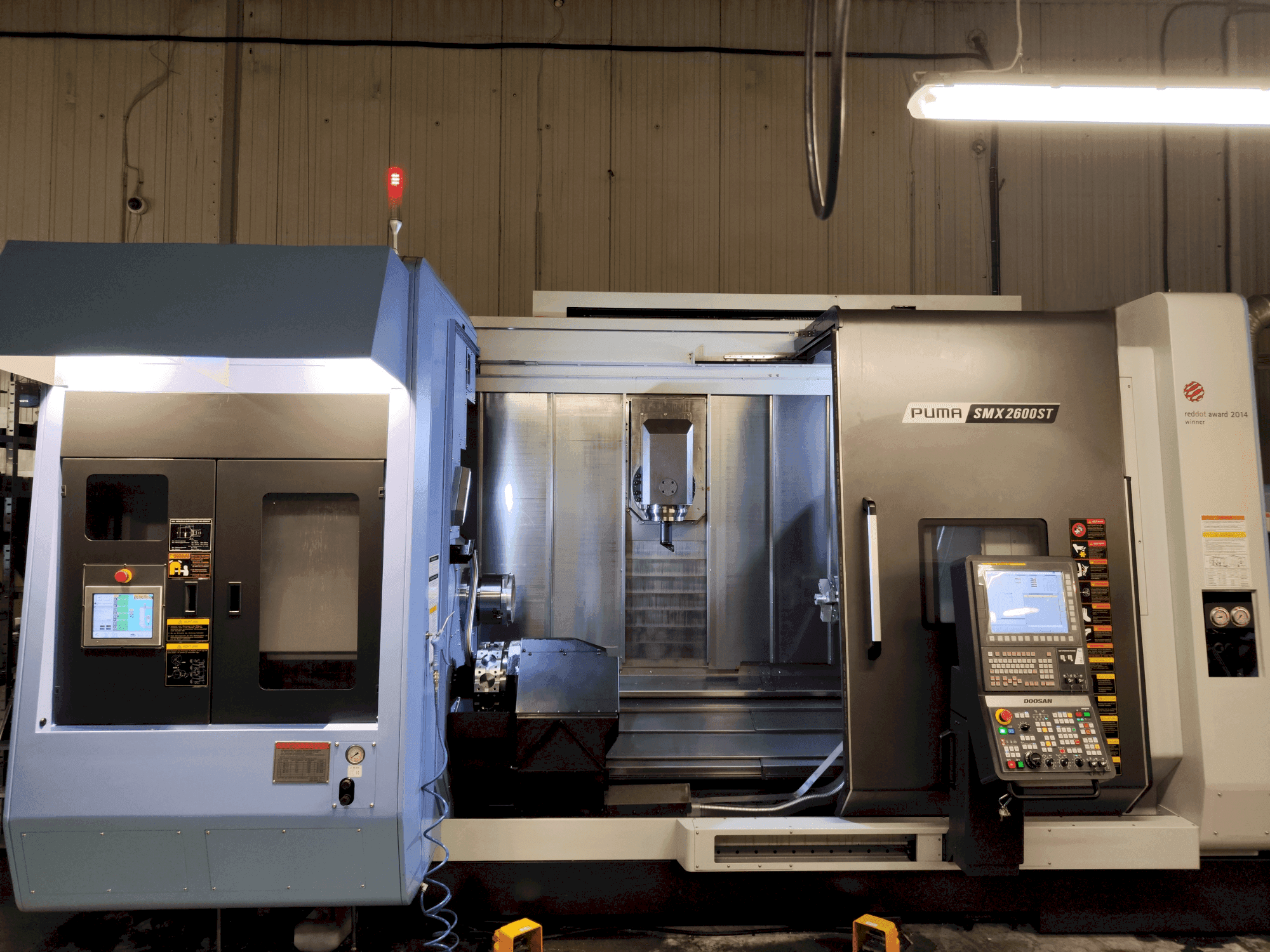

DOOSAN - Puma SMX 2600 STLV-TUR-DOO-2018-00002

• Certification: CE (European Standard)

• Power source: 3-phase AC 380 V / 50 Hz

• Display unit: 15.0" color; language: German

• Manuals: Machine manual in English; NC manuals on USB

• Feedback system: Absolute

• Spindles:

  • Main/left: 10" chuck; max speed 4000 rpm; motor AB200L/6000_26/22 kW

  • Sub/right: 10" chuck; max speed 4000 rpm; power 26/22 kW; torque 621 N·m (30 min/continuous)

• Milling spindle: Max 12,000 rpm

• Tooling: CAPTO C6; tool storage 80; lower turret 12 stations (3‑axis)

• Coolant and thermal features: Rotary tool flood coolant; TSC for main and sub spindles; coolant pumps (milling 7.5 kW, 7.0 MPa with cyclone filter; lower turret 2.2 kW, 1.45 MPa, 40 L/min); ball screw cooling

• Scales/encoders: X1, X2, Y, Z1 axes with absolute pulse coders (linear scales)

• Chucking: Dual pressure chucking

• Travels:

  • X: 695 mm

  • Z1: 1585 mm

  • X2: 235 mm

  • Z2: 1540 mm

• Rapid traverse:

  • X2: 24 m/min

  • Z2: 36 m/min

Additional equipment

• Chip conveyor: Hinged belt, right side

• Automatic workpiece measurement: Renishaw RMP60

• Automatic front door with safety device

• Oil skimmer: Tube type

• Air gun

• Workpiece ejector coolant

• Chuck coolant for left and right spindle

• Coolant level switch

• Cooling flow switch

• Cyclone filter for coolant system
