Engel - DUO 4550/650BE-INJ-ENG-2011-00001

Name: Engel DUO 4550/650
Brand: Engel
SKU: BE-INJ-ENG-2011-00001
Price: 105000 EUR
Availability: InStock

105,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel DUO 4550/650 For Sale | gindumac.com

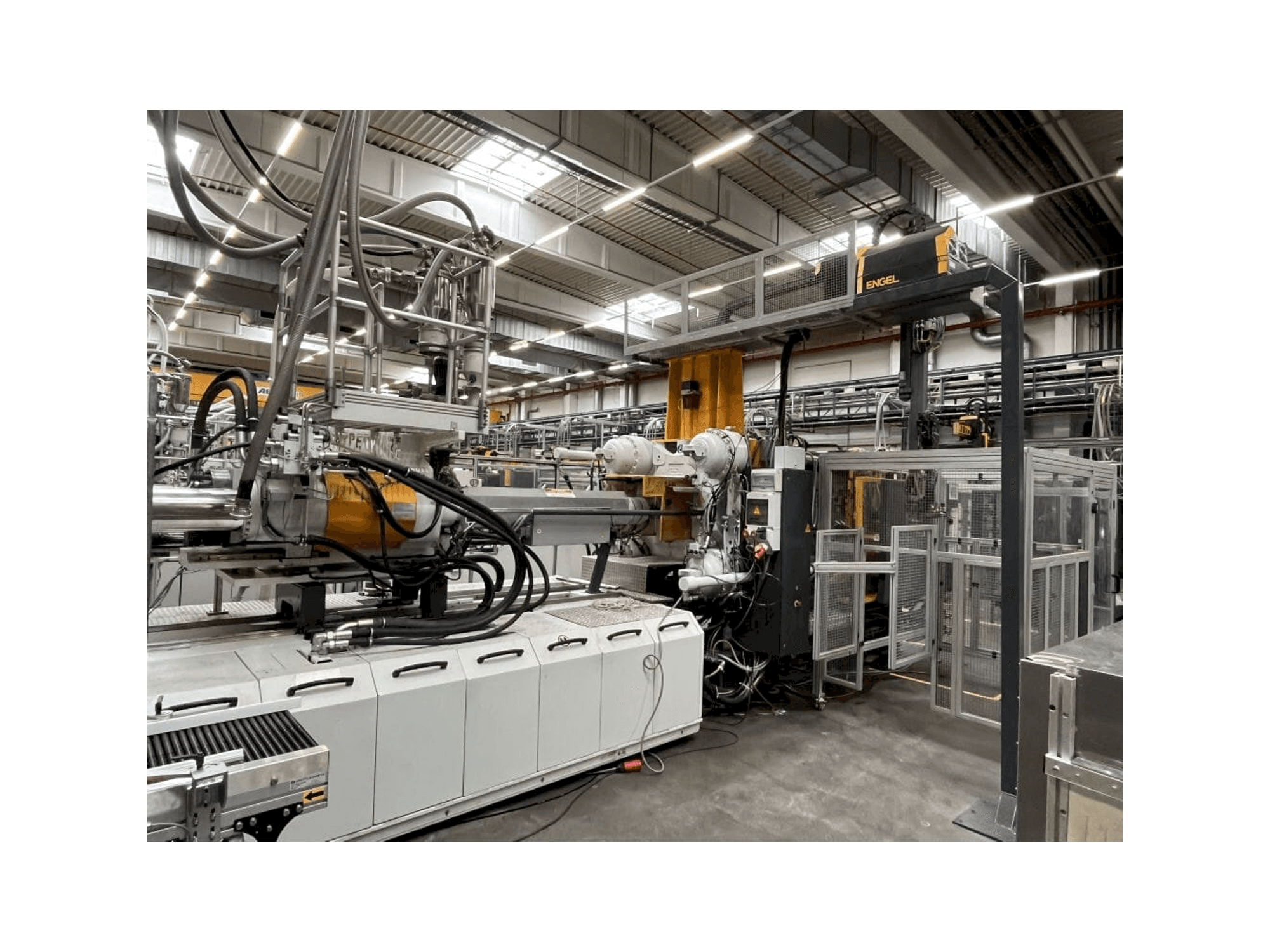

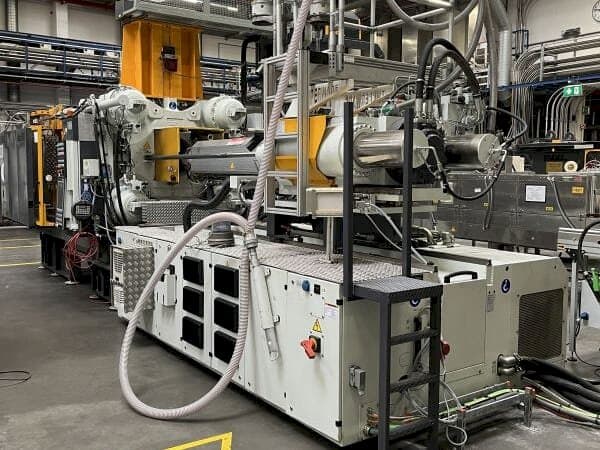

This Engel DUO 4550/650 was manufactured in 2011. It features a clamping force of 6500 kN and a maximum opening stroke of 1650 mm. The machine supports a mold height ranging from 400 mm to 2000 mm and a platen size of 1510 × 1440 mm. The screw diameter is 90 mm, enhancing its injection capabilities. Consider the opportunity to buy this Engel DUO 4550/650 hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Engel
year: 2011
MODEL: DUO 4550/650
application type: Injection Moulding
Location: Belgium
machine type: Hydraulic Injection Moulding Machine

Technical Information - Engel DUO 4550/650

Injection Unit

Screw diameter: 90 mm
Screw speed: 180 r/min

Clamping unit

Clamping force: 6500 kN
Opening stroke: 1650 mm
Max open daylight: 3650 mm
Distance between bars: 1160 × 960 mm
Mould height min: 400 mm
Mould height max: 2000 mm
Ejector stroke: 210 mm
Ejector force for / back: 150 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Net clamping/injection unit: 20 / 10 tons
- - Opening force (with pressure pad): 510 kn
- - Opening force: 190 kn
- - Platen size (h × v): 1510 × 1440 mm
- - Tie bar diameter: 175 mm
- - Mold weight (max): 11000 kg
- - Dry operation (euromap 6) time: 2. 9 sec
- - Dry operation (euromap 6) stroke: 700 mm

Extra information

- Injection Unit Screw stroke: 390 mm Injection capacity: 2480 cm³ Screw torque: 97 kNm L/D ratio (3-zone screw): 27 Recovery rate (3-zone screw): 104 g/s L/D screw length (Barrier): 22 Plasticizing capacity (Barrier): 135 g/s Injection rate: 720 cm³/s Injection rate (with increased injection pressure): 630 cm³/s Injection pressure (regenerative): 1910 bar Specific injection pressure (increased): 2180 bar Nozzle stroke: 600 mm Nozzle contact pressure: 150 kN Heating capacity (standard): 62 kW Number of heating zones (incl. nozzle): 9 Rated drive power: 90 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
