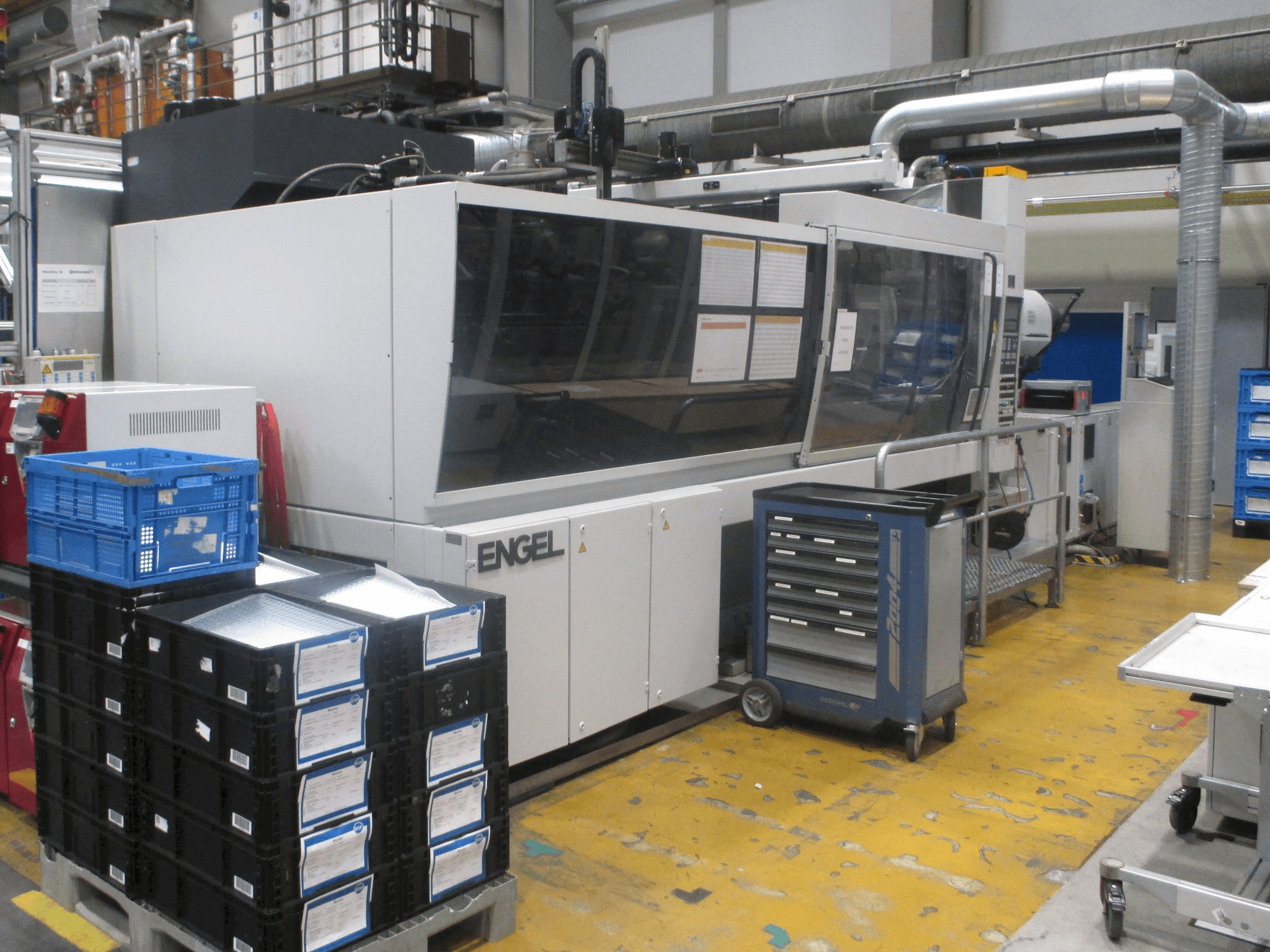

Front view of ENGEL ES 3550/600 HL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel ES 3550/600 HL

Photo Gallery

Engel - ES 3550/600 HLDE-INJ-ENG-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
ENGEL ES 3550/600 HL Injection Moulding Machine

This ENGEL ES 3550/600 HL Injection Moulding Machine was built in Austria in 2002. This reliable machine can operate with a clamping force of 6000 kN and a screw diameter of 70 mm. It presents perfectly good conditions.

Overview

brand: Engel
year: 2002
MODEL: ES 3550/600 HL
production hours: 95900
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel ES 3550/600 HL

General Data

Measurements width: 9053 mm
Measurements depth: 2472 mm

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 1900 mm

Injection Unit

Screw diameter: 70 mm
Stroke volume: 1500 CM³
Injection pressure: 2250 bar
Plasticizing rate max.: 67 g/sec
Screw speed: 150 U/min
Heating capacity: 42 kW
Adjustable heating zones: 6
Nozzle pressure: 150 kN

Clamping unit

Clamping force: 6000 kN
Opening stroke: 1200 mm
Distance between bars: 1700 mm
Mould height min: 1500 mm
Size of mold platens: 1480x1300 mm
Ejector stroke: 250 mm
Ejector force for / back: 110 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Variable displacement pumps
- - 4 core pulls
- - Tiebarless
- - Machine height with robot: 4m
- - Weight of robot: 700 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
