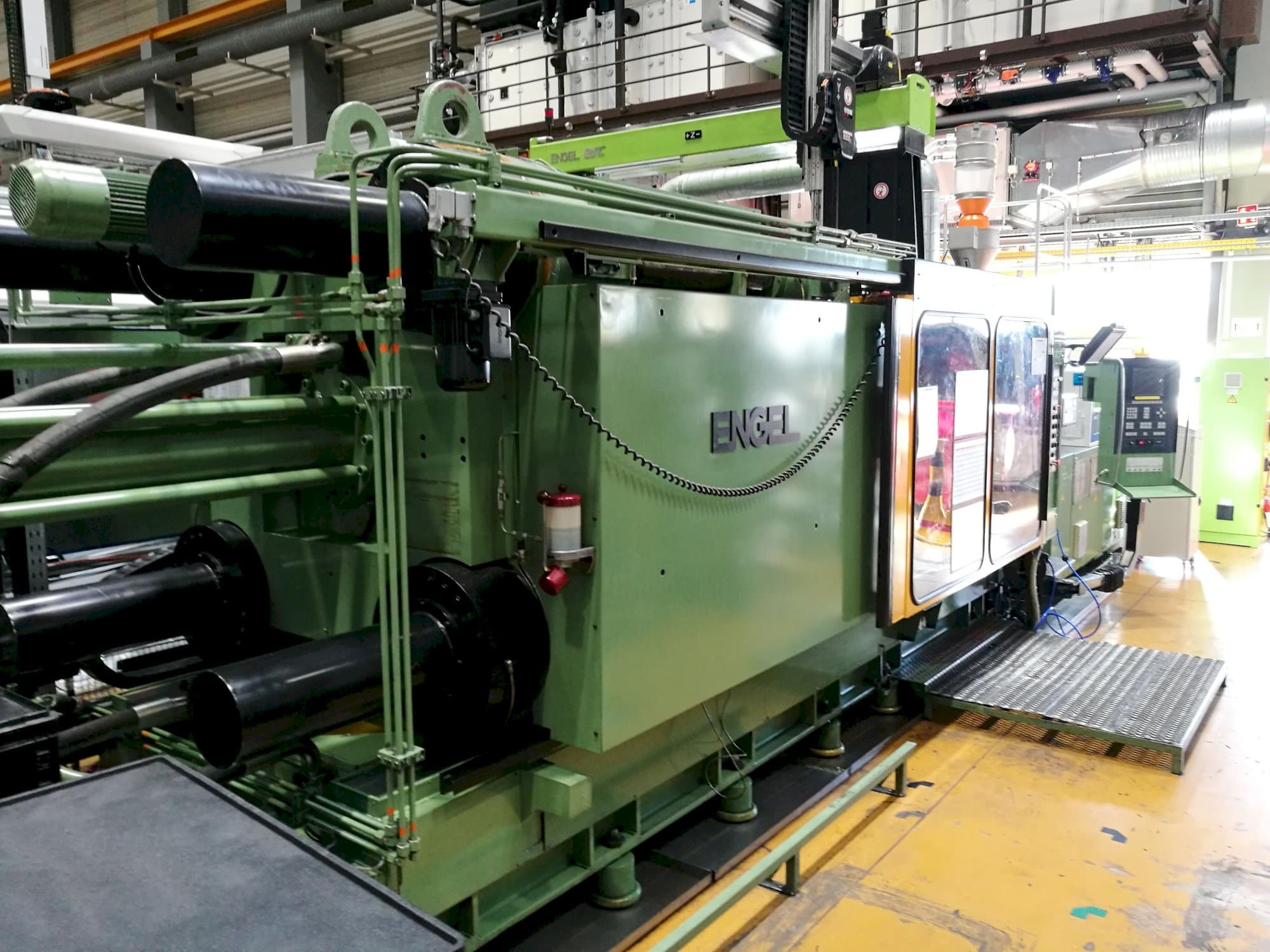

ENGEL ES 4400/800 Injection Moulding Machine

This ENGEL ES 4400/800 Injection Moulding Machine from 1992 was manufactured in Austria and is equipped with a control unit of the same brand. This 10000 kN clamping force machine includes an ENGEL ERC 76/0-E YOM handling from 2007 as additional equipment.

Overview

brand: Engel
year: 1992
MODEL: ES 4400/800
application type: Injection Moulding
Location: Germany
machine type: Injection Moulding Machines
availability: Sold
control unit brand: ENGEL
GINDUMAC ID: DE-INJ-ENG-1992-00001

Technical Information

General Data

Measurements width: 15000 mm
Measurements depth: 5500 mm
Measurements height: 2700 mm
Machine weight: 58000 kg

Control Unit

Brand: ENGEL
CNC main language: German
CNC language customizable: Yes

Injection Unit

Screw diameter: 80 mm
Stroke volume: 1960 cm³
Injection pressure: 1900 bar
Screw speed: 5-150 1/min
Heating capacity: 30.2 kW
Adjustable heating zones: 10
Nozzle pressure: 150 bar

Clamping unit

Clamping force: 10000 kN
Opening stroke: 1000 mm
Distance between bars: 1000x1000 mm
Mould height min: 400 mm
Mould height max: 1000 mm
Size of mold platens: 1500x1500 mm
Ejector stroke: 300 mm
Ejector force for / back: 215 kN

Media

Internal cooling: Yes

Additional Equipment

- Handling ENGEL ERC 76/0-E YOM 2007

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
