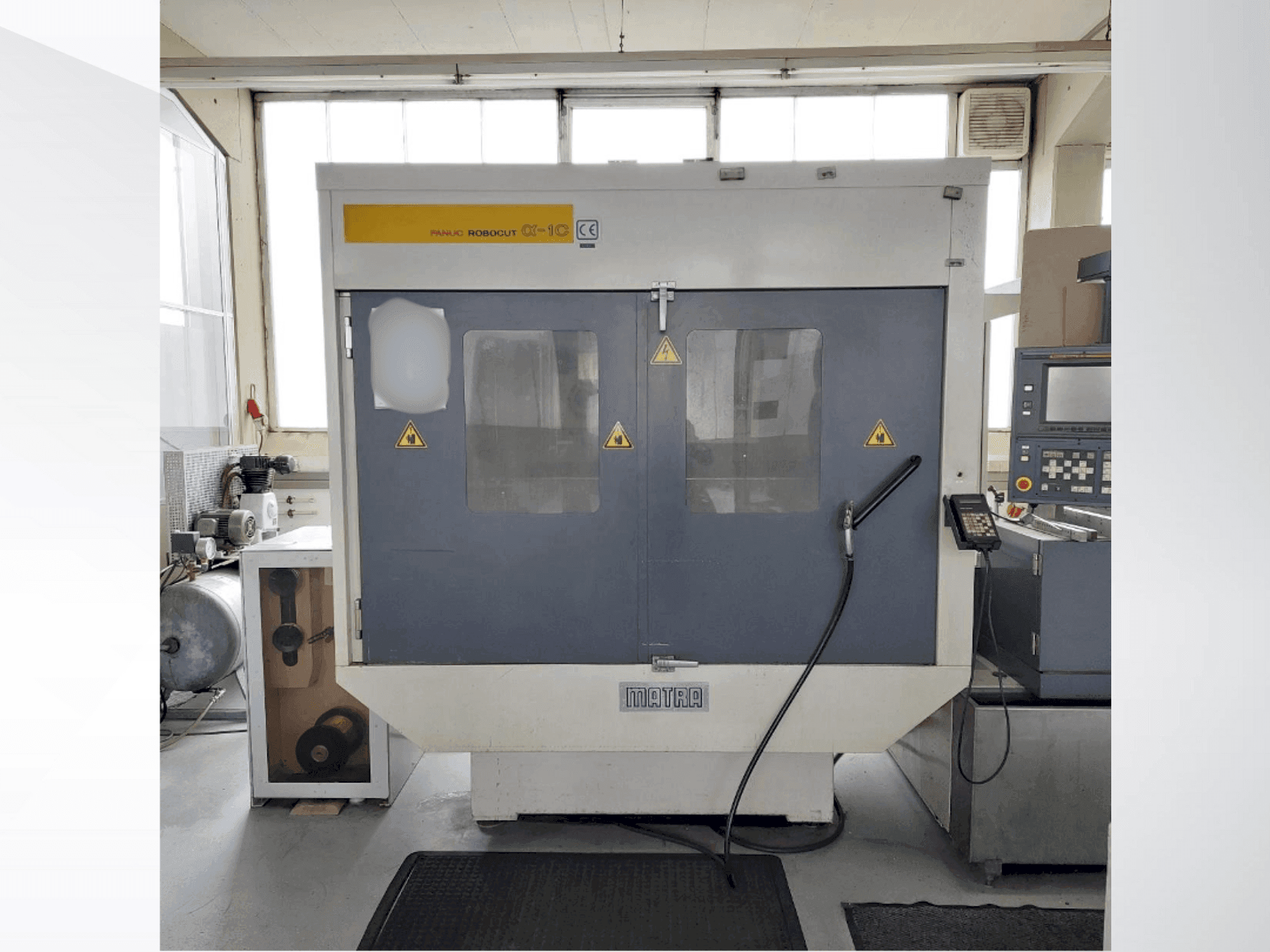

This 5-axis FANUC Robocut Alpha 1C erosion machine was manufactured in 1997. It features a coordinate travel of 520 x 370 mm on the X and Y axes, and a Z-axis adjustment of 300 mm. The machine can handle a maximum workpiece weight of 650 kg and offers a rapid traverse of 900 mm/min. Ideal for precision erosion tasks, the FANUC Robocut Alpha 1C machine we have for sale. Contact us for further details regarding this erosion machine.
Overview
- brand: FANUC
- year: 1997
- MODEL: Robocut Alpha 1C
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC Robocut Alpha 1C
Control Unit
- Control Brand: FANUC
- Control Model: System 16-WB
Dimensions
- Machine Depth: 3270 mm
- Machine Height: 2240 mm
- Machine Weight: 2600 kg
- Machine Width: 3270 mm
- Table Length: 750 mm
- Table Width: 590 mm
Movement
- Number of Axes: 5
- X-axis Travel: 520 mm
- Y-axis Travel: 370 mm
- Z-axis Travel: 300 mm
Additional Information
Additional equipment
Bedra wire unwinding device BAS 45/100E (to the left of the machine), capable of handling wire spools weighing up to 45 kg
Machine Benefits
Qualitative Machine Benefits
Advanced control system with fanuc system 16-wb
Versatile wire edm capabilities with adjustable wire diameter and tension
Technical Machine Benefits
Machine Type: CNC Wire EDM (Wire Electrical Discharge Machine)
Control System: FANUC System 16-WB (32-bit CNC)
Number of Controlled Axes: 5
Coordinate Travel X Axis: 520 mm
Coordinate Travel Y Axis: 370 mm
Coordinate Travel U Axis: ±60 mm
Coordinate Travel V Axis: ±60 mm
Z-Axis Travel: 300 mm (275 mm possible in water bath)
Maximum Taper Angle: ±30° / 80 mm
Optional Maximum Taper Angle: ±45° / 40 mm
Rapid Traverse X Axis: 900 mm/min
Rapid Traverse Y Axis: 900 mm/min
Rapid Traverse U Axis: 450 mm/min
Rapid Traverse V Axis: 450 mm/min
Rapid Traverse Z Axis: 450 mm/min
Maximum Rapid Traverse: 900 mm/min
Smallest Drive Step Size: 0.0001 mm
Minimum Input Increment: 0.0001 mm
Minimum Command Increment: 0.0001 mm
Maximum Programmable Dimension: ±9999.9999 mm
Programming Mode: Incremental / Absolute
Interpolation: Linear and Circular
Program Memory Capacity: 280 m
Control Display: 9.5 inch Plasma Color Screen
Interface: RS-232C read / print
Scaling Range: 0.001 – 99.999 ×
Rotation Function: ±0.001° – ±360°
Wire Diameter Compensation: ±99.9999 mm
Maximum Cutting Feed Rate: 25 mm/min
Wire Guide Elements Material: Diamond
Applicable Wire Diameter: 0.2 – 0.3 mm
Adjustable Wire Speed: 0 – 15 m/min
Wire Tension Range: 200 – 2500 g
Maximum Workpiece Clamping Surface: 750 × 590 mm
Maximum Workpiece Size: 790 × 730 × 275 mm
Maximum Workpiece Height (Water Bath): 300 mm (275 mm submerged)
Maximum Workpiece Weight with Coaxial Spindle: 650 kg
Maximum Workpiece Weight with Water Bath: 450 kg
Permissible Workpiece Mass: 650 kg
Machine Weight: approx. 2600 kg
Mass of Machine (nameplate): 2.3 t
Machine Width: 3270 mm
Machine Depth: 2610 mm
Machine Height: 2240 mm
Required Installation Area: 4000 × 2860 mm
Power Supply: 380 / 400 / 415 V ±10–15 %
Electrical Phases: 3-Phase
Frequency: 50 / 60 Hz
Power Requirement: 11 kVA
Connection Value with Cooler: 14 kVA
Smallest Command Resolution: 0.0001 mm
Maximum Programmable Range: ±9999.9999 mm
Bedra Wire Unwinding Device: BAS 45/100E
Maximum Wire Spool Weight (with unwinding device): 45 kg
Operating Hours: 52881.1 h
Extra Information
Machine still under power
