FANUC - Robocut alpha iB600DE-EDM-FAN-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used FANUC Robocut alpha iB600 For Sale | gindumac.com

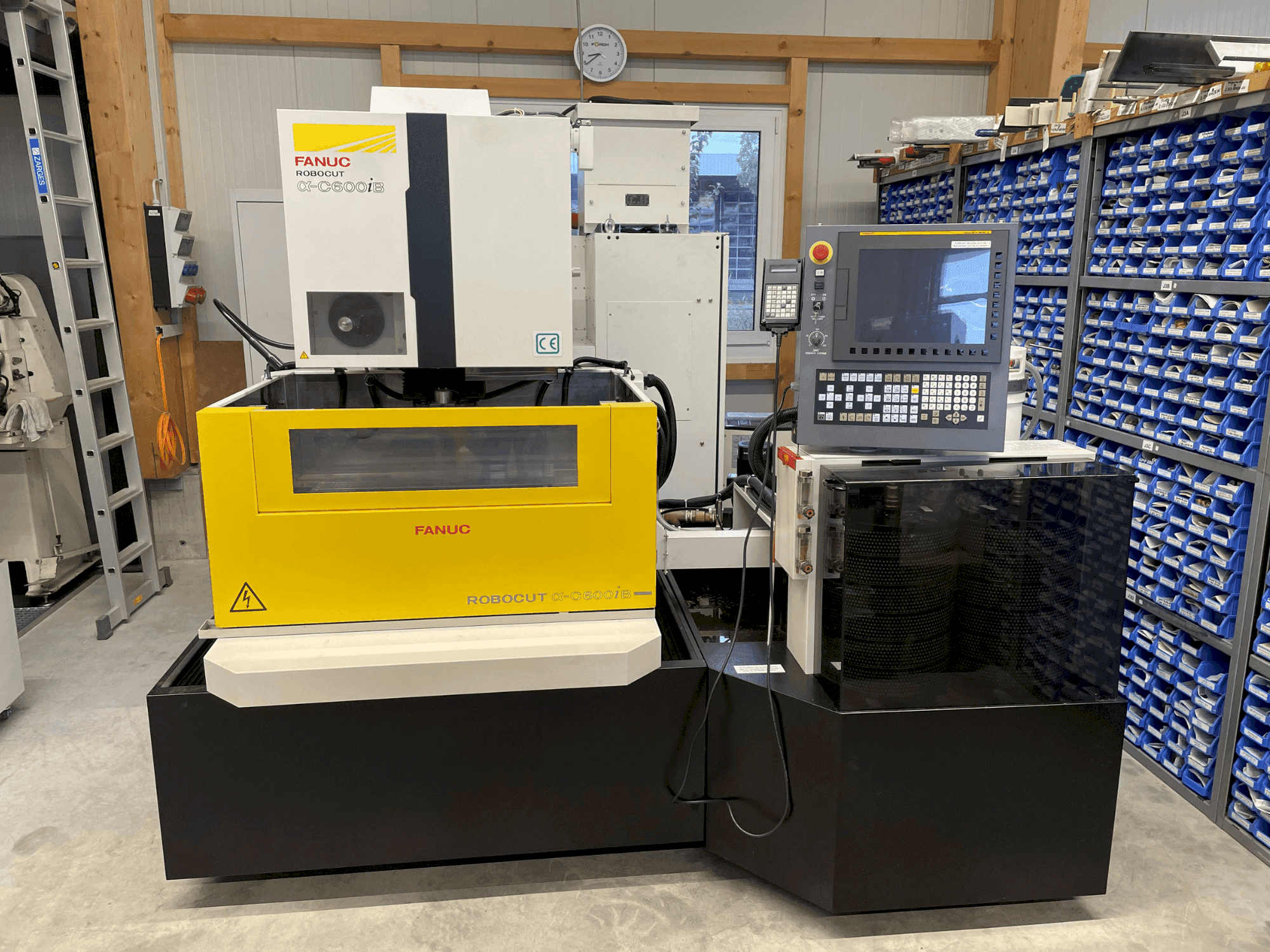

This 5-axis FANUC Robocut alpha iB600 wire EDM machine was manufactured in 2020. It features a maximum workpiece size of 1050 × 820 × 300 mm and can handle weights up to 1000 kg. The machine includes UV axis travel of 200 × 200 mm and a maximum taper angle of ±30°. Equipped with a FANUC 31i-WB controller, it offers precise control and efficient operation. If you are looking to get high-quality EDM capabilities, consider the FANUC Robocut alpha iB600 machine we have for sale. Contact us for more information.
Overview
- brand: FANUC
- year: 2020
- MODEL: Robocut alpha iB600
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - FANUC Robocut alpha iB600
General Data
- Measurements width: 2680 mm
- Measurements depth: 2790 mm
- Machine weight: 3000 kg
Control Unit
- Brand: FANUC
- Model: 31i-WB
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
- V-Axis Movement: 200 mm
- U-Axis Movement: 200 mm
Workpiece
- Workpiece weight: 1000 kg
Media
- Power consumption: 13 kVA
- Air pressure: 0.5 – 0.7 MPa
Additional Equipment
- - Automatic Front Door Option
- - 45° Die Guide: Max Taper Angle ±45° / 70 mm
- - 30 kg Wire Feed Unit: Max Wire Weight 30 kg
Additional Information
- Technical Machine Benefits:
- - Part program storage: 4 mb standard, expandable up to 64 mb
- - Acoustic noise level: lpa 81 db, lpcpeak 410 db
- - Maximum workpiece dimensions: 1050 × 820 × 400 mm (with z-axis 400 option)
- - Ac200v ±10% 3-phase 50/60hz ±1hz
- - Ac220v ±10% 3-phase 60hz ±1hz
- - Flow rate: 100 – 110 l/min (120 l/min or more with thin wire option)
- - Regularly serviced by fanuc
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
