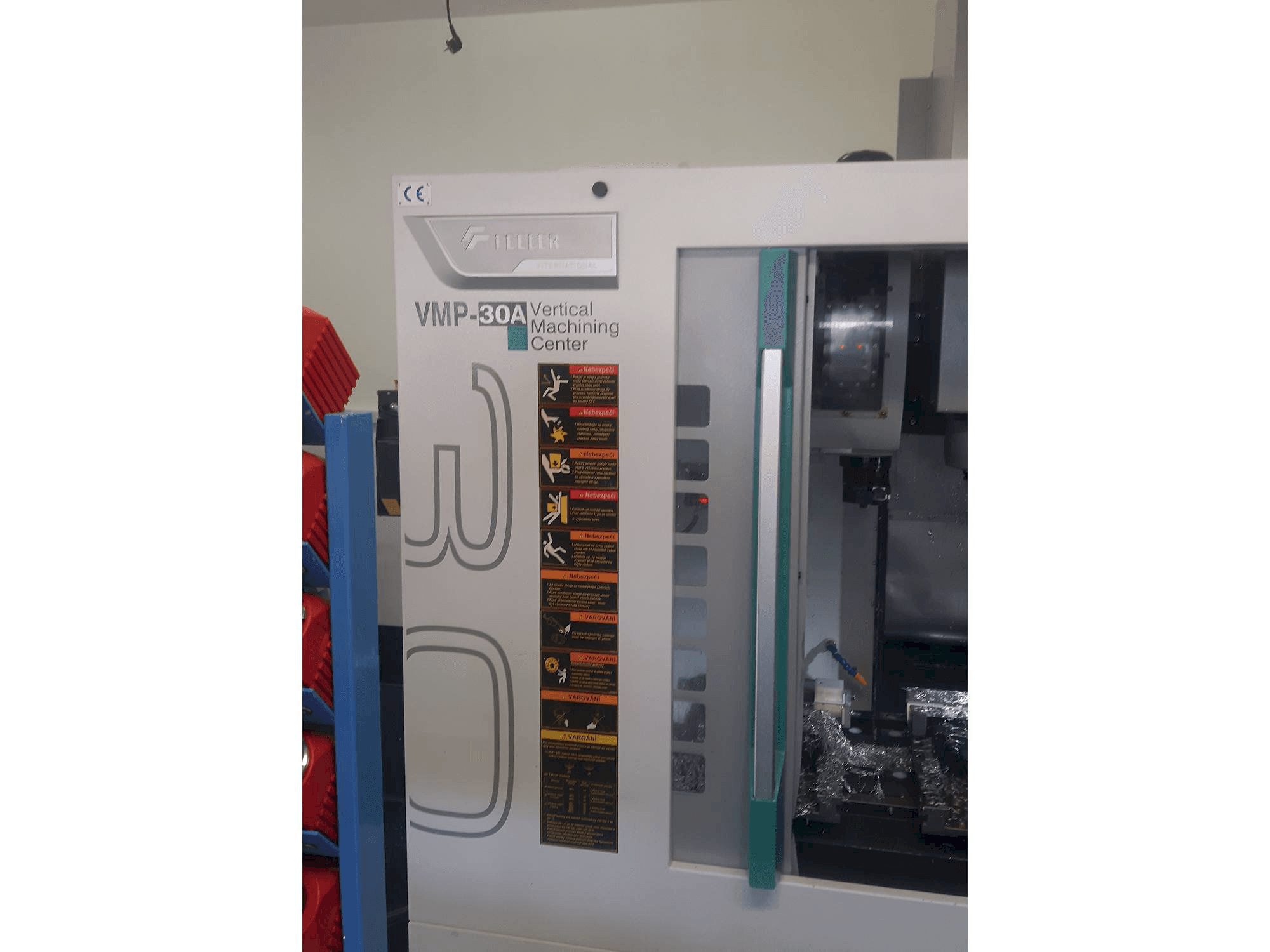

Front view of Feeler VMP 30  machine

Feeler VMP 30

Feeler - VMP 30

2020

55,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Feeler VMP 30 Vertical Machining center was manufactured in the year 2020 in Taiwan and has 1100 production hours. It is equipped with a Fanuc Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.

Overview

  • brand: Feeler
  • year: 2020
  • MODEL: VMP 30
  • production hours: 1100
  • application type: Milling
  • Location: Slovakia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: SK-MIL-FEE-2020-00001

Technical Information

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 2255 mm
  • Measurements height: 2370 mm
  • Machine weight: 3300 kg

Control Unit

  • Brand: Fanuc
  • Model: Oi-MF

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 760 mm
  • Y-AXIS Movement: 420 mm
  • Z-AXIS Movement: 510 mm

Workpiece

  • Workpiece weight: 300 kg

Table

  • Outer length: 890 mm
  • Outer width: 420 mm
  • Number of tslots: 4
  • Distance between: 100 mm

Tools

  • Slots in storage: 20
  • Max weight: 7 kg
  • Max tool diameter: 80/130 mm
  • Max tool length: 250 mm
  • Type of tool holder: SK40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance spindle nose-table 80-590 mm
      • - Tool change time 2 s
      • - Spindle motor power (cont. /30 min. ) 7. 5/11 kw
      • - Work feedrates 36 m/min.
      • - Rapid feedrate 36 m/min.
      • - Incl. 2 probes (tool and workpiece)
      • - Incl. Set of tool holders and 2x vice
    • Qualitative Machine Benefits:
      • - Very good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
