- FEELER VMP-30A Vertical Machining center

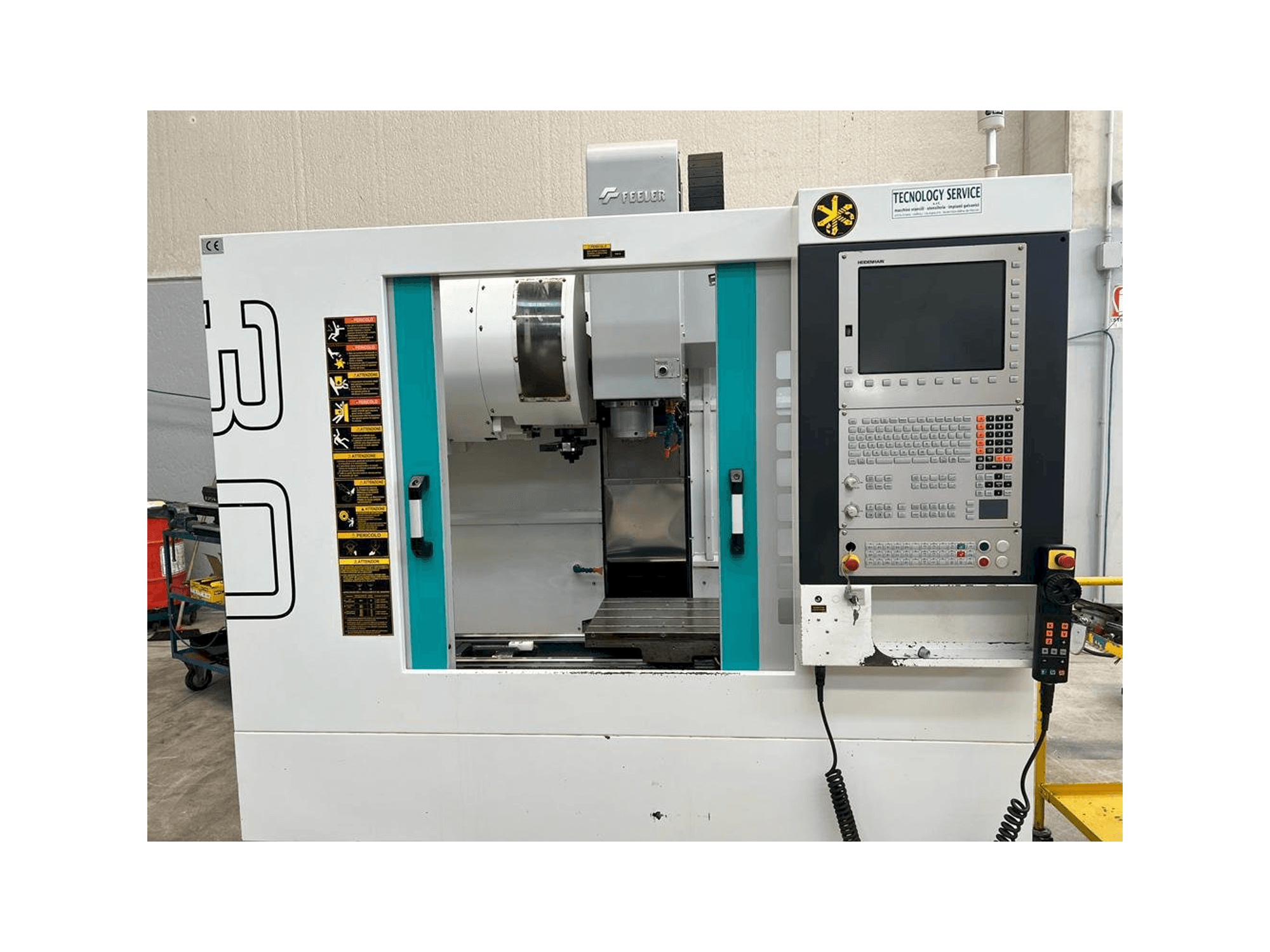

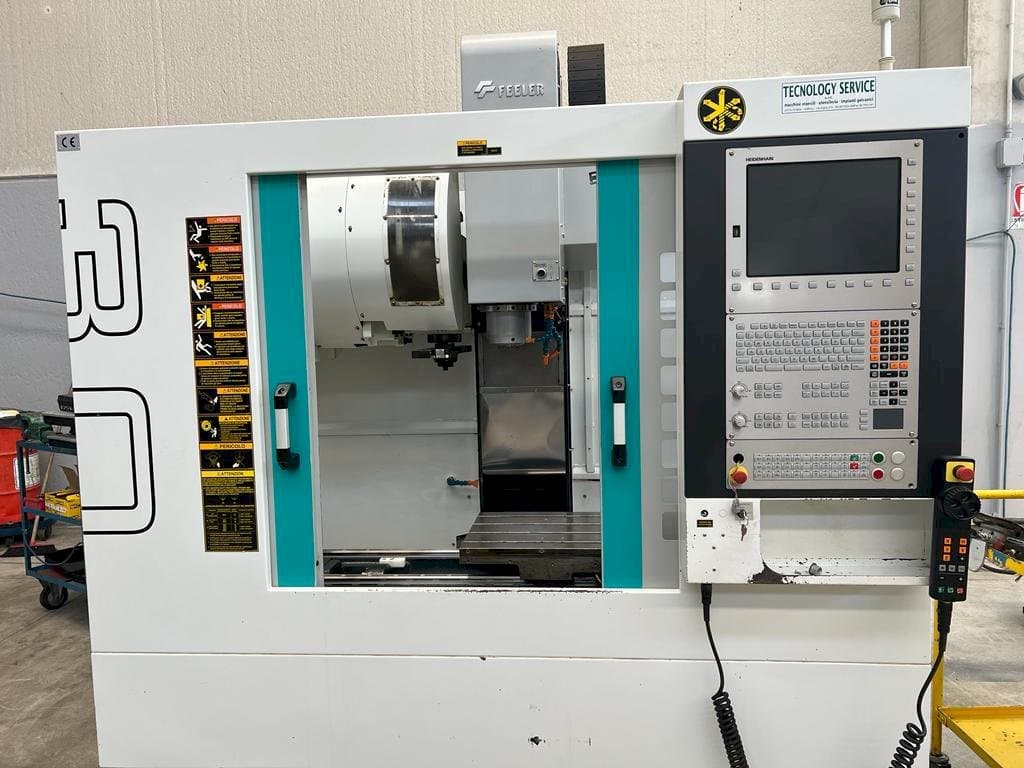

This FEELER VMP-30A Vertical Machining center was manufactured in the year 2015 in Taiwan. It is equipped with a HEIDENHAIN control unit. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Feeler
- year: 2015
- MODEL: VMP-30A
- application type: Milling
- Location: Italy
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - Feeler VMP-30A
General Data
- Machine weight: 3300 kg
Control Unit
- Brand: Heidenhain
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 7.5/11 Kw
- Tool taper: BT 40
Movement
- X-AXIS Movement: 760 mm
- X-AXIS Rapid traverse: 36 m/min
- Y-AXIS Movement: 420 mm
- Y-AXIS Rapid traverse: 36 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Rapid traverse: 36 m/min
Table
- Outer length: 890 mm
- Outer width: 420 mm
- Table load: 300 kg
Tools
- Slots in storage: 20
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Table-spindle distance 80-590 mm
- Qualitative Machine Benefits:
- - Condition excellent
- - Condition used
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
