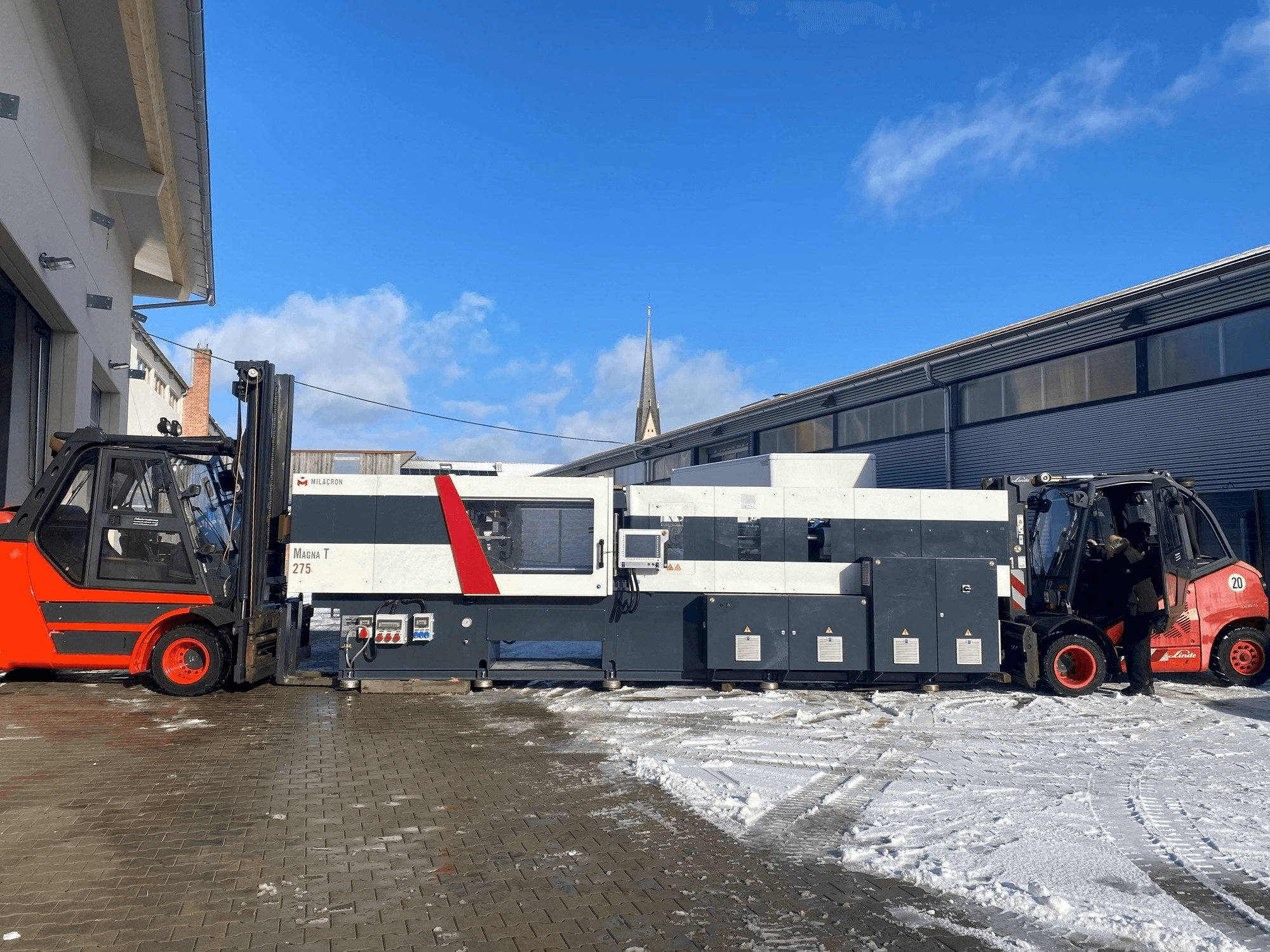

Front view of Milacron Magna T (MTs) - 275 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK Magna T (MTs) - 275

Photo Gallery

FERROMATIK - Magna T (MTs) - 275DE-INJ-FER-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Ferromatik Milacron Magna T (MTs) - 275 Injection Moulding Machine

This FERROMATIK Magna T (MTs) - 275 Injection Moulding Machine was made in the year 2018. It has a clamping force of 2750 kN and a column spacing of 660 x 660 mm. Max. plate distance is 1560 mm and mould installation height 400 - 950 mm. The opening stroke is at 610 mm. This injection moulding machine is equipped with a ENDURA touch control and a 1540 injection unit with 50mm screw diameter. It comes with 2x hydraulic core pullers (2-fold). See full original tech specs as PDF (DE) attached. Automation solution can be purchased additionally upon request.

Overview

brand: FERROMATIK
year: 2018
MODEL: Magna T (MTs) - 275
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - FERROMATIK Magna T (MTs) - 275

General Data

Machine weight: 14680 kg

Control Unit

Model: ENDURA touch
CNC main language: German, English

Injection Unit

Screw diameter: 50 mm

Clamping unit

Clamping force: 2750 kN
Opening stroke: 610 mm
Max open daylight: 660 x 660 mm
Distance between bars: 1560 mm
Mould height min: 400 mm
Mould height max: 950 mm

Media

Main electronic connection: 400 V AC

Additional Information

Machine Benefits

Qualitative Machine Benefits

Ejector or core pull can be moved in parallel via closing movement via separate pump
Control system siemens s7 / kuka
Injection unit 1540 / screw diameter 50mm / standard 3-zone screws aps
Bimetallic screw cylinder type x 102 / hydraulic core pull 2-fold / cooling water battery with 10 control circuits
Sar automation: dimensions 6000 x 5000 x 3000 mm
Provision of inserts bushing diameter 11x6mm
Combined provision of inserts diameter 8x3mm and 6x3mm
Marking laser for dmc
Component slide laser / sprue funnel / qs drawer
Stack conveyor system with lifting unit : conveyor belt 1: length 3200mm / width 1300mm / speed 6m/min // conveyor belt 2: length 2400mm / width 1300mm / speed 6m/min

Technical Machine Benefits

Injection unit 1540 in horizontal machine length axis with screw diameter 50 mm
2x hydraulic core pullers (2-fold)
Thermoplastic equipment: bimetallic screw cylinder type: x 102
Standard 3-zone screw aps with improved abrasive wear protection
Cooling water battery with 10 control circuits
Clamping force 2750 kn / plate distance max. 1580 mm
Clear column distance 660 x 660 mm / mold installation height minimum 400 max 950 mm
Mold opening stroke 610 mm / robust mono toggle lever for 50 tons and 80 tons
Lifting unit: length 1000mm / width 1300mm / speed 6m/min / stroke approx. 450mm max. / load 150lg lifting / speed 2,5/min

Extra Information

Scope of delivery is machine without automation. The automation solution is not included in the price but is for sale at additional cost.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
