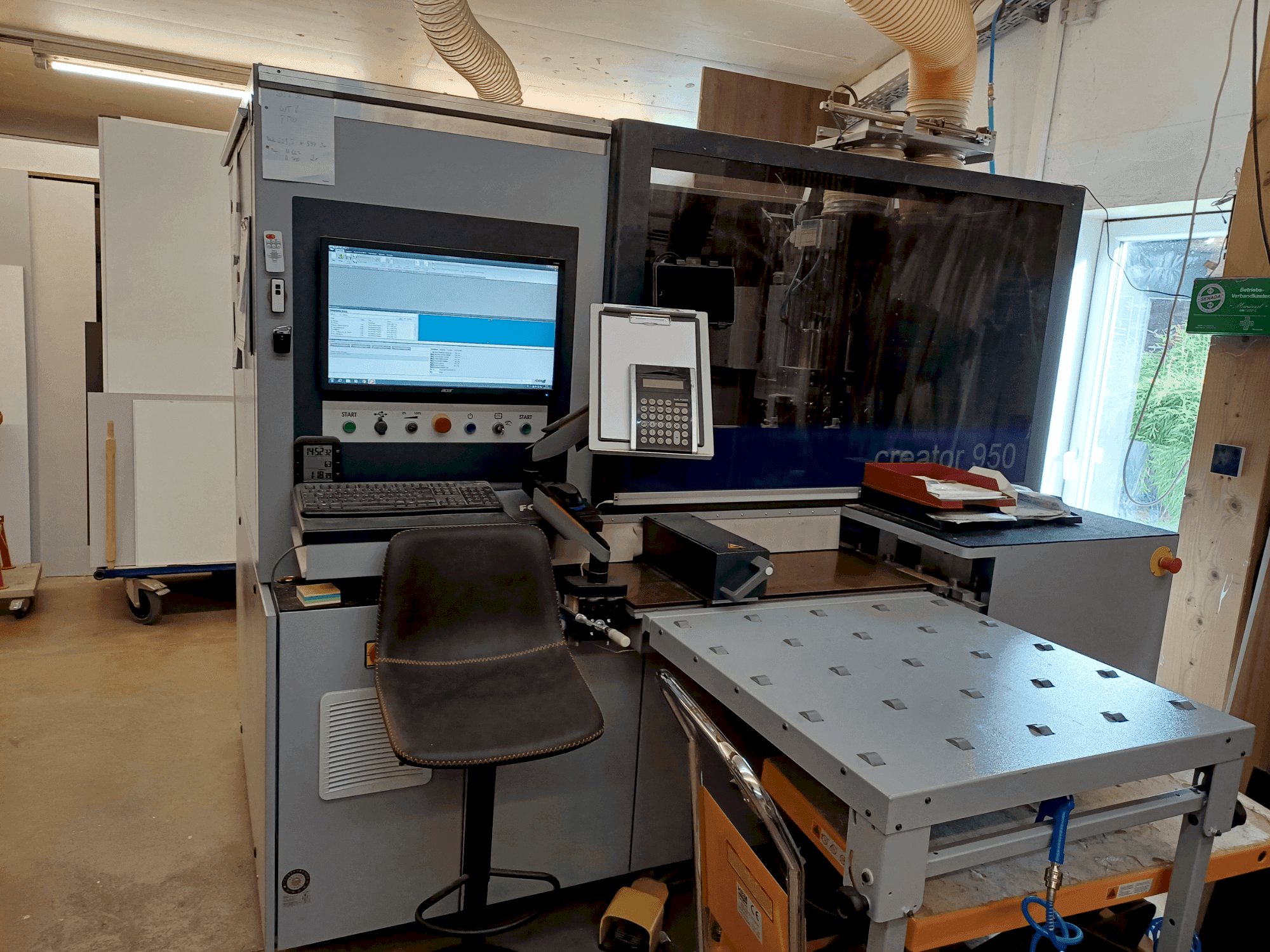

Front view of FORMAT4 CNC CREATOR 950  machine

FORMAT4 - CNC CREATOR 950DE-MIL-FOR-2019-00001

29,970 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This CNC Wood Machining Centre was manufactured in 2019. The FORMAT4 CNC CREATOR 950 features a robust frame with electro-welded shaped tubes and steel ribbing for enhanced stability. It boasts a 12 KW milling spindle, ceramic bearings, and a versatile drill head with 17 spindles. The support table is crafted from phenolic resin, optimizing large workpiece handling. Consider the opportunity to buy this FORMAT4 CNC CREATOR 950 CNC Wood Machining Centre. Contact us for more information about this machine.

Overview

  • brand: FORMAT4
  • year: 2019
  • MODEL: CNC CREATOR 950
  • application type: Milling (Wood)
  • Location: Germany
  • machine type: CNC Wood Machining Centre
  • availability: Immediately

Technical Information - FORMAT4 CNC CREATOR 950

Main drive

  • Spindle speed range: 24000 rpm 1/MIN
  • Spindle motor power: 12 KW
  • Tool taper: HSK F63

Movement

  • X-AXIS Movement: 1475 mm
  • Y-AXIS Movement: 1550 mm
  • Z-AXIS Movement: 225 mm

    Additional Equipment

    • - Electric creator 950 Advanced 3x400 V 50Hz / 60Hz.
    • - 4-fold linear changer for milling tools and units. Max tool diameter: 120 mm, Max tool length: 100 mm.
    • - Folding roller table (front + rear) for processing large workpieces.
    • - Second stop cylinder for workpieces larger than X: 1400 mm for easier handling of larger workpieces.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cnc throughfeed center with clamp drive in x-direction and fixed portal design in y-direction.
        • - Machine frame made of thick-walled, electro-welded shaped tubes with steel ribbing for high stability.
        • - Working field: x: 3500 mm y: 950 mm z: 80 mm
        • - Ceramic bearing with automatic height-adjustable suction hood
        • - Drill head dh 17 6h 1s: 11 vertical spindles, 6 horizontal spindles, 1 grooving saw in x direction
        • - Support table made of phenolic resin with a support of x: 1200 mm, y: 950 mm (front + rear).
        • - Short changeover times with sufficient space for tools.
        • - Simplified handling of larger workpieces.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
