HAAS VF-5 / 50HE
HAAS - VF-5 / 50HE
2007
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-5 / 50HE Vertical Machining Center

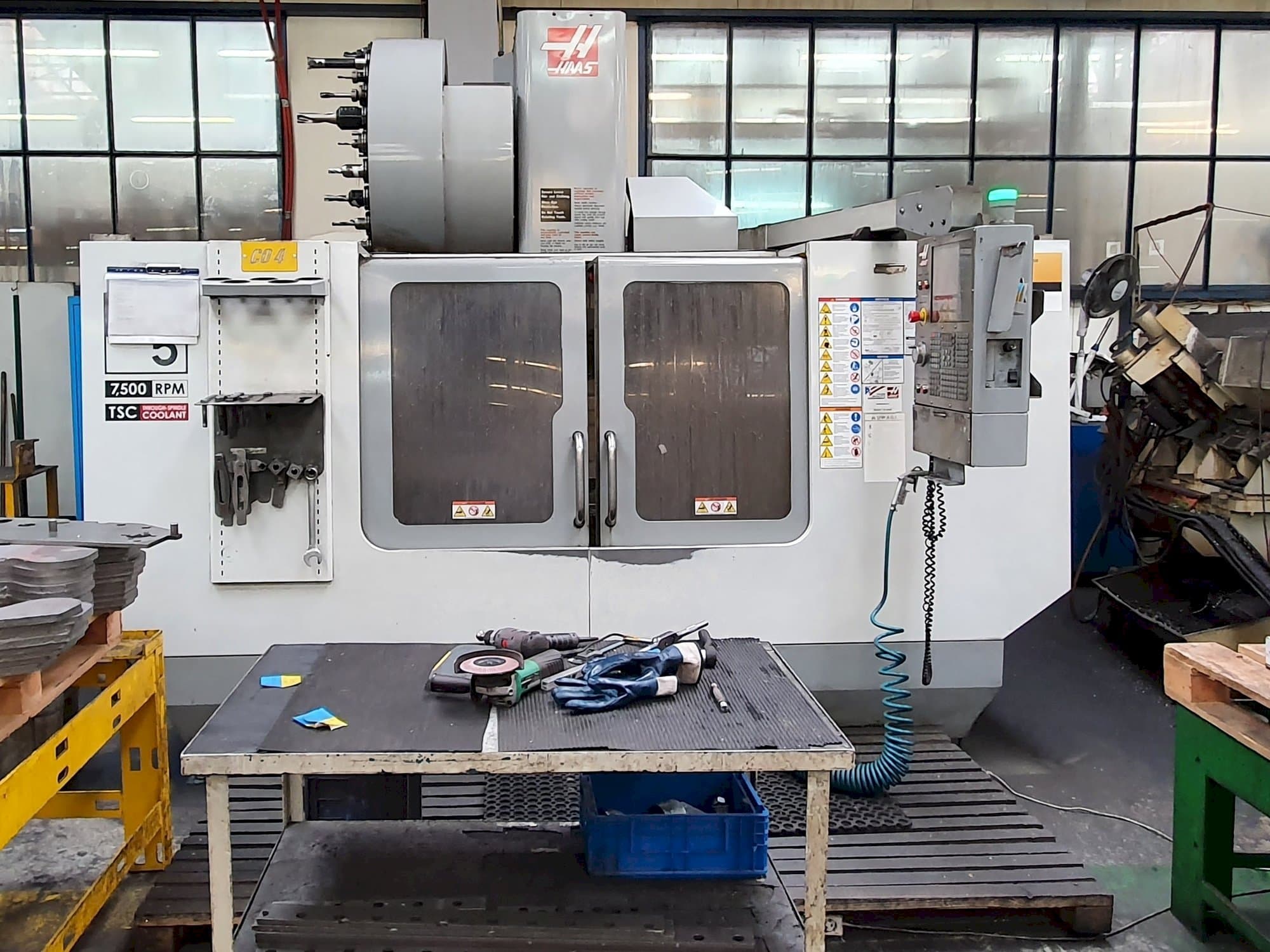

This HAAS VF-5 / 50HE Vertical Machining Center was built in the year 2007 in the United States. It has been working for 15604 hours since then. It is equipped with a HAAS control unit. This 3 axis machine can work with a spindle speed up to 7500 rpm. It presents very good working conditions, always serviced by HAAS agents.
Overview
- brand: HAAS
- year: 2007
- MODEL: VF-5 / 50HE
- production hours: 15604
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Haas
- GINDUMAC ID: PL-MIL-HAA-2007-00001
Technical Information
General Data
- Measurements width: 4270 mm
- Measurements depth: 2600 mm
- Measurements height: 3310 mm
- Machine weight: 7300 kg
Control Unit
- Brand: Haas
Main drive
- Spindle speed range: 7500 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 660 mm
- Z-AXIS Movement: 635 mm
Table
- Outer length: 1321 mm
- Outer width: 854 mm
Media
- Main electronic connection: 360-480V / 50Hz
Additional Information
- Technical Machine Benefits:
- - Tool storage: 30+1
- - Chip conveyor
- Qualitative Machine Benefits:
- - Serviced always by haas service
- - Very good working condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
